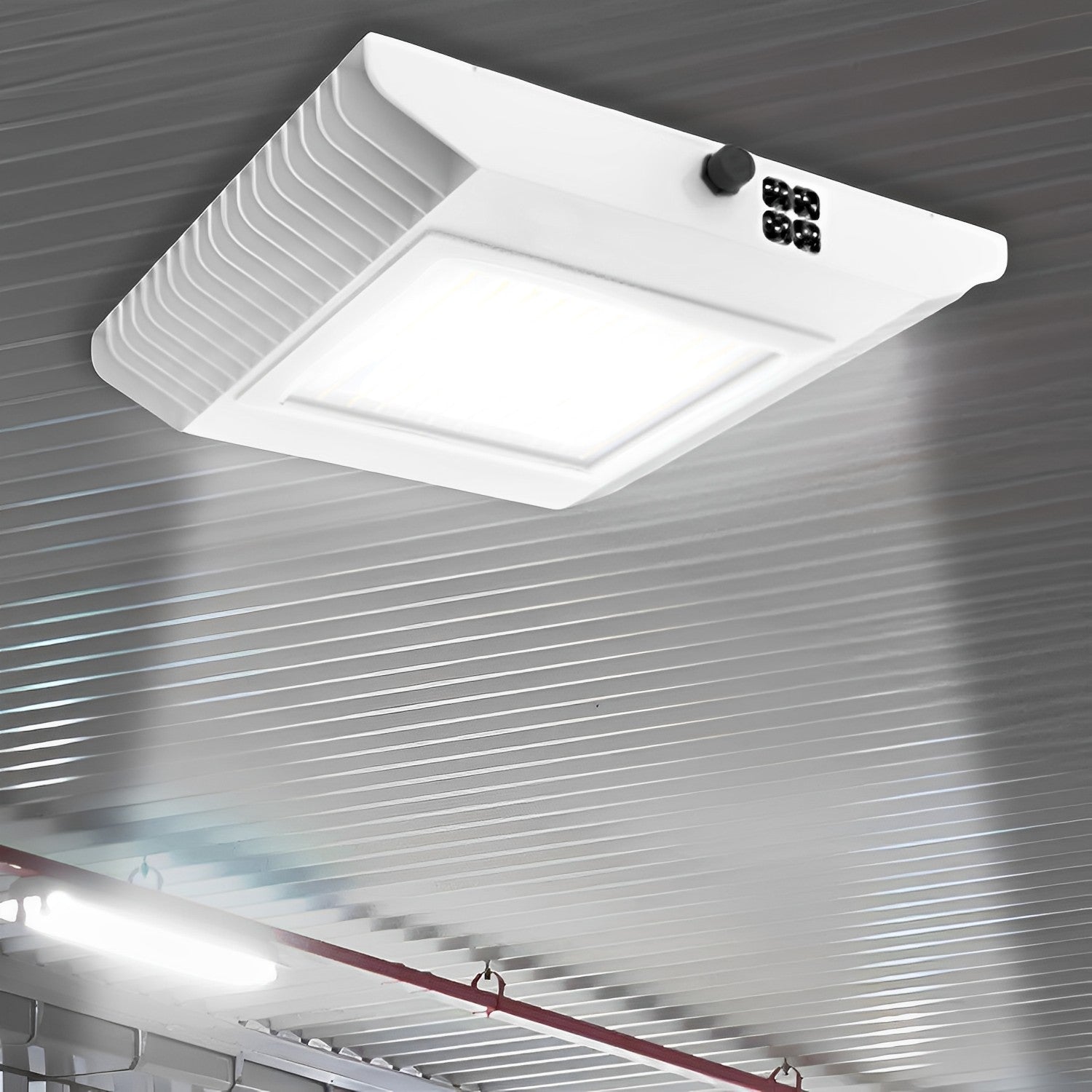

LED Canopy Light, 150W/120W/100W/80W, Selectable Wattage, 22650 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
Outdoor fuel pump LED Canopy with integrated LEDs ideal for gas stations and carports.
- 12080 / 15100 / 18120 / 22650 lumens
- 5000K Day Light color temperature
- Selectable wattage 80W / 100W / 120W / 150W
- Dimmable 0-10V range 10% - 100%
- IP65 rated / Wet rated
- Surface mount with J-Box or without J-Box
- DLC® 5.1
Recommended Application
- Parking structures
- Gas stations
- Carports
Outdoor fuel pump LED Canopy with integrated LEDs ideal for gas stations and carports.
- 12080 / 15100 / 18120 / 22650 lumens
- 5000K Day Light color temperature
- Selectable wattage 80W / 100W / 120W / 150W
- Dimmable 0-10V range 10% - 100%
- IP65 rated / Wet rated
- Surface mount with J-Box or without J-Box
- DLC® 5.1
Recommended Application
- Parking structures
- Gas stations
- Carports
Overview
Outdoor fuel pump LED Canopy with integrated LEDs ideal for gas stations and carports.
- 12080 / 15100 / 18120 / 22650 lumens
- 5000K Day Light color temperature
- Selectable wattage 80W / 100W / 120W / 150W
- Dimmable 0-10V range 10% - 100%
- IP65 rated / Wet rated
- Surface mount with J-Box or without J-Box
- DLC® 5.1
Recommended Application
- Parking structures
- Gas stations
- Carports
Details
● RELIABLE WEATHERPROOFING - The IP65 weatherproof rating ensures our LED Canopy can stand up to the elements. Sealed housing for outdoor spaces such as building entry ways and walkways, pathways and permiter lighting.
● COMMERCIAL GRADE - Energy efficiency.
● CERTIFIED - Enjoy a consistent high output light backed by DLC, ETL and RoHS certificates.
● DIMMABLE
● BENEFITS - 5-Year Manufacturer Warranty.
Specifications
| LED Canopy Light, 150W/120W/100W/80W, Selectable Wattage, 22650 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 12080 - 22650LM |
| Wattage | 80W / 100W / 120W / 150W |
| Voltage | 120-277V |
| Operating Temperature | -40°F-104°F |
| Dimmable | Dimmable |
| Dimming Details | 0-10V Dimming |
| Color Temperature | 5000K |
| CRI | 70+ |
| Beam Angle | 100°x100° |
| IP Rating | IP65 |
| Moisture Rating | Wet Rated |
| J-Box Included | No |
| Power Type | Hardwired |
| Mount Type | Ceiling |
| Working Time | 50,000 Hours |
| Housing | Aluminum Alloy |
| Material | Aluminum Alloy / Clear Glass Lens |
| Certifications | DLC |
| Switching Cycles | 50,000 |
| Lifetime | 50,000 Hours |
| Warranty | 5-Year Manufacturer's Warranty |
