3-Louver Brick Step Light, Recessed, 9 Inch, White, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

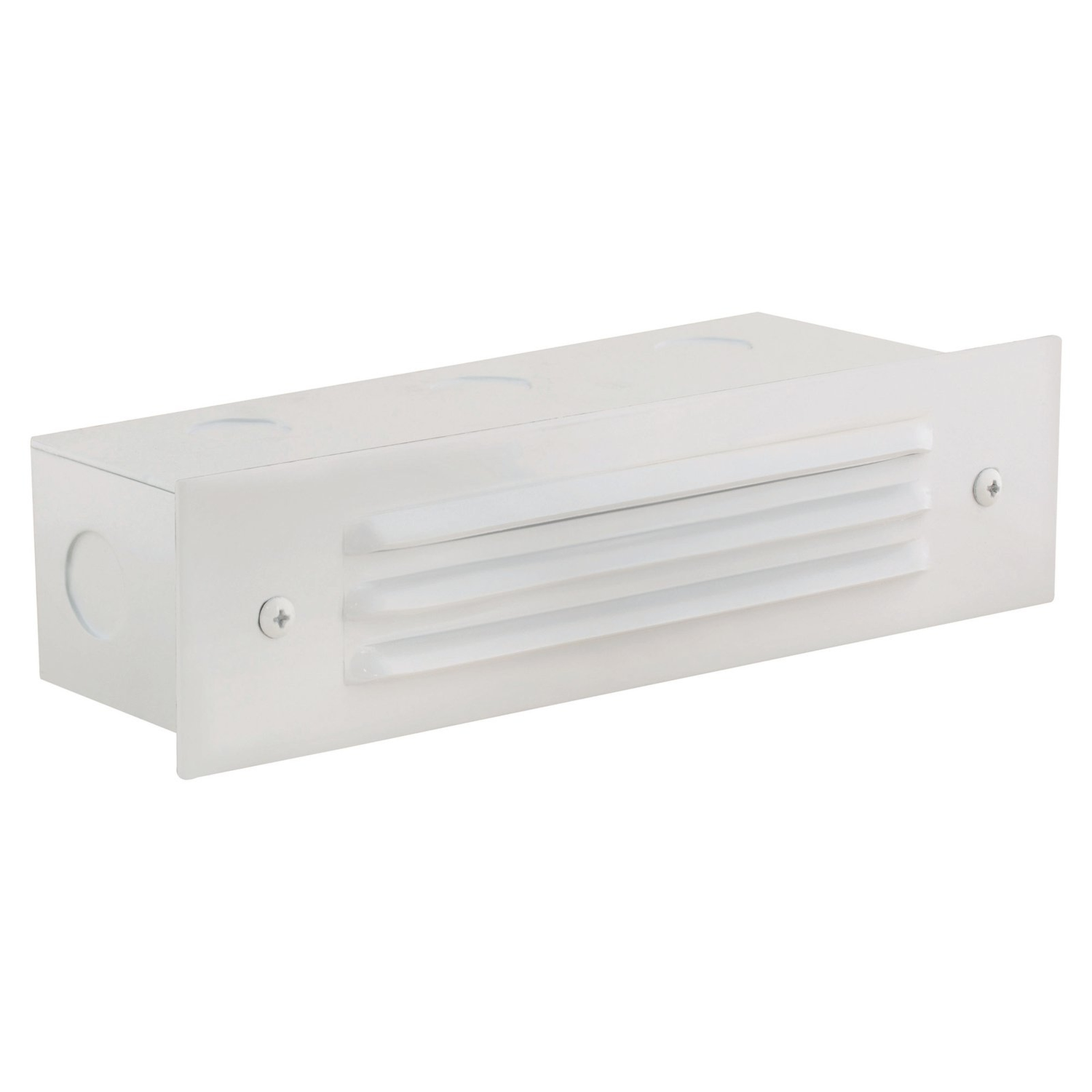

This White 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver recessed brick and step light for concrete, brick, and masonry installations
- Aluminum faceplate with polyester UV powder coat in white and a silicone gasket sealing the faceplate to the housing
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT inlets
- Faceplate: 9" W x 2.25" H
- Double SCB (double S.C. bayonet) sockets attached to an aluminum reflector; compatible with 12V SCB lamps, up to 27W max (halogen)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour life, 35W equivalent
- Prewired with direct-burial cord
- Requires a remote 12V transformer; operating voltage 8–21V
- Available in black, bronze, rust, and white finishes
- Five-year warranty on fixture housing and five-year manufacturer lamp warranty
This White 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver recessed brick and step light for concrete, brick, and masonry installations
- Aluminum faceplate with polyester UV powder coat in white and a silicone gasket sealing the faceplate to the housing
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT inlets
- Faceplate: 9" W x 2.25" H
- Double SCB (double S.C. bayonet) sockets attached to an aluminum reflector; compatible with 12V SCB lamps, up to 27W max (halogen)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour life, 35W equivalent
- Prewired with direct-burial cord
- Requires a remote 12V transformer; operating voltage 8–21V
- Available in black, bronze, rust, and white finishes
- Five-year warranty on fixture housing and five-year manufacturer lamp warranty
Overview
This White 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver recessed brick and step light for concrete, brick, and masonry installations
- Aluminum faceplate with polyester UV powder coat in white and a silicone gasket sealing the faceplate to the housing
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT inlets
- Faceplate: 9" W x 2.25" H
- Double SCB (double S.C. bayonet) sockets attached to an aluminum reflector; compatible with 12V SCB lamps, up to 27W max (halogen)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour life, 35W equivalent
- Prewired with direct-burial cord
- Requires a remote 12V transformer; operating voltage 8–21V
- Available in black, bronze, rust, and white finishes
- Five-year warranty on fixture housing and five-year manufacturer lamp warranty
Specifications
| 3-Louver Brick Step Light, Recessed, 9 Inch, White, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | White |
| Material | Aluminum faceplate with polyester UV powder coat; galvanized steel recessed back box; silicone gasket sealed lens |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
