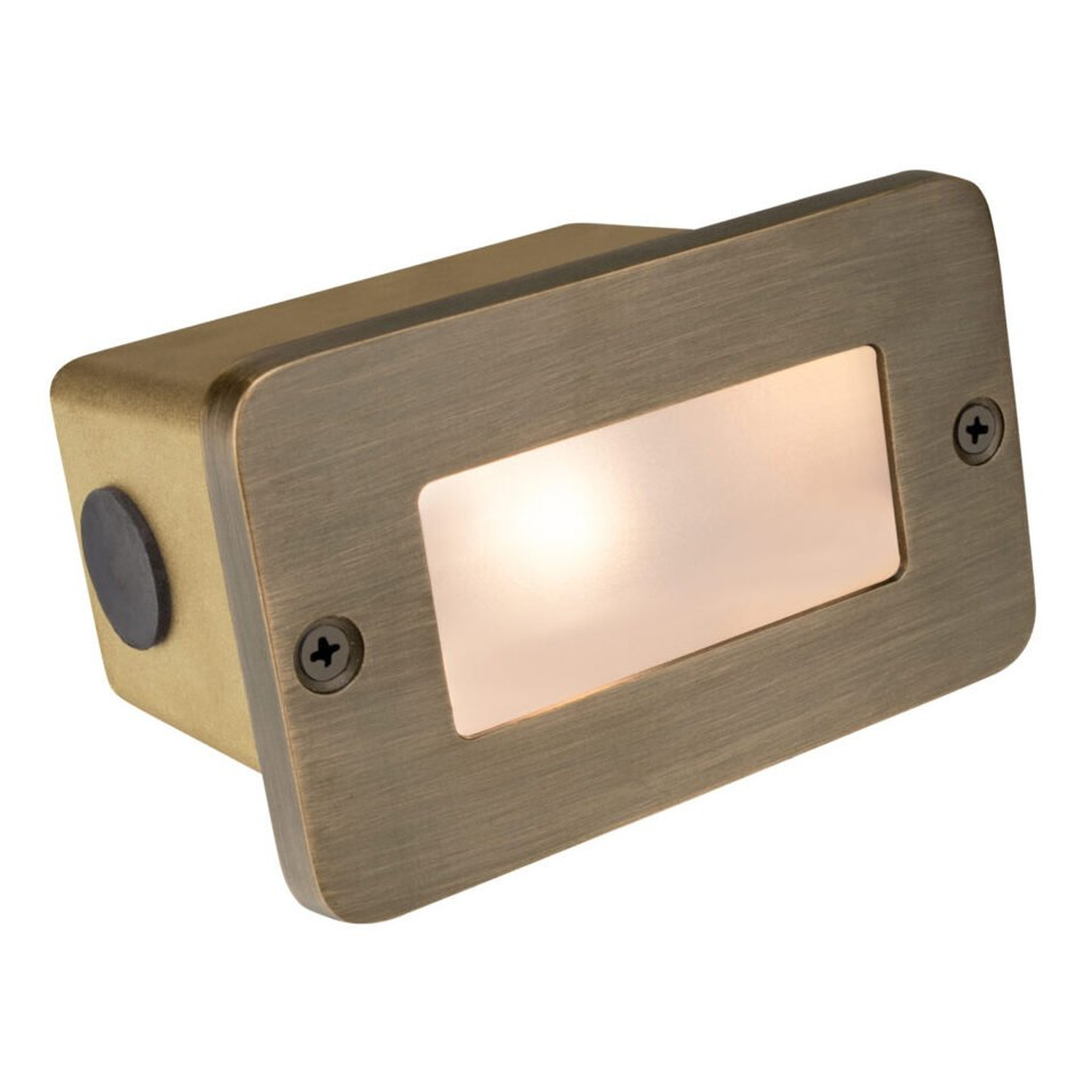

Brass Glass Lens Step Light, Recessed, 5-1/8 Inch, Antique Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Antique Bronze brass lensed step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- Architectural-grade solid brass boxed step light for concrete, brick, and masonry applications
- Antique Bronze finish
- Heavy-duty, corrosion-resistant cast brass housing with die-cast brass faceplate
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Bayonet (SCB) socket; prewired with 12 Inch direct-burial cord
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, dimmable, 25,000-hour rated life; 35W halogen equivalent
- LED operating voltage range 8–21V; remote 12V transformer required
- Recessed-mount back box with three 1/2 Inch NPT inlets; surface-mount option supplied
- Faceplate: 5-1/8 Inch W x 3-1/8 Inch H; body depth approx 2-1/8 Inch
- Limited lifetime warranty on fixture housing and faceplate; 5-year manufacturer warranty on lamp
This Antique Bronze brass lensed step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- Architectural-grade solid brass boxed step light for concrete, brick, and masonry applications
- Antique Bronze finish
- Heavy-duty, corrosion-resistant cast brass housing with die-cast brass faceplate
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Bayonet (SCB) socket; prewired with 12 Inch direct-burial cord
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, dimmable, 25,000-hour rated life; 35W halogen equivalent
- LED operating voltage range 8–21V; remote 12V transformer required
- Recessed-mount back box with three 1/2 Inch NPT inlets; surface-mount option supplied
- Faceplate: 5-1/8 Inch W x 3-1/8 Inch H; body depth approx 2-1/8 Inch
- Limited lifetime warranty on fixture housing and faceplate; 5-year manufacturer warranty on lamp
Overview
This Antique Bronze brass lensed step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- Architectural-grade solid brass boxed step light for concrete, brick, and masonry applications
- Antique Bronze finish
- Heavy-duty, corrosion-resistant cast brass housing with die-cast brass faceplate
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Bayonet (SCB) socket; prewired with 12 Inch direct-burial cord
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, dimmable, 25,000-hour rated life; 35W halogen equivalent
- LED operating voltage range 8–21V; remote 12V transformer required
- Recessed-mount back box with three 1/2 Inch NPT inlets; surface-mount option supplied
- Faceplate: 5-1/8 Inch W x 3-1/8 Inch H; body depth approx 2-1/8 Inch
- Limited lifetime warranty on fixture housing and faceplate; 5-year manufacturer warranty on lamp
Specifications
| Brass Glass Lens Step Light, Recessed, 5-1/8 Inch, Antique Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5-1/8" W x 3-1/8" H; Body D Approx. 2-1/8" |
| Finish | Antique Bronze |
| Material | Cast brass housing; die-cast brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing and faceplate, 5-Year Manufacturer's Warranty on lamp |
