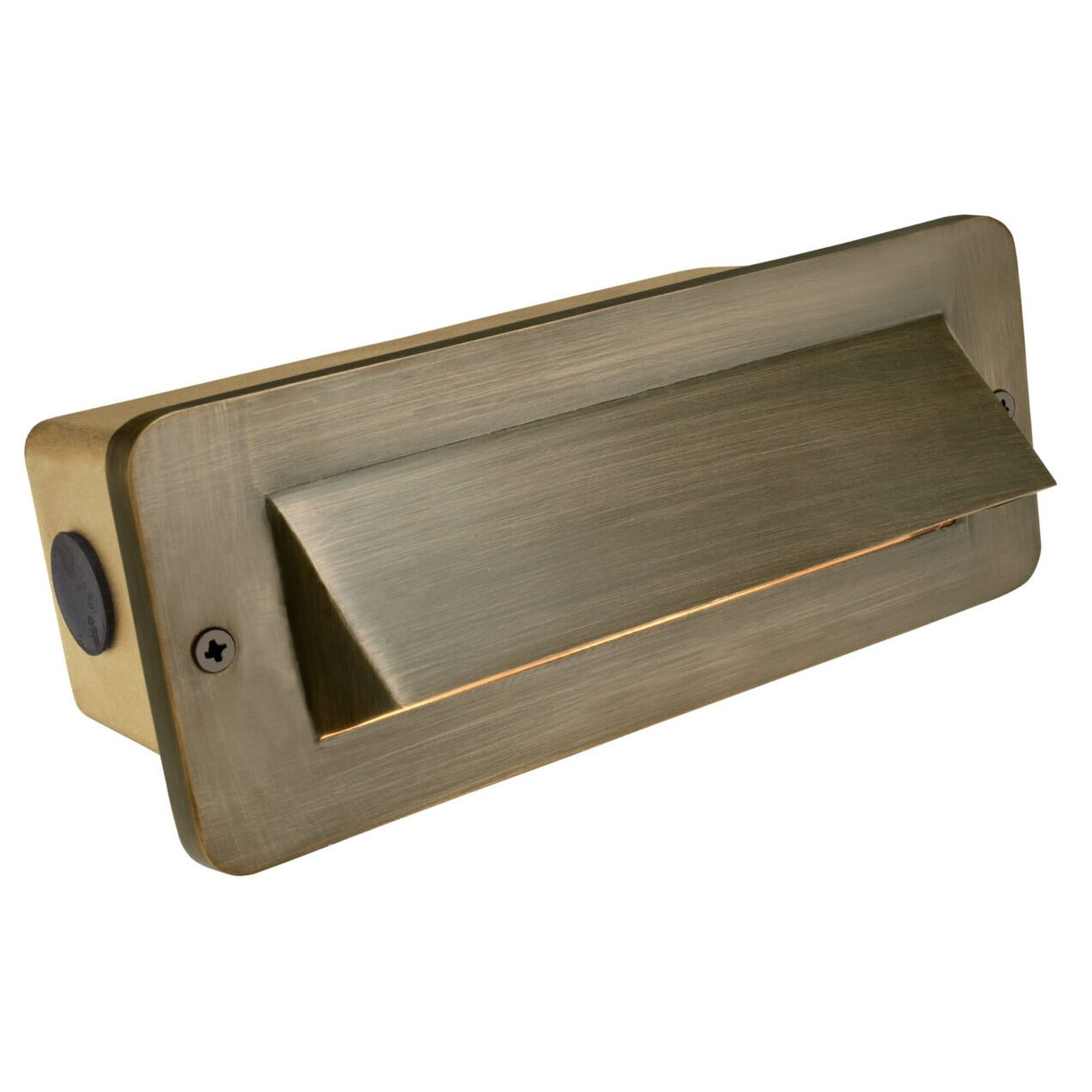

Brass Hooded Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Antique Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Antique Bronze brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Antique Bronze step/brick light; 1-louver boxed architectural grade
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate; silicone gasket
- Faceplate dimensions: 8-1/4" W x 3-1/4" H
- Frosted heat-resistant glass lens; weather-tight silicone gasket
- Pre-wired with 3 ft 18-2 SPT1-W direct-burial cord; recessed mount back box for concrete or masonry; faceplate surface-mounts to box
- Two SCB sockets; remote 12V transformer required; LED lamp voltage range 8–21V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white; 35W halogen equivalent; dimmable; rated life 25,000 hours
This Antique Bronze brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Antique Bronze step/brick light; 1-louver boxed architectural grade
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate; silicone gasket
- Faceplate dimensions: 8-1/4" W x 3-1/4" H
- Frosted heat-resistant glass lens; weather-tight silicone gasket
- Pre-wired with 3 ft 18-2 SPT1-W direct-burial cord; recessed mount back box for concrete or masonry; faceplate surface-mounts to box
- Two SCB sockets; remote 12V transformer required; LED lamp voltage range 8–21V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white; 35W halogen equivalent; dimmable; rated life 25,000 hours
Overview
This Antique Bronze brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Antique Bronze step/brick light; 1-louver boxed architectural grade
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate; silicone gasket
- Faceplate dimensions: 8-1/4" W x 3-1/4" H
- Frosted heat-resistant glass lens; weather-tight silicone gasket
- Pre-wired with 3 ft 18-2 SPT1-W direct-burial cord; recessed mount back box for concrete or masonry; faceplate surface-mounts to box
- Two SCB sockets; remote 12V transformer required; LED lamp voltage range 8–21V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white; 35W halogen equivalent; dimmable; rated life 25,000 hours
Specifications
| Brass Hooded Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Antique Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | 8-1/4" W x 3-1/4" H |
| Finish | Antique Bronze |
| Material | Heavy-duty, corrosion-resistant cast brass |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years limited warranty on LED module |
