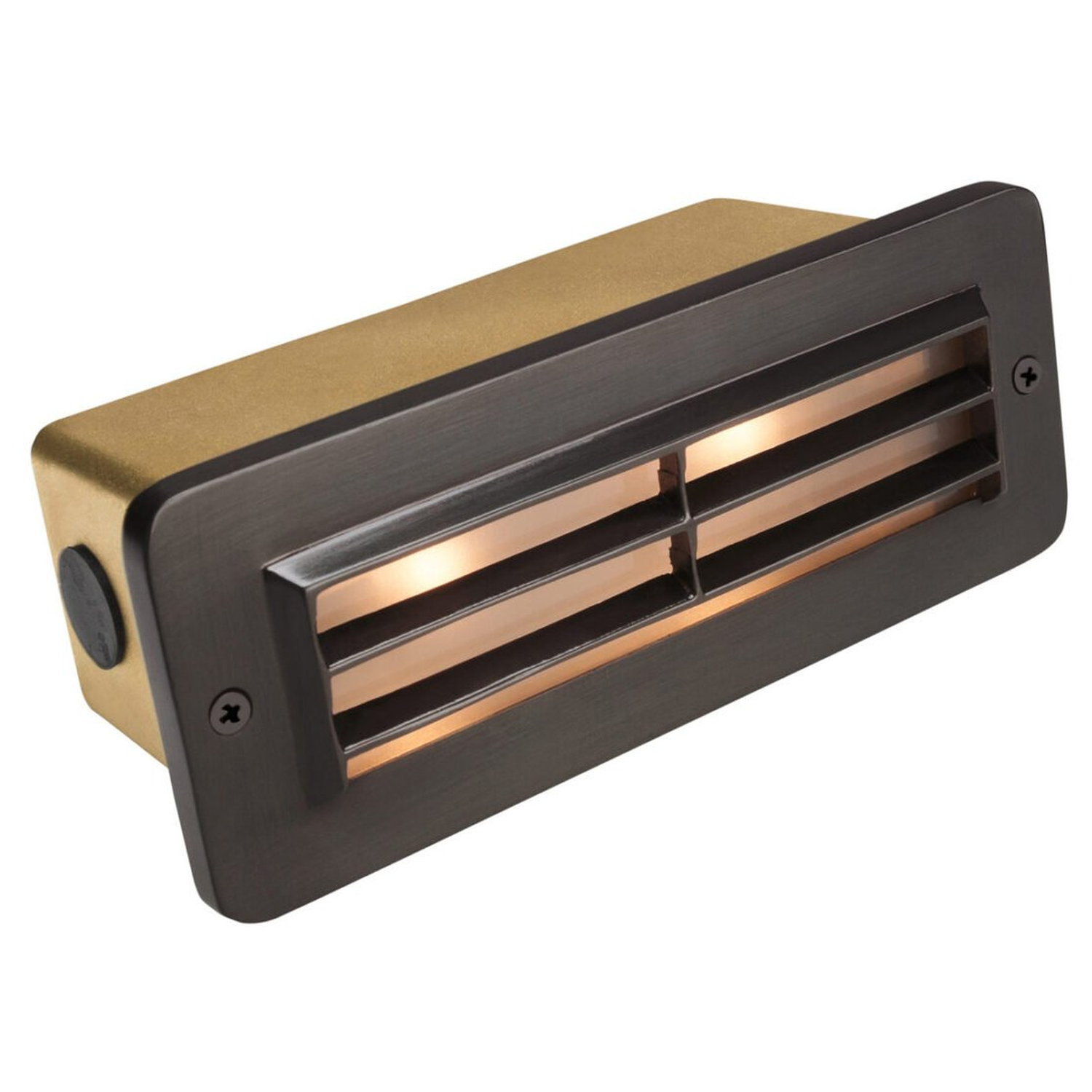

Brass 3-Louver Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louvered solid brass step/brick light in Gun Metal finish
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass 3-louver faceplate
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Faceplate: 8-1/4" W x 3-1/4" H; ship weight 4 lb
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Requires a remote 12V transformer
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour lifespan; dimmable; efficacy 96 Lumens/W; CRI 80
- Lamp sockets: two Single Contact Bayonet (SCB), 12V, 27W max halogen rating
- Limited lifetime warranty on fixture housing and faceplate; 5-year manufacturer warranty on lamps
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louvered solid brass step/brick light in Gun Metal finish
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass 3-louver faceplate
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Faceplate: 8-1/4" W x 3-1/4" H; ship weight 4 lb
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Requires a remote 12V transformer
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour lifespan; dimmable; efficacy 96 Lumens/W; CRI 80
- Lamp sockets: two Single Contact Bayonet (SCB), 12V, 27W max halogen rating
- Limited lifetime warranty on fixture housing and faceplate; 5-year manufacturer warranty on lamps
Overview
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louvered solid brass step/brick light in Gun Metal finish
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass 3-louver faceplate
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Faceplate: 8-1/4" W x 3-1/4" H; ship weight 4 lb
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Requires a remote 12V transformer
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour lifespan; dimmable; efficacy 96 Lumens/W; CRI 80
- Lamp sockets: two Single Contact Bayonet (SCB), 12V, 27W max halogen rating
- Limited lifetime warranty on fixture housing and faceplate; 5-year manufacturer warranty on lamps
Specifications
| Brass 3-Louver Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 8-1/4" W x 3-1/4" H |
| Finish | Gun Metal |
| Material | Corrosion-resistant cast brass housing and die-cast brass 3-louver faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing and faceplate and 5-Year manufacturer warranty for lamps |
