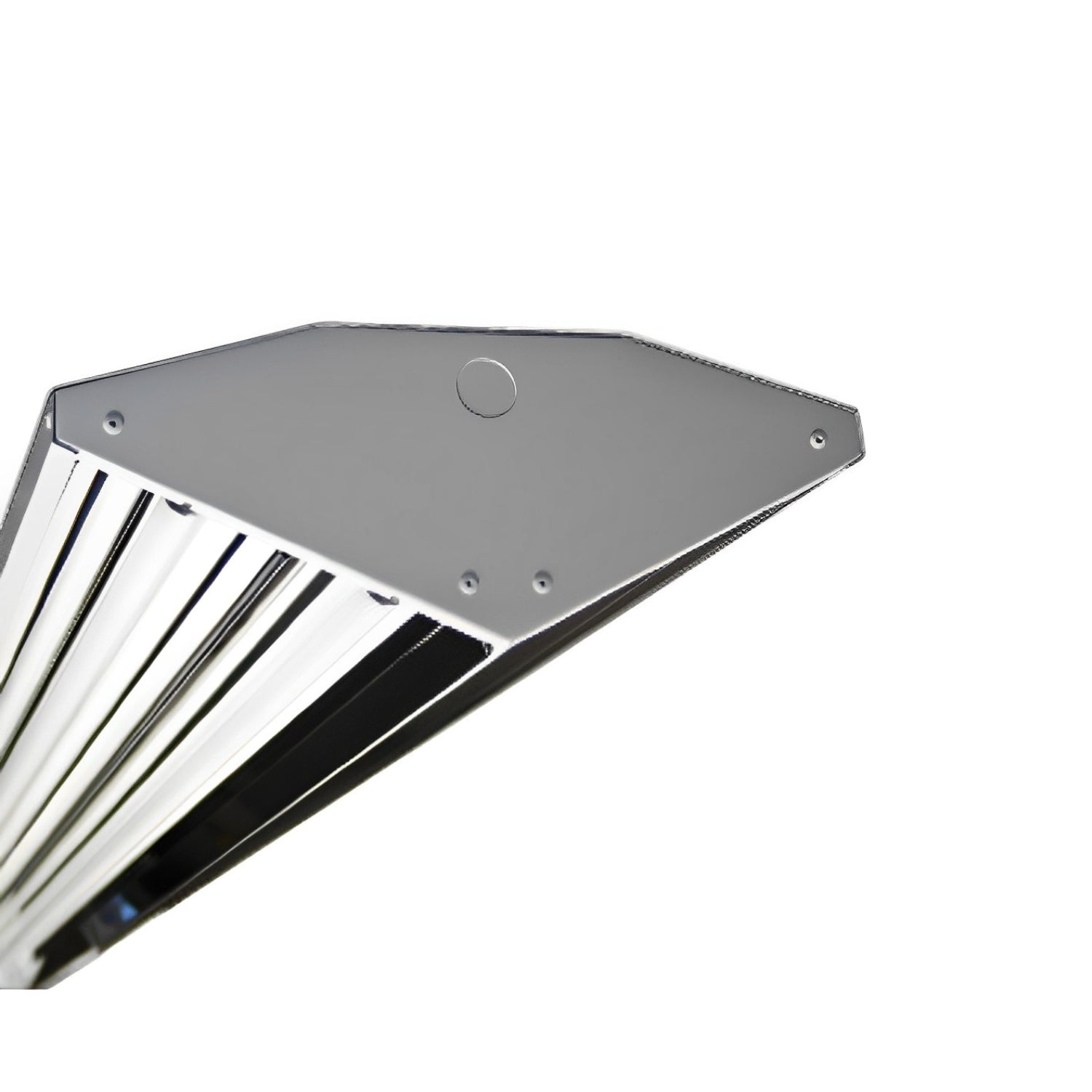

LED T8 Ready Diamond High Bay Fixture, 4-Lamp, Non-Shunted, Single/Double Ended
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
Upgrade your traditional fluorescent fixtures to the energy-efficient LED Ready Diamond High Bay Fixture. It features non-shunted sockets for easy installation and comes with pre-wired at both ends for added convenience. With its compatibility with both single-end and double-end direct wire lamps, this light fixture can be used with a wide range of LED lamps which gives you flexibility in lighting options. Make the smart choice for advanced LED technology—brighter, durable, and better replacement!
Features
- Operates (4) 4ft T8 LED Tubes *sold separately
- Works with both single-end and double-end direct wire lamps
- LED ready with non-shunted sockets
- Corrosion-resistant 22 Gauge C.R.S housing for durability; high gloss baked white enamel finish for withstanding heat
- Pre-wired for a quick and easy installation
- V-hooks & 41.3” chains included
- UL certified
*Compatible T8 LED Tubes are not included
Recommended Applications
- Offices
- Warehouses
- Retail stores
- Basements
- Garages
- Hospitals
- Schools
- Commercial buildings and work areas
Upgrade your traditional fluorescent fixtures to the energy-efficient LED Ready Diamond High Bay Fixture. It features non-shunted sockets for easy installation and comes with pre-wired at both ends for added convenience. With its compatibility with both single-end and double-end direct wire lamps, this light fixture can be used with a wide range of LED lamps which gives you flexibility in lighting options. Make the smart choice for advanced LED technology—brighter, durable, and better replacement!
Features
- Operates (4) 4ft T8 LED Tubes *sold separately
- Works with both single-end and double-end direct wire lamps
- LED ready with non-shunted sockets
- Corrosion-resistant 22 Gauge C.R.S housing for durability; high gloss baked white enamel finish for withstanding heat
- Pre-wired for a quick and easy installation
- V-hooks & 41.3” chains included
- UL certified
*Compatible T8 LED Tubes are not included
Recommended Applications
- Offices
- Warehouses
- Retail stores
- Basements
- Garages
- Hospitals
- Schools
- Commercial buildings and work areas
Overview
Upgrade your traditional fluorescent fixtures to the energy-efficient LED Ready Diamond High Bay Fixture. It features non-shunted sockets for easy installation and comes with pre-wired at both ends for added convenience. With its compatibility with both single-end and double-end direct wire lamps, this light fixture can be used with a wide range of LED lamps which gives you flexibility in lighting options. Make the smart choice for advanced LED technology—brighter, durable, and better replacement!
Features
- Operates (4) 4ft T8 LED Tubes *sold separately
- Works with both single-end and double-end direct wire lamps
- LED ready with non-shunted sockets
- Corrosion-resistant 22 Gauge C.R.S housing for durability; high gloss baked white enamel finish for withstanding heat
- Pre-wired for a quick and easy installation
- V-hooks & 41.3” chains included
- UL certified
*Compatible T8 LED Tubes are not included
Recommended Applications
- Offices
- Warehouses
- Retail stores
- Basements
- Garages
- Hospitals
- Schools
- Commercial buildings and work areas
Details
● 30% MORE EFFICIENT – This LED Ready High Bay Fixture uses less energy compared to traditional fluorescent fixtures. Try out this item for any indoor commercial application.
● COMMERCIAL GRADE - Energy efficiency. Suitable for chain mount installation.
● CERTIFIED - This LED light fixture is backed by UL standards.
● APPLICATIONS - Ideal for offices, hospitals, schools, warehouses, retail stores, and many more indoor commercial areas.
● BENEFITS - 2-year manufacturer's warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.
Specifications
| LED T8 Ready Diamond High Bay Fixture, 4-Lamp, Non-Shunted, Single/Double Ended Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Voltage | 120-277V |
| Operating Temperature | -4°F - 122°F |
| IP Rating | IP40 |
| Moisture Rating | Damp Rated |
| Bulb Base | G13 |
| Tombstone Type | Non-Shunted |
| Power (SEP/DEP) | Single or Double Ended Power |
| Included Components | V-Hooks & 41.3” Chains |
| Power Type | Hardwired |
| Mount Type | Hanging |
| Material | 22 Gauge C.R.S Housing + 86% MIRO4 Aluminum Reflector |
| Certifications | UL |
| Warranty | 2-Year Manufacturer's Warranty |
