Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

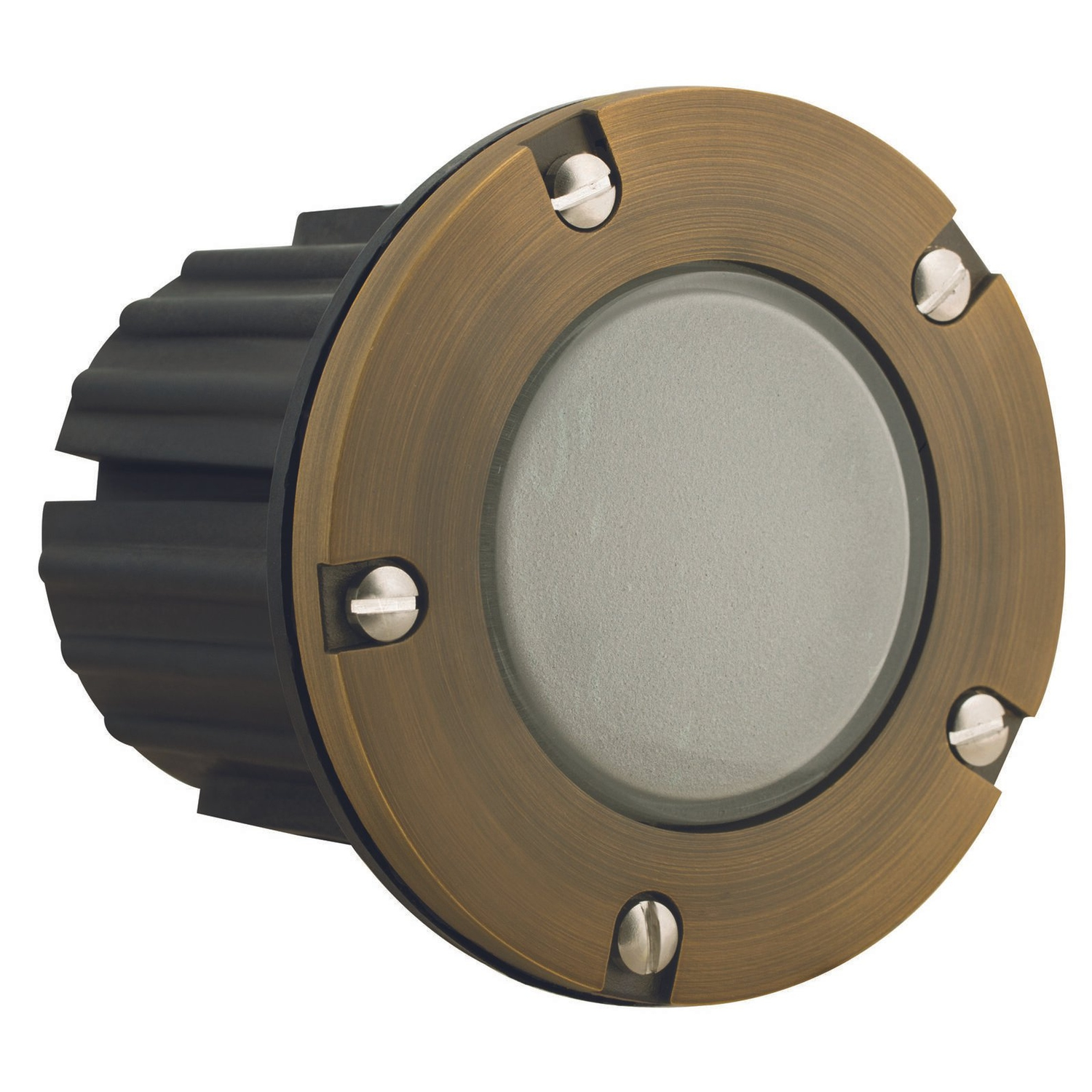

This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted heat-resistant flat glass lens and die-cast brass faceplate
- Includes MR16 LED lamp: 5W, 350 Lumens, 15° spot beam, CRI 80, rated 50,000 hours
- Operates on 9–17V; dimmable (remote 12V transformer required)
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Silicone O-ring seals faceplate to housing for weather-tight protection
- Injection-molded composite housing with high UV stability; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Surface mount option available; designed for recessed wall installation
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted heat-resistant flat glass lens and die-cast brass faceplate
- Includes MR16 LED lamp: 5W, 350 Lumens, 15° spot beam, CRI 80, rated 50,000 hours
- Operates on 9–17V; dimmable (remote 12V transformer required)
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Silicone O-ring seals faceplate to housing for weather-tight protection
- Injection-molded composite housing with high UV stability; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Surface mount option available; designed for recessed wall installation
Overview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted heat-resistant flat glass lens and die-cast brass faceplate
- Includes MR16 LED lamp: 5W, 350 Lumens, 15° spot beam, CRI 80, rated 50,000 hours
- Operates on 9–17V; dimmable (remote 12V transformer required)
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Silicone O-ring seals faceplate to housing for weather-tight protection
- Injection-molded composite housing with high UV stability; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Surface mount option available; designed for recessed wall installation
Specifications
| Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Antique Bronze |
| Material | Brass (die-cast brass faceplate) |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years limited warranty on LED module |
