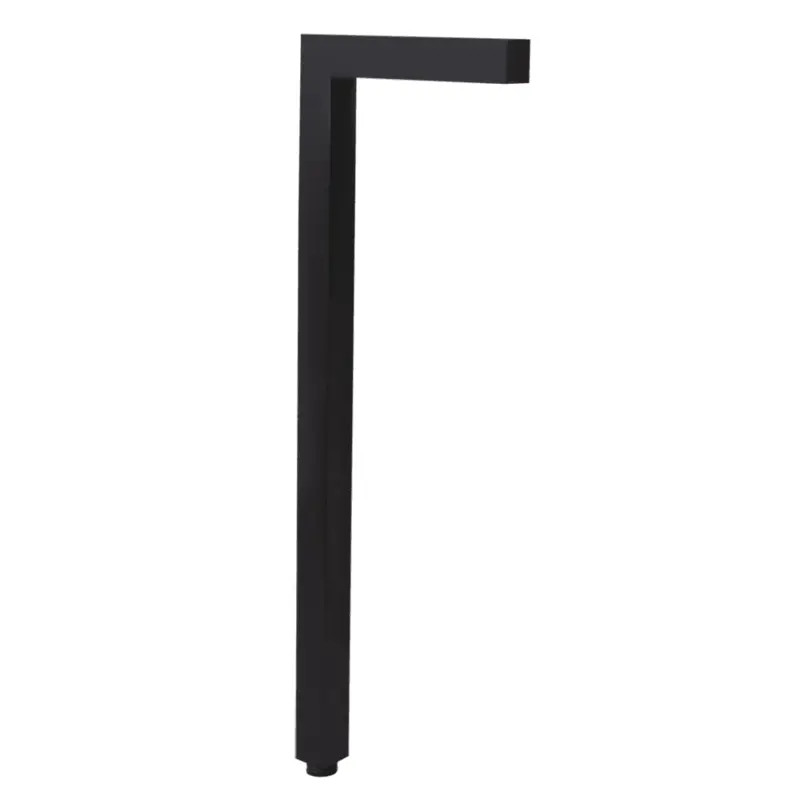

6 Inch Brass L-Shaped Path Light, Black, 240 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This L-shaped architectural path light is constructed from corrosion-resistant solid brass with a solid brass pipe and a 1/2 Inch NPT hub, finished in a sleek matte black. It includes a 2.5W T3 LED that delivers 240 Lumens with warm-white output and operates on 12V with an LED voltage range of 8–21V. The fixture is IP67 wet rated, dimmable, and prewired with 3 ft of 18-2 direct-burial cord for straightforward low-voltage installation. Measuring 6" W by 18 Inch tall with a 2 Inch mounting hub, it ships with a ground spike for tool-free placement. Ideal for lining garden paths and driveways to help guide foot traffic through outdoor spaces.
Features
-
- L-shaped modern path light in corrosion-resistant solid brass with solid brass pipe and 1/2" NPT bottom hub
- Includes T3 LED lamp: 2.5W, 250 Lumens, warm white, 25,000-hour life, ~35W halogen equivalent
- IP67 wet rated for exterior installations
- Low-voltage 12V system; LED operating voltage range 8–21V; dimmable; requires remote 12V transformer
- Prewired with 3 ft of 18-2 direct-burial cord; wire connector sold separately (CX-839 or CX-854 recommended)
- High-impact sandblasted, heat-resistant clear glass lens; extra frosted and linear lenses included
- Tool-free lamp access with top-grade fixed ceramic bi-pin socket
- Injection-molded ground spike mounting
- Dimensions: 6" W x 18" H; approx 8.5" projection; ~1" stem Dia
This L-shaped architectural path light is constructed from corrosion-resistant solid brass with a solid brass pipe and a 1/2 Inch NPT hub, finished in a sleek matte black. It includes a 2.5W T3 LED that delivers 240 Lumens with warm-white output and operates on 12V with an LED voltage range of 8–21V. The fixture is IP67 wet rated, dimmable, and prewired with 3 ft of 18-2 direct-burial cord for straightforward low-voltage installation. Measuring 6" W by 18 Inch tall with a 2 Inch mounting hub, it ships with a ground spike for tool-free placement. Ideal for lining garden paths and driveways to help guide foot traffic through outdoor spaces.
Features
-
- L-shaped modern path light in corrosion-resistant solid brass with solid brass pipe and 1/2" NPT bottom hub
- Includes T3 LED lamp: 2.5W, 250 Lumens, warm white, 25,000-hour life, ~35W halogen equivalent
- IP67 wet rated for exterior installations
- Low-voltage 12V system; LED operating voltage range 8–21V; dimmable; requires remote 12V transformer
- Prewired with 3 ft of 18-2 direct-burial cord; wire connector sold separately (CX-839 or CX-854 recommended)
- High-impact sandblasted, heat-resistant clear glass lens; extra frosted and linear lenses included
- Tool-free lamp access with top-grade fixed ceramic bi-pin socket
- Injection-molded ground spike mounting
- Dimensions: 6" W x 18" H; approx 8.5" projection; ~1" stem Dia
Overview
This L-shaped architectural path light is constructed from corrosion-resistant solid brass with a solid brass pipe and a 1/2 Inch NPT hub, finished in a sleek matte black. It includes a 2.5W T3 LED that delivers 240 Lumens with warm-white output and operates on 12V with an LED voltage range of 8–21V. The fixture is IP67 wet rated, dimmable, and prewired with 3 ft of 18-2 direct-burial cord for straightforward low-voltage installation. Measuring 6" W by 18 Inch tall with a 2 Inch mounting hub, it ships with a ground spike for tool-free placement. Ideal for lining garden paths and driveways to help guide foot traffic through outdoor spaces.
Features
-
- L-shaped modern path light in corrosion-resistant solid brass with solid brass pipe and 1/2" NPT bottom hub
- Includes T3 LED lamp: 2.5W, 250 Lumens, warm white, 25,000-hour life, ~35W halogen equivalent
- IP67 wet rated for exterior installations
- Low-voltage 12V system; LED operating voltage range 8–21V; dimmable; requires remote 12V transformer
- Prewired with 3 ft of 18-2 direct-burial cord; wire connector sold separately (CX-839 or CX-854 recommended)
- High-impact sandblasted, heat-resistant clear glass lens; extra frosted and linear lenses included
- Tool-free lamp access with top-grade fixed ceramic bi-pin socket
- Injection-molded ground spike mounting
- Dimensions: 6" W x 18" H; approx 8.5" projection; ~1" stem Dia
Specifications
| 6 Inch Brass L-Shaped Path Light, Black, 240 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240LM |
| Efficacy | 96LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Operating Temperature | -4°F to 104°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| IP Rating | IP67 |
| Moisture Rating | Wet Rated |
| Bulb Base | T3 |
| Included Components | LED |
| Mount Type | Ground Spike |
| Dimensions | 6" W x 18" H, Approx. 8-1/2" projection, Approx. 1" Stem Dia. |
| Finish | Black |
| Material | Solid brass |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime on fixture housing against manufacturer defects; Five (5) years Manufacturer's Warranty for LED module |
