LED River UFO High Bay Bi-Level PIR Sensor
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

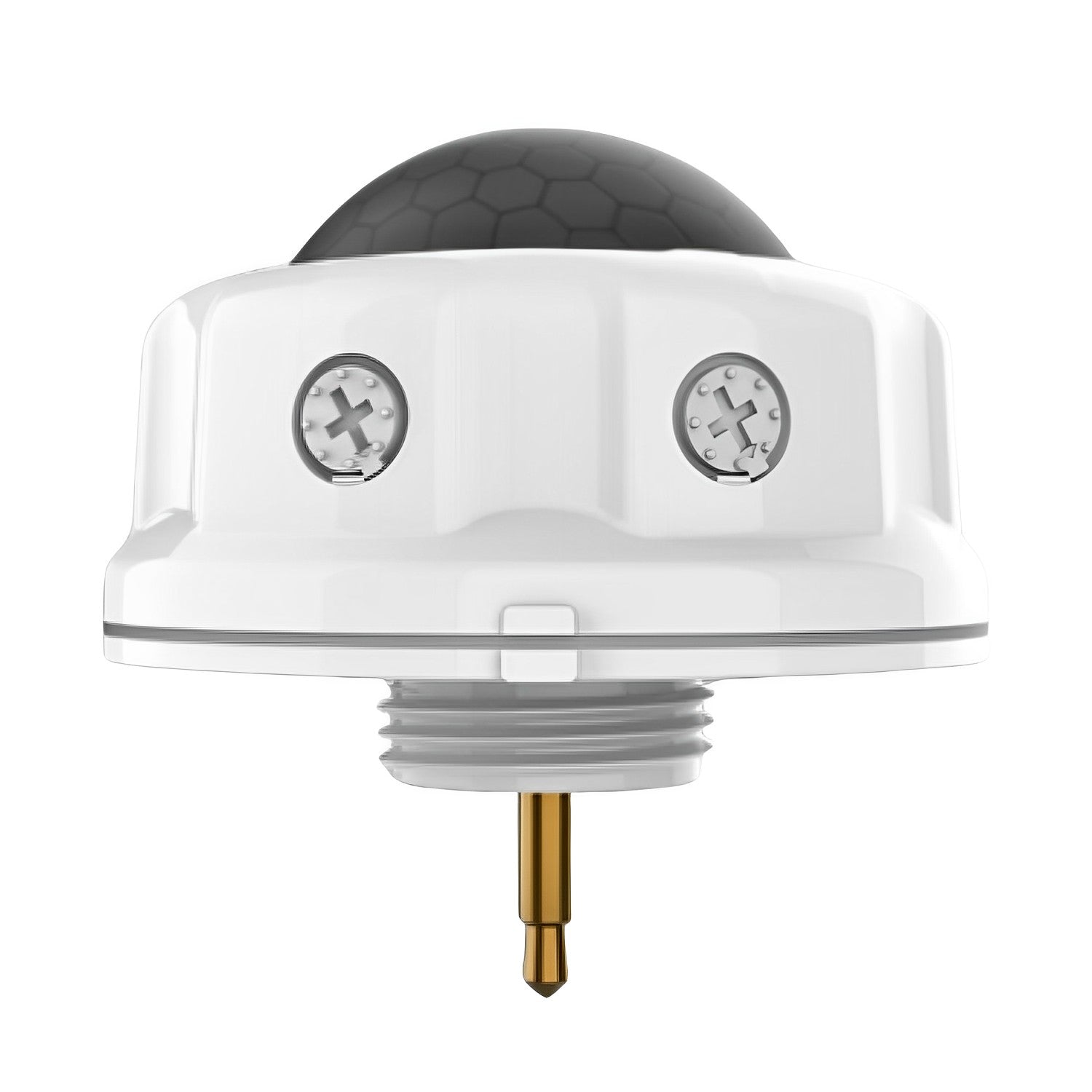

Enhance the efficiency and performance of your high bay lighting with the Passive Infrared (PIR) Motion Sensor. This advanced occupancy sensor controls on/off switching by detecting motion or presence within its range. Beyond its motion detection capabilities, it can also adjust the lighting based on ambient light changes. When the surrounding light exceeds the preset lux level, this smart sensor dims or turns off the high bay fixture. Ideal for large spaces such as warehouses and manufacturing facilities, it boasts a detection radius of 9.84-22.96 feet and can be mounted on ceilings up to 39 feet high. Plus, it is IP65 wet-rated to ensure reliable performance in various environmental conditions. Experience the benefits of intelligent lighting control with this ceiling motion sensor.
Features
- Provides on/off switching based on the motion/presence detected
- Equipped with daylight harvesting and photocell functions
- Radius 9.84-22.96ft (3-7m) detection distance
- 39ft (12m) max. ceiling mounting height
- IP65 wet rated 0-10V dimmable
- CE & RoHS Compliant
- 3-year manufacturer's warranty
- Easy dynamic control (*remote required)
- 49ft operation distance max
- Provides multi-level control based on motion and/or daylight contribution
- Controls and adjusts sensor's settings, such as stand-by time & dim, brightness, sensitivity, and more
Default sensor settings:
- Sensitivity: 100%
- Time: 5 seconds
- Light: Light Sensor disable
- Stand-by dimming level: 10%
- Stand-by time: 0 second
*Compatible remote sold separately
Compatible Fixtures
| SUN-SHB05-410W27V-50K-DAD | SUN-HB08-150W27V-DDKBAD2 |
| SUN-HB08-210W27V-DDKBAD2 |
Enhance the efficiency and performance of your high bay lighting with the Passive Infrared (PIR) Motion Sensor. This advanced occupancy sensor controls on/off switching by detecting motion or presence within its range. Beyond its motion detection capabilities, it can also adjust the lighting based on ambient light changes. When the surrounding light exceeds the preset lux level, this smart sensor dims or turns off the high bay fixture. Ideal for large spaces such as warehouses and manufacturing facilities, it boasts a detection radius of 9.84-22.96 feet and can be mounted on ceilings up to 39 feet high. Plus, it is IP65 wet-rated to ensure reliable performance in various environmental conditions. Experience the benefits of intelligent lighting control with this ceiling motion sensor.
Features
- Provides on/off switching based on the motion/presence detected
- Equipped with daylight harvesting and photocell functions
- Radius 9.84-22.96ft (3-7m) detection distance
- 39ft (12m) max. ceiling mounting height
- IP65 wet rated 0-10V dimmable
- CE & RoHS Compliant
- 3-year manufacturer's warranty
- Easy dynamic control (*remote required)
- 49ft operation distance max
- Provides multi-level control based on motion and/or daylight contribution
- Controls and adjusts sensor's settings, such as stand-by time & dim, brightness, sensitivity, and more
Default sensor settings:
- Sensitivity: 100%
- Time: 5 seconds
- Light: Light Sensor disable
- Stand-by dimming level: 10%
- Stand-by time: 0 second
*Compatible remote sold separately
Compatible Fixtures
| SUN-SHB05-410W27V-50K-DAD | SUN-HB08-150W27V-DDKBAD2 |
| SUN-HB08-210W27V-DDKBAD2 |
Overview
Enhance the efficiency and performance of your high bay lighting with the Passive Infrared (PIR) Motion Sensor. This advanced occupancy sensor controls on/off switching by detecting motion or presence within its range. Beyond its motion detection capabilities, it can also adjust the lighting based on ambient light changes. When the surrounding light exceeds the preset lux level, this smart sensor dims or turns off the high bay fixture. Ideal for large spaces such as warehouses and manufacturing facilities, it boasts a detection radius of 9.84-22.96 feet and can be mounted on ceilings up to 39 feet high. Plus, it is IP65 wet-rated to ensure reliable performance in various environmental conditions. Experience the benefits of intelligent lighting control with this ceiling motion sensor.
Features
- Provides on/off switching based on the motion/presence detected
- Equipped with daylight harvesting and photocell functions
- Radius 9.84-22.96ft (3-7m) detection distance
- 39ft (12m) max. ceiling mounting height
- IP65 wet rated 0-10V dimmable
- CE & RoHS Compliant
- 3-year manufacturer's warranty
- Easy dynamic control (*remote required)
- 49ft operation distance max
- Provides multi-level control based on motion and/or daylight contribution
- Controls and adjusts sensor's settings, such as stand-by time & dim, brightness, sensitivity, and more
Default sensor settings:
- Sensitivity: 100%
- Time: 5 seconds
- Light: Light Sensor disable
- Stand-by dimming level: 10%
- Stand-by time: 0 second
*Compatible remote sold separately
Compatible Fixtures
| SUN-SHB05-410W27V-50K-DAD | SUN-HB08-150W27V-DDKBAD2 |
| SUN-HB08-210W27V-DDKBAD2 |
Details
MOTION ACTIVATED
The convenient, easily installed Passive Infrared Motion Sensor detects movement to automate lighting in your warehouse, office building, parking facilities, gas stations, pathways, or other commercial spaces. Use this ceiling occupancy sensor to only illuminate when necessary.
INCREASE ENERGY SAVINGS
Attached occupancy motion sensor turns on your light only when you need it to reduce wattage consumption.
BENEFITS
3-year manufacturer's warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.
CERTIFICATIONS
We uphold the highest standards by testing each product for optimal performance and safety. This high bay motion sensor is CE & RoHS Compliant.
Specifications
| LED River UFO High Bay Bi-Level PIR Sensor Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Operating Temperature | -4°F - 140°F |
| Dimmable | Dimmable |
| Dimming Details | 0-10V Dimming |
| IP Rating | IP65 |
| Moisture Rating | Wet Rated |
| Motion Sensor | Yes |
| Sensor Details | See specification sheet for full details about motion detection. |
| Certifications | CE, RoHS Compliant |
| Warranty | 3-Year Manufacturer's Warranty |
