Choosing the Best Ceiling Panels and Troffers for Commercial Spaces

Choosing the right LED ceiling panel for a commercial space can get confusing fast. Between different sizes, such as 2x2, 1x4, or 2x4 LED flat panel lights, varying lumen packages, and features like selectable wattage, selectable CCT, 0–10V dimming, and emergency battery backup, it’s easy to order the wrong fixture. That mistake can lead to uneven brightness, glare, poor visual comfort, and expensive reorders or callbacks.
The good news is that picking the right LED ceiling lighting doesn’t have to be complicated.

When you treat each LED flat panel light as a match for your ceiling grid size, brightness needs, and any required safety features, the choice becomes straightforward.
In this guide, I break down Sunco’s ceiling panels and troffers, including high-output options and battery-backup models, to help you find the best lighting for offices, schools, retail spaces, healthcare facilities, corridors, and more.

2x4 High Output LED Ceiling Panel

One of Sunco's most popular ceiling panels is our 2x4 High Output Panel. This light is designed for larger commercial areas that require strong, consistent illumination like open offices, classrooms, conference centers, retail floors, and warehouses. With high lumen output and selectable wattage, this panel is ideal when maximum brightness and coverage are your top priorities.

Specifications:

What makes this panel so popular and so unique is its high lumen output combined with selectable wattage and CCT, allowing contractors to adjust brightness and color temperature during installation.

2x4 High Output Ceiling Panel with Battery Backup

Similar to the high output panel above, this model offers the same output and selectable wattage/CCT features but adds emergency battery backup functionality. It is designed for commercial environments that need to stay bright even during power outages for safety and code compliance.

Specifications:

What sets this panel apart is, of course, its integrated emergency battery, making it perfect for corridors, healthcare facilities, schools, and exit routes where uninterrupted lighting is crucial. This fixture provides 90 minutes of extra battery power, making it more reliable in emergency situations.

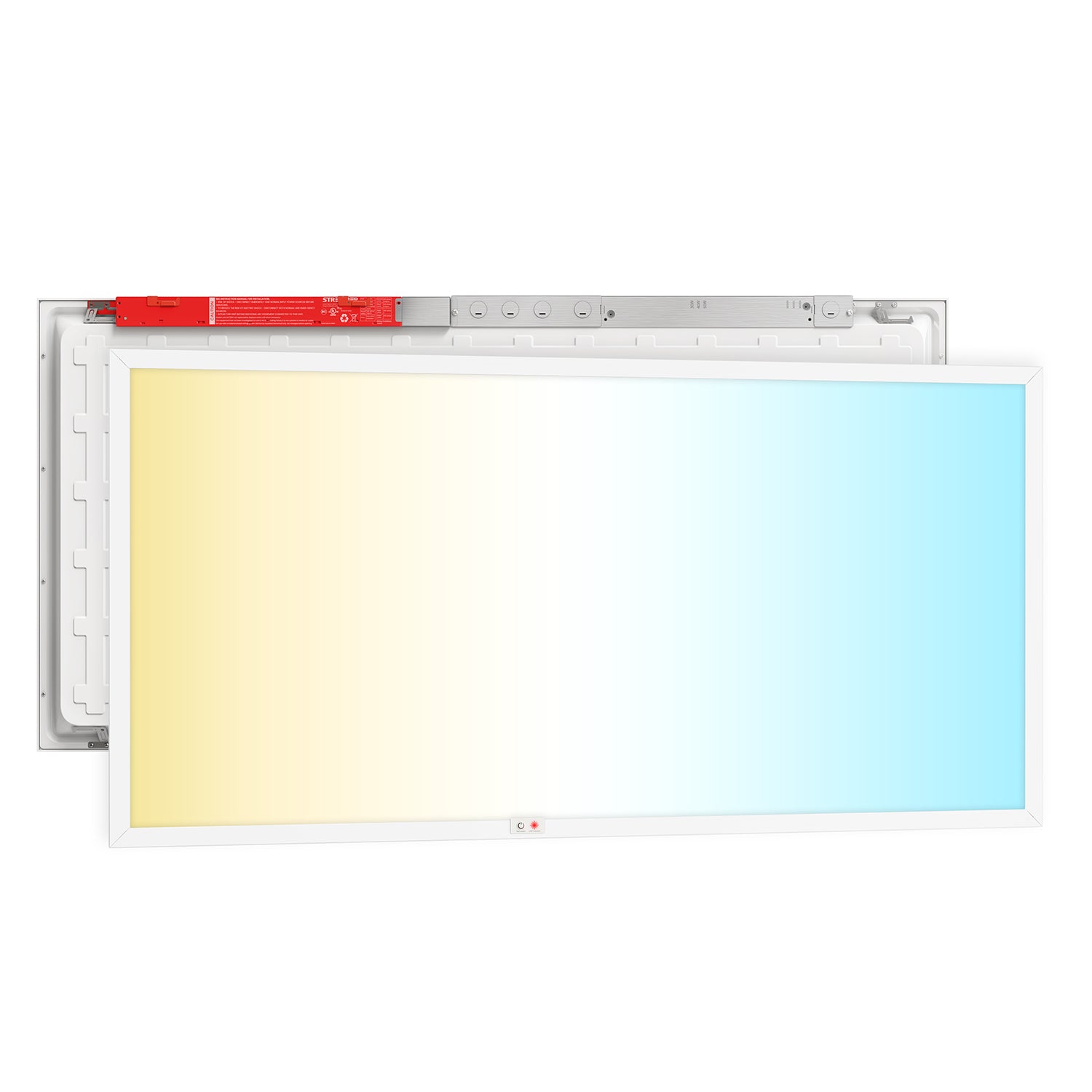

2x4 LED Ceiling Panel with Emergency Battery

If you need less intense light and a lower output panel that keeps the emergency backup option, this 2x4 panel is the one for you. It offers slightly lower lumen output than the high-lumen model while still delivering strong performance. It is a balanced option for facilities that need emergency backup but do not require the highest lumen level available.

Specifications:

You will find that this light doesn’t have a ton of differences from the others apart from lumens and wattage options.

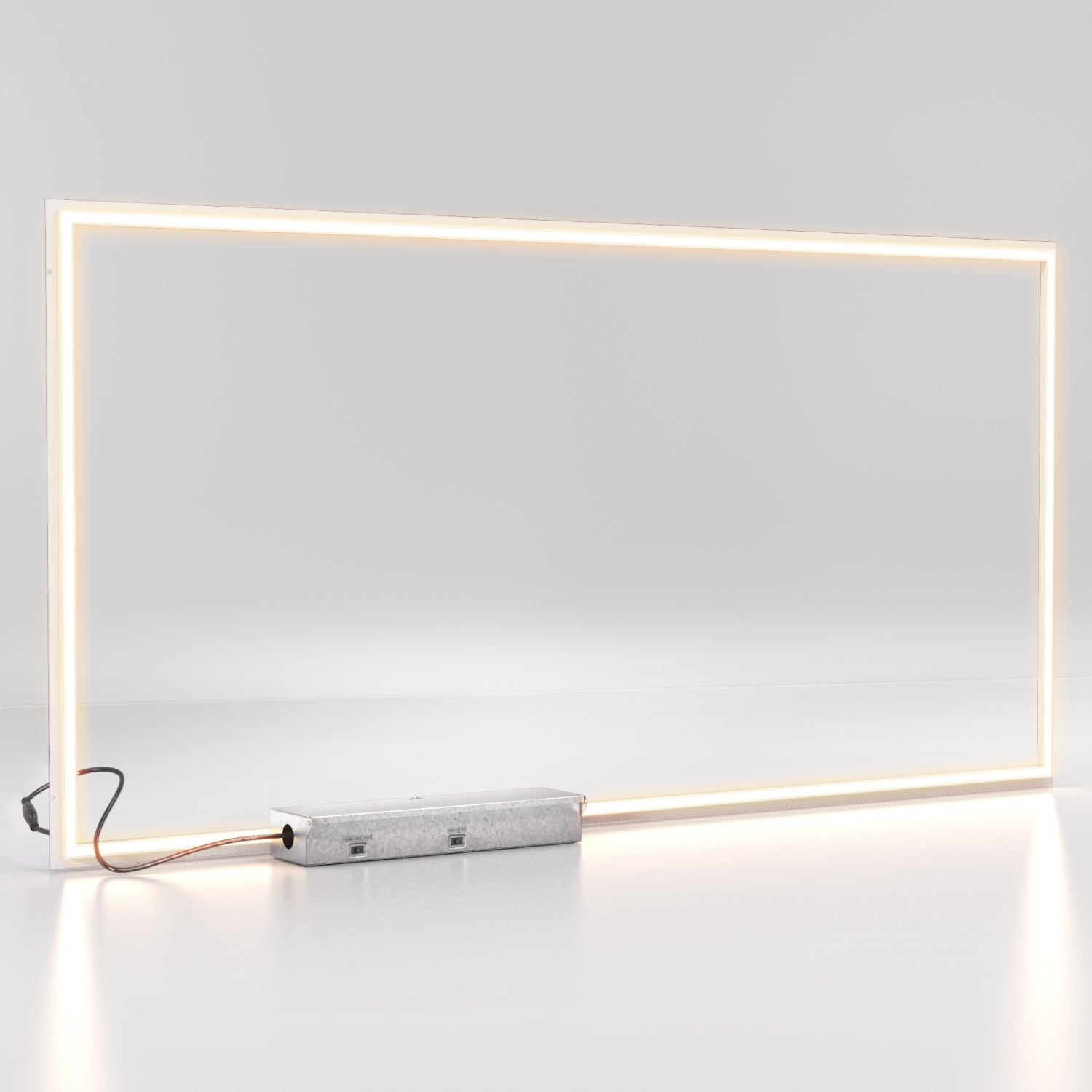

2x4 LED Grid Frame Ceiling Light

If you're looking for aesthetic alternatives to the standard ceiling panel, Sunco’s grid frame ceiling light offers a slimmer, lighter-profile alternative to high-lumen panels. It is well suited for general-purpose lighting in offices, hallways, break rooms, and smaller commercial spaces that pay attention to detail and design.

Specifications:

Compared to the high lumen model, this fixture provides less intense light with a glare free design. Plus, it looks sleek and stylish in modern offices, hallways, and classrooms.

2x2 LED Ceiling Panel

The 2x2 LED Ceiling Panel is ideal for smaller rooms and tighter grid layouts. It delivers strong, even lighting in a more compact footprint, making it suitable for offices, small conference rooms, retail aisles, and corridors.

Specifications:

Its compact size makes it the right choice when ceiling grids or room dimensions cannot accommodate 2x4 panels. We also offer this size panel with an emergency battery backup.

2x4 LED Center Basket Troffer

The Center Basket Troffer is similar to a standard flat panel, but it has a different shape that looks more retro than modern fixtures. Its center basket design enhances light distribution and reduces glare, making it comfortable for office and classroom environments that want to stray away from the norm a bit.

Specifications:

Unlike flat panel designs, the center basket style offers a familiar look often preferred in institutional or corporate settings while maintaining high output comparable to the high lumen panel.

2x2 LED Center Basket Troffer

Sunco’s classic Center Basket Troffer also comes in a 2x2 size. It combines the traditional troffer appearance, just a little more compact.

Specifications:

Compared to the flat 2x2 panel, this model offers a slightly more decorative profile and enhanced light diffusion.

1x4 LED Ceiling Panel

The 1x4 LED Ceiling Panel is designed for long, slim spaces where standard 2x2 or 2x4 fixtures are not ideal. Its elongated shape makes it perfect for hallways, reception areas, and other places where a narrower light is needed.

Specifications:

This panel stands out because of its form factor. It provides strong output in a slim configuration that fits architectural layouts requiring linear lighting.

How to Choose the Right Panel

When comparing these models, the biggest differences come down to size, lumen output, and emergency capability.

Sunco’s ceiling panel lineup is designed to offer flexibility at every level. With selectable wattage and color temperature across most models, you can fine-tune performance to match the application—ensuring energy efficiency, visual comfort, and reliable commercial lighting in any environment.

Shop Sunco LED Ceiling Panels & Troffers to match your ceiling grid and brightness needs.

FAQs About LED Celing Panel Lights

What is an LED ceiling panel?

An LED ceiling panel is a slim, low profile ceiling light that’s made to spread light evenly across a space. You’ll see them most often in drop ceilings with a standard T bar grid because they sit flush and look clean. Many facilities use them as a modern alternative to older fluorescent fixtures since they can deliver consistent light with less ongoing maintenance. The most common sizes are 2x4, 2x2, and 1x4 so they match standard commercial ceiling grids.

What’s the difference between an LED flat panel light and a troffer?

An LED flat panel light is usually a modern, flat faced fixture that gives a smooth, even glow and a minimal look. A troffer is the more classic “office ceiling light” style, and shapes like a center basket troffer are designed to soften the light and reduce harsh glare. That’s why many catalogs talk about ceiling panels and troffers together, they solve the same job, but the style and how the light is diffused can feel different in the room.

Which size should I choose: 2x4 LED flat panel light, 2x2 LED ceiling panel, or 1x4 LED flat panel light?

Start with the ceiling grid size, then think about the room layout. A 2x4 LED flat panel light is the go to for bigger, open spaces because it covers more ceiling area per fixture. A 2x2 LED ceiling panel makes sense for smaller rooms, tighter grids, or spaces where you want more flexibility in spacing. A 1x4 LED flat panel light is a great fit for corridors and narrow layouts where a long, slim fixture lines up better with the architecture. If you’re not sure, it’s smart to do a quick layout check, fixture spacing and ceiling height can change what feels “right” even in the same building.

When should I use a 2x4 LED flat panel light?

Use a 2x4 LED flat panel light when you want bright, even coverage across a larger area with fewer fixtures. A practical range for many commercial 2x4 panels is roughly 4,000 to 7,700 lumens per fixture, which is why they show up so often in open offices, classrooms, retail floors, and larger work areas. The best result still comes from matching output to your ceiling height and spacing, because a high lumen fixture can feel great in an open area but too intense if it’s over lit or placed too close together.

How many lumens do I need for commercial spaces?

Instead of thinking “high” or “low,” think in output bands and what the room is used for. Many commercial LED ceiling panels land in ranges like 3,300 to 5,500 lumens for everyday spaces and 5,700 to 7,700 lumens for higher output needs. Offices and classrooms often do well with a balanced, comfortable level, while warehouses, high ceilings, and large retail areas usually need either more lumens per fixture or more fixtures overall. The honest answer is that the “right” lumen number depends on ceiling height, spacing, and the tasks happening in the space, so use lumens as a starting point and confirm with a simple layout plan.

What does selectable wattage mean, and why does it matter?

Selectable wattage means one LED flat panel light can be set to multiple power levels during installation, for example 30W, 40W, 50W or 40W, 50W, 60W depending on the model. This is useful on real jobs because it gives you a safety net. If a room ends up needing more or less light than expected, you can adjust the setting without swapping the fixture. It also helps teams standardize and stock fewer SKUs while still covering different brightness needs.

What does selectable CCT mean, and what should I pick?

Selectable CCT means the LED ceiling panel has a built in switch so you can choose the light color at install time. Common options are 3500K, 4000K, 5000K or 4000K, 5000K, 6000K, depending on the fixture. As a practical guide, 4000K is a popular “neutral white” for offices and general areas, 5000K is a brighter, crisper look that works well in retail and task heavy spaces, and 6000K is very cool and sharp, which can be helpful in high visibility environments but can feel harsh in some interiors. If you want the safest choice for most commercial spaces, 4000K is often the crowd pleaser, but it’s worth matching it to the space’s finishes and the kind of work being done.

What is 0 to 10V dimming, and do I need it?

0 to 10V dimming is a common commercial dimming method that lets you smoothly adjust light output using a compatible dimmer or control system. It’s often used in offices, schools, and multi use areas because it makes it easier to reduce glare, set scenes, and cut light levels when full output is not needed. Whether you need it depends on the project. If the space will use lighting controls, daylight sensors, or different “modes,” then 0 to 10V dimmable ceiling panels and troffers are a practical pick. If the space is simple and always runs at one light level, dimming may not be worth the added planning.

When do I need an LED flat panel light with emergency battery backup?

You typically use an LED flat panel light with battery backup in areas that must stay lit during an outage for safe exit and continuity, like corridors, stairwells, exit paths, schools, and healthcare settings. The exact “where and how many” is usually driven by the building’s life safety plan and local requirements, so it’s best to coordinate with the project electrician or engineer when backup lighting is part of the scope. In most buildings, battery backup fixtures are placed intentionally in key locations rather than everywhere.

How long does emergency battery backup typically last?

A very common spec for emergency lighting is 90 minutes of backup runtime, and many battery backup panels are built around that target. Actual performance can vary by model and conditions, so it’s smart to verify the listed emergency output and runtime on the exact fixture you’re using. For facility teams, regular testing matters too, because a battery that never gets checked is the one that surprises you when you need it most.

Are LED ceiling panels difficult to install in a grid ceiling?

In a standard drop ceiling, most LED ceiling panels are designed to fit right into the grid and the physical install is usually straightforward for a qualified installer. The “gotchas” are usually the details, like planning for 0 to 10V dimming wiring, routing power cleanly, integrating battery backup, or meeting any special local requirements for commercial ceilings. A quick pre install check for grid size, access above the ceiling, and control compatibility can save a lot of time on site.
