5-Louver Glass Lens Step Light, Surface-Mount, 4 Inch, White, 120 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

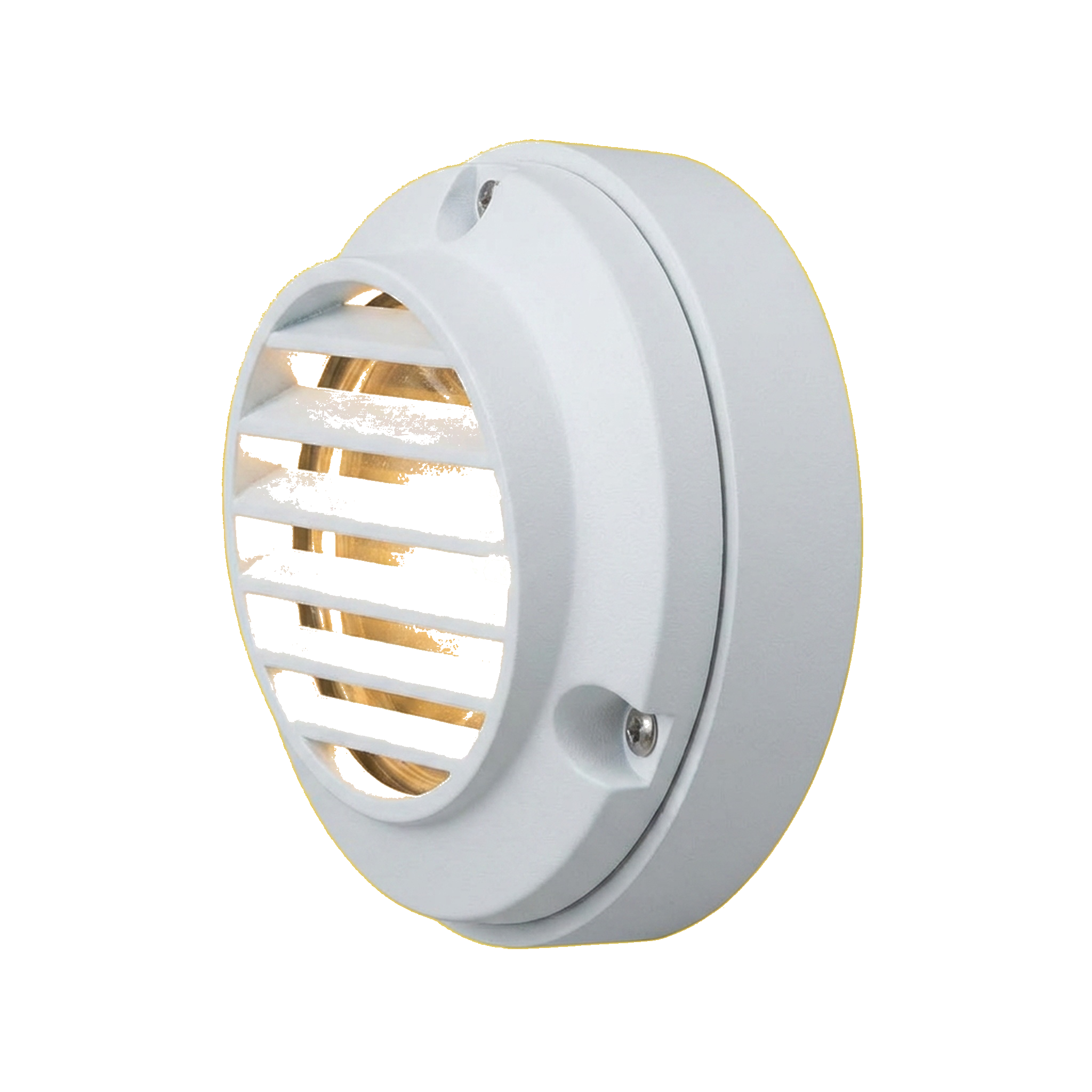

This diecast aluminum 5-louver step light is designed for surface-mount installation and measures 4 inches across the customer-facing face. The included 2700K LED lamp produces 120 lumens. A remote 12V transformer is required.
Features
-
- Die-cast aluminum housing with louvered faceplate and polyester UV powder coat finish
- Available finishes: black, bronze, and white
- Frosted tempered heat-resistant glass lens with weather-tight silicone O-ring gasket
- Included LED lamp: 1.5W, approximately 120 Lumens, 2700K, 12,000-hour life, 11–12.5V operating voltage; 5-year limited lamp warranty
- Fixed T5 wedge socket; accepts 12V T5 wedge lamps up to 18W max
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; surface-mount with included mounting plate
- Requires remote 12V transformer (magnetic); intended for outdoor use
This diecast aluminum 5-louver step light is designed for surface-mount installation and measures 4 inches across the customer-facing face. The included 2700K LED lamp produces 120 lumens. A remote 12V transformer is required.
Features
-
- Die-cast aluminum housing with louvered faceplate and polyester UV powder coat finish
- Available finishes: black, bronze, and white
- Frosted tempered heat-resistant glass lens with weather-tight silicone O-ring gasket
- Included LED lamp: 1.5W, approximately 120 Lumens, 2700K, 12,000-hour life, 11–12.5V operating voltage; 5-year limited lamp warranty
- Fixed T5 wedge socket; accepts 12V T5 wedge lamps up to 18W max
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; surface-mount with included mounting plate
- Requires remote 12V transformer (magnetic); intended for outdoor use
Overview
This diecast aluminum 5-louver step light is designed for surface-mount installation and measures 4 inches across the customer-facing face. The included 2700K LED lamp produces 120 lumens. A remote 12V transformer is required.
Features
-
- Die-cast aluminum housing with louvered faceplate and polyester UV powder coat finish
- Available finishes: black, bronze, and white
- Frosted tempered heat-resistant glass lens with weather-tight silicone O-ring gasket
- Included LED lamp: 1.5W, approximately 120 Lumens, 2700K, 12,000-hour life, 11–12.5V operating voltage; 5-year limited lamp warranty
- Fixed T5 wedge socket; accepts 12V T5 wedge lamps up to 18W max
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; surface-mount with included mounting plate
- Requires remote 12V transformer (magnetic); intended for outdoor use
Specifications
| 5-Louver Glass Lens Step Light, Surface-Mount, 4 Inch, White, 120 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 120LM |
| Efficacy | 80LM/W |
| Wattage | 1.5W |
| Wattage Equivalency | 10W |
| Voltage | Low Voltage |
| Operating Temperature | -4°F to 104°F |
| Color Temperature | 2700K |
| CRI | 80+ |
| Bulb Base | T5 |
| Mount Type | Surface Mount |
| Finish | White |
| Material | Die-cast aluminum |
| Lifetime | 12,000 Hours |
| Warranty | Die-cast aluminum fixture housing, warranty per manufacturer terms; 5-year limited LED lamp warranty |
