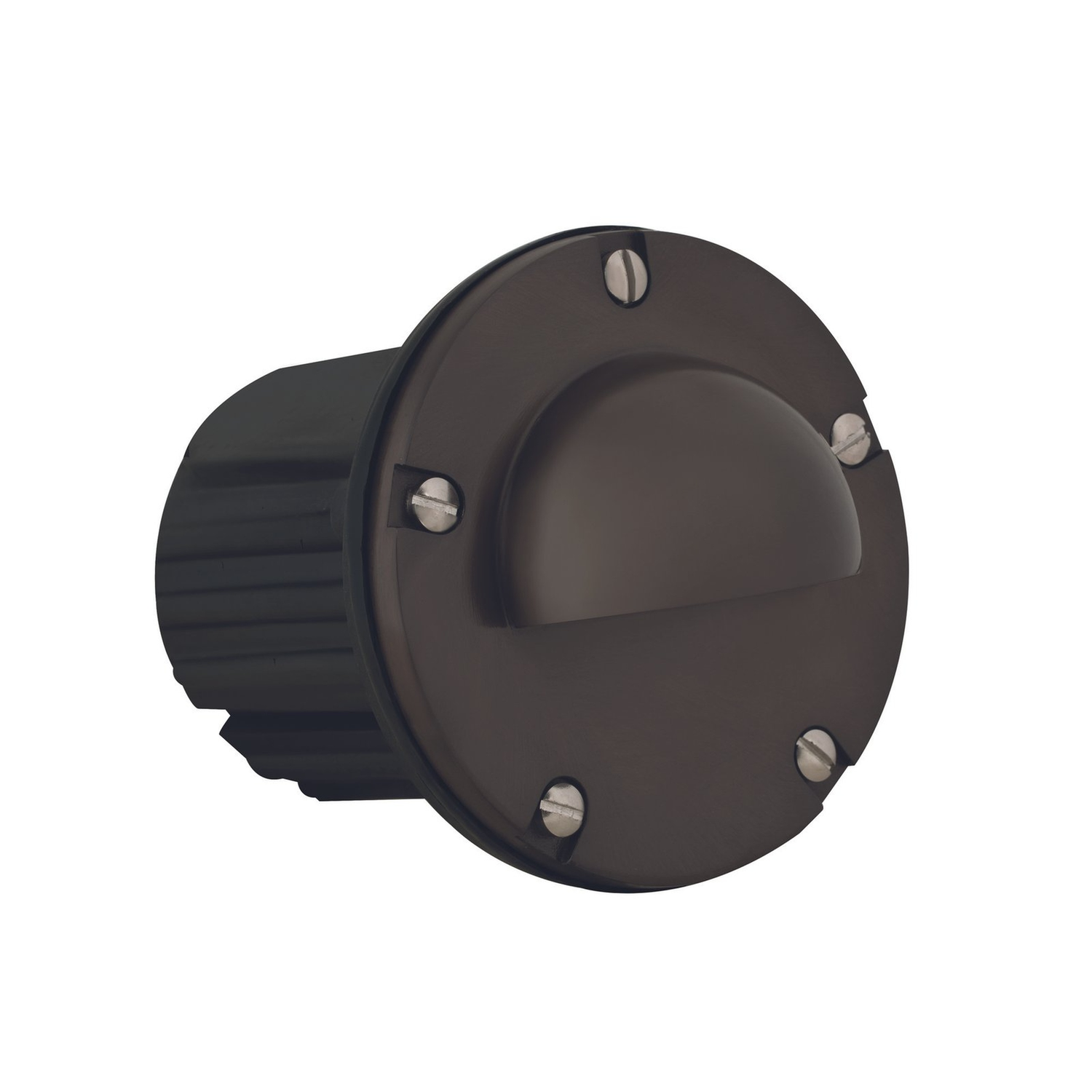

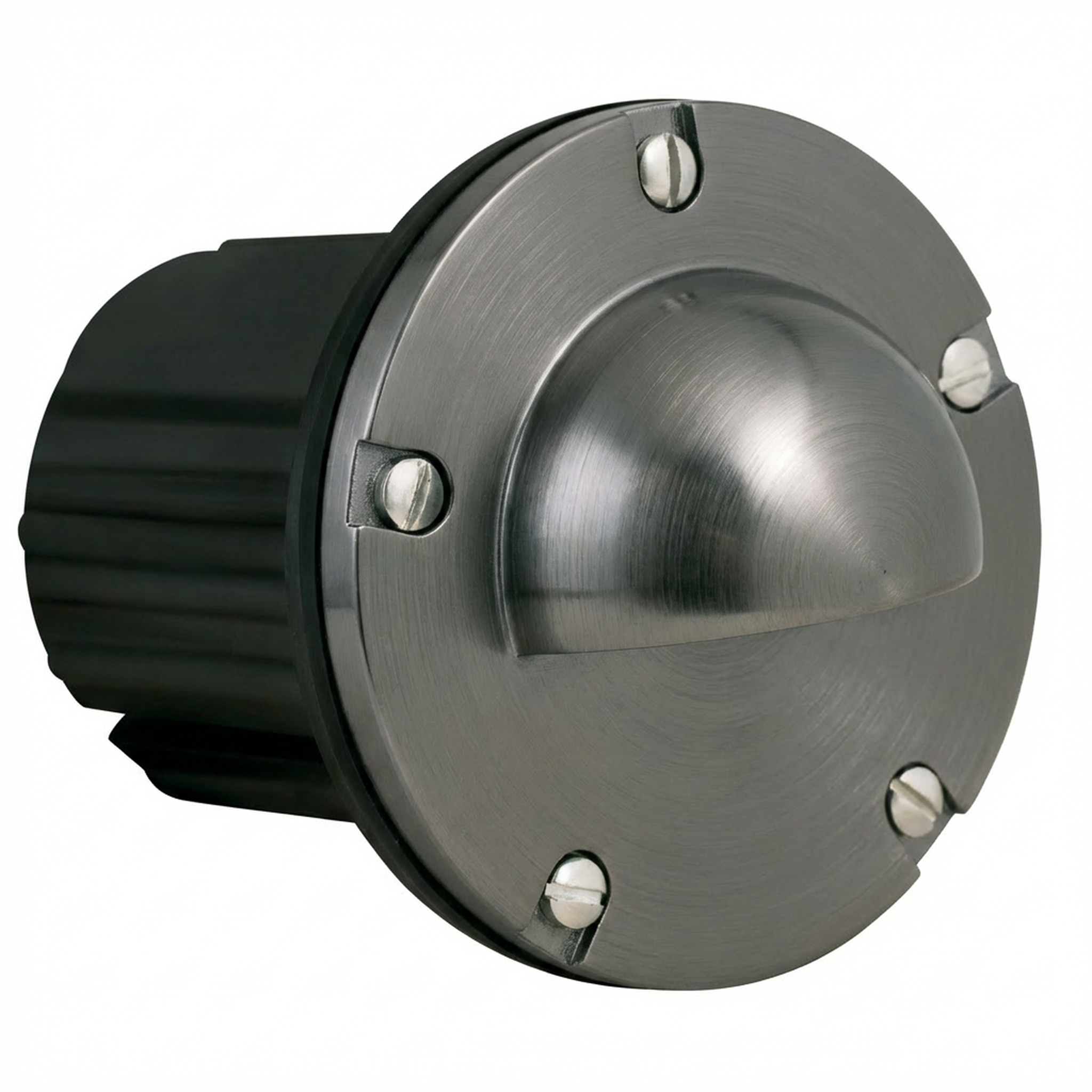

Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step light with frosted, heat-resistant flat glass lens
- Gun Metal finish; cast brass faceplate sealed to injection-molded composite housing with silicone O-ring gasket
- Bundled MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, rated 50,000 hours, 77.1 Lumens/W, 25W halogen equivalency
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25°
- Operates in 9–17V LED range; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: approx 4-7/8" Dia x 6" length
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step light with frosted, heat-resistant flat glass lens
- Gun Metal finish; cast brass faceplate sealed to injection-molded composite housing with silicone O-ring gasket
- Bundled MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, rated 50,000 hours, 77.1 Lumens/W, 25W halogen equivalency
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25°
- Operates in 9–17V LED range; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: approx 4-7/8" Dia x 6" length
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step light with frosted, heat-resistant flat glass lens
- Gun Metal finish; cast brass faceplate sealed to injection-molded composite housing with silicone O-ring gasket
- Bundled MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, rated 50,000 hours, 77.1 Lumens/W, 25W halogen equivalency
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25°
- Operates in 9–17V LED range; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: approx 4-7/8" Dia x 6" length
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6" L |
| Finish | Gun Metal |
| Material | die-cast brass faceplate; injection-molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass fixture housing; Five (5) years limited warranty on LED module |
