Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

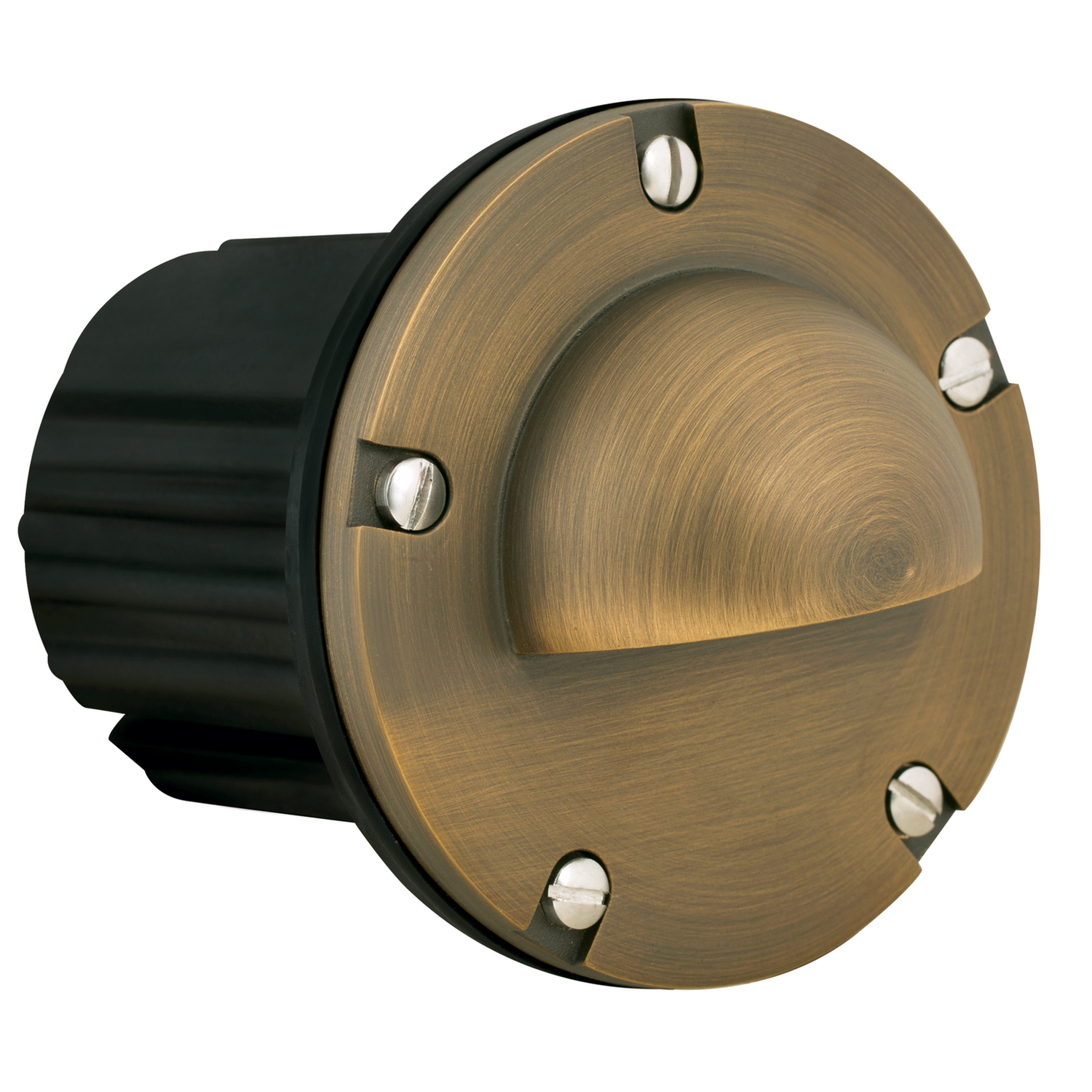

This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with injection-molded composite housing for high UV stability and long-term durability; Antique Bronze finish
- Silicone O-ring seals the faceplate to the housing for weather-tight protection
- Frosted heat-resistant flat glass lens; adjustable ceramic bi-pin MR16 socket tilts ±25° for aiming
- Included lamp: MR16 3.5W LED, 270 Lumens, 2700K CCT, 60° beam angle, CRI 80, 50,000-hour rated life, 9–17V operating range, dimmable
- Compatible with remote 12V magnetic transformer (required, not included)
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface mount supplied
- Recessed or in-ground concrete encasement recommended for permanent installations
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" depth
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with injection-molded composite housing for high UV stability and long-term durability; Antique Bronze finish
- Silicone O-ring seals the faceplate to the housing for weather-tight protection
- Frosted heat-resistant flat glass lens; adjustable ceramic bi-pin MR16 socket tilts ±25° for aiming
- Included lamp: MR16 3.5W LED, 270 Lumens, 2700K CCT, 60° beam angle, CRI 80, 50,000-hour rated life, 9–17V operating range, dimmable
- Compatible with remote 12V magnetic transformer (required, not included)
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface mount supplied
- Recessed or in-ground concrete encasement recommended for permanent installations
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" depth
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with injection-molded composite housing for high UV stability and long-term durability; Antique Bronze finish
- Silicone O-ring seals the faceplate to the housing for weather-tight protection
- Frosted heat-resistant flat glass lens; adjustable ceramic bi-pin MR16 socket tilts ±25° for aiming
- Included lamp: MR16 3.5W LED, 270 Lumens, 2700K CCT, 60° beam angle, CRI 80, 50,000-hour rated life, 9–17V operating range, dimmable
- Compatible with remote 12V magnetic transformer (required, not included)
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface mount supplied
- Recessed or in-ground concrete encasement recommended for permanent installations
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" depth
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. face; 6" overall L; Approx. 4-5/8" D |
| Finish | Antique Bronze |
| Material | Die-cast brass faceplate; injection-molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
