Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

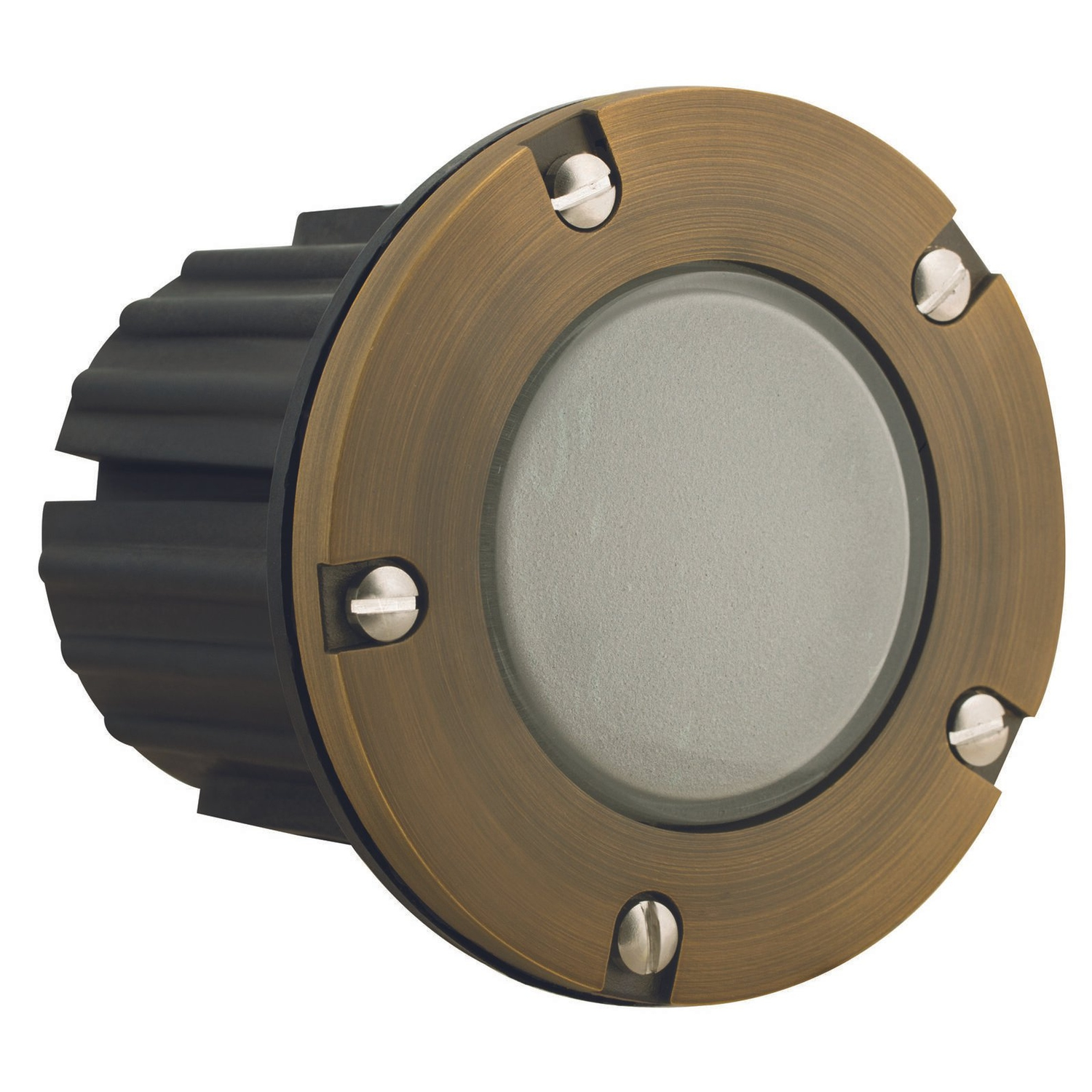

This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted flat glass lens
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Finish: Antique Bronze with natural toning (finish will vary)
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 60° wide-flood beam, 2700K, CRI 80, dimmable, 50,000-hour rated life
- 12V system; LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Silicone O-ring gasket for weather-tight protection
- ETL listed; operating range -22°F to 122°F
- Fixture dimensions: 4-7/8" Dia x 4-5/8" L
- Limited lifetime warranty on fixture; 5-year manufacturer warranty on bundled lamp
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted flat glass lens
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Finish: Antique Bronze with natural toning (finish will vary)
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 60° wide-flood beam, 2700K, CRI 80, dimmable, 50,000-hour rated life
- 12V system; LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Silicone O-ring gasket for weather-tight protection
- ETL listed; operating range -22°F to 122°F
- Fixture dimensions: 4-7/8" Dia x 4-5/8" L
- Limited lifetime warranty on fixture; 5-year manufacturer warranty on bundled lamp
Overview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted flat glass lens
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Finish: Antique Bronze with natural toning (finish will vary)
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 60° wide-flood beam, 2700K, CRI 80, dimmable, 50,000-hour rated life
- 12V system; LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Silicone O-ring gasket for weather-tight protection
- ETL listed; operating range -22°F to 122°F
- Fixture dimensions: 4-7/8" Dia x 4-5/8" L
- Limited lifetime warranty on fixture; 5-year manufacturer warranty on bundled lamp
Specifications
| Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Antique Bronze |
| Material | Brass (die-cast brass faceplate) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture; five (5) year manufacturer warranty on LED module |
