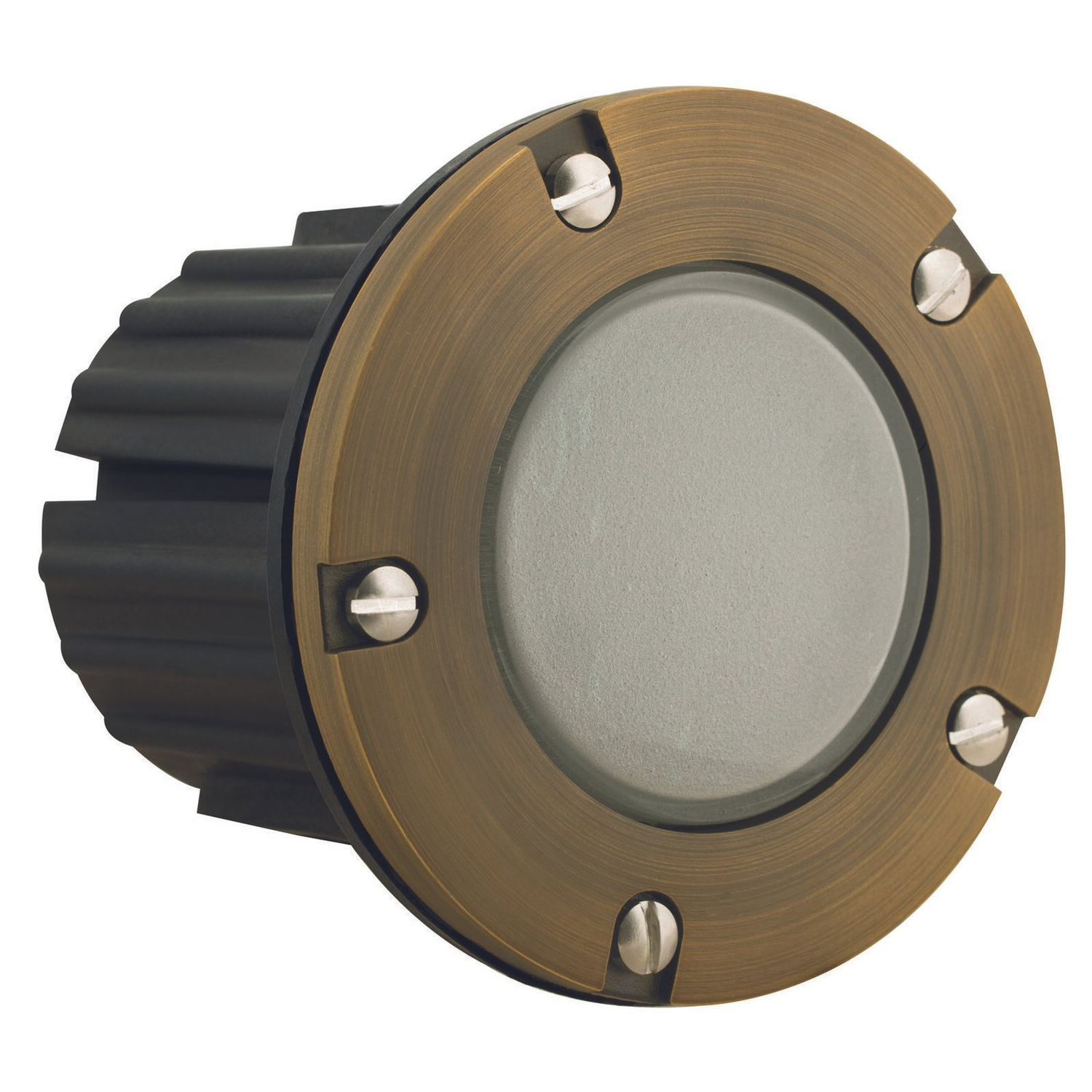

Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted, heat-resistant flat glass lens
- Antique Bronze die-cast brass faceplate (natural toning will vary)
- Housing: injection-molded composite with high UV stability and silicone O-ring for weather-tight protection
- Included MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle, CRI 80, 50,000-hour rated life
- LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface mount supplied
- Dimensions: 4-7/8" Dia x 4-5/8" L
- ETL listed
- Fixture limited lifetime warranty; LED lamp 5-year manufacturer warranty
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted, heat-resistant flat glass lens
- Antique Bronze die-cast brass faceplate (natural toning will vary)
- Housing: injection-molded composite with high UV stability and silicone O-ring for weather-tight protection
- Included MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle, CRI 80, 50,000-hour rated life
- LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface mount supplied
- Dimensions: 4-7/8" Dia x 4-5/8" L
- ETL listed
- Fixture limited lifetime warranty; LED lamp 5-year manufacturer warranty
Overview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted, heat-resistant flat glass lens
- Antique Bronze die-cast brass faceplate (natural toning will vary)
- Housing: injection-molded composite with high UV stability and silicone O-ring for weather-tight protection
- Included MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle, CRI 80, 50,000-hour rated life
- LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface mount supplied
- Dimensions: 4-7/8" Dia x 4-5/8" L
- ETL listed
- Fixture limited lifetime warranty; LED lamp 5-year manufacturer warranty
Specifications
| Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Antique Bronze |
| Material | Brass (die-cast brass faceplate) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing; Five (5) years limited warranty on LED module |
