Lensed Brick Step Light, Surface-Mount, 8-3/4 Inch, Bronze, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

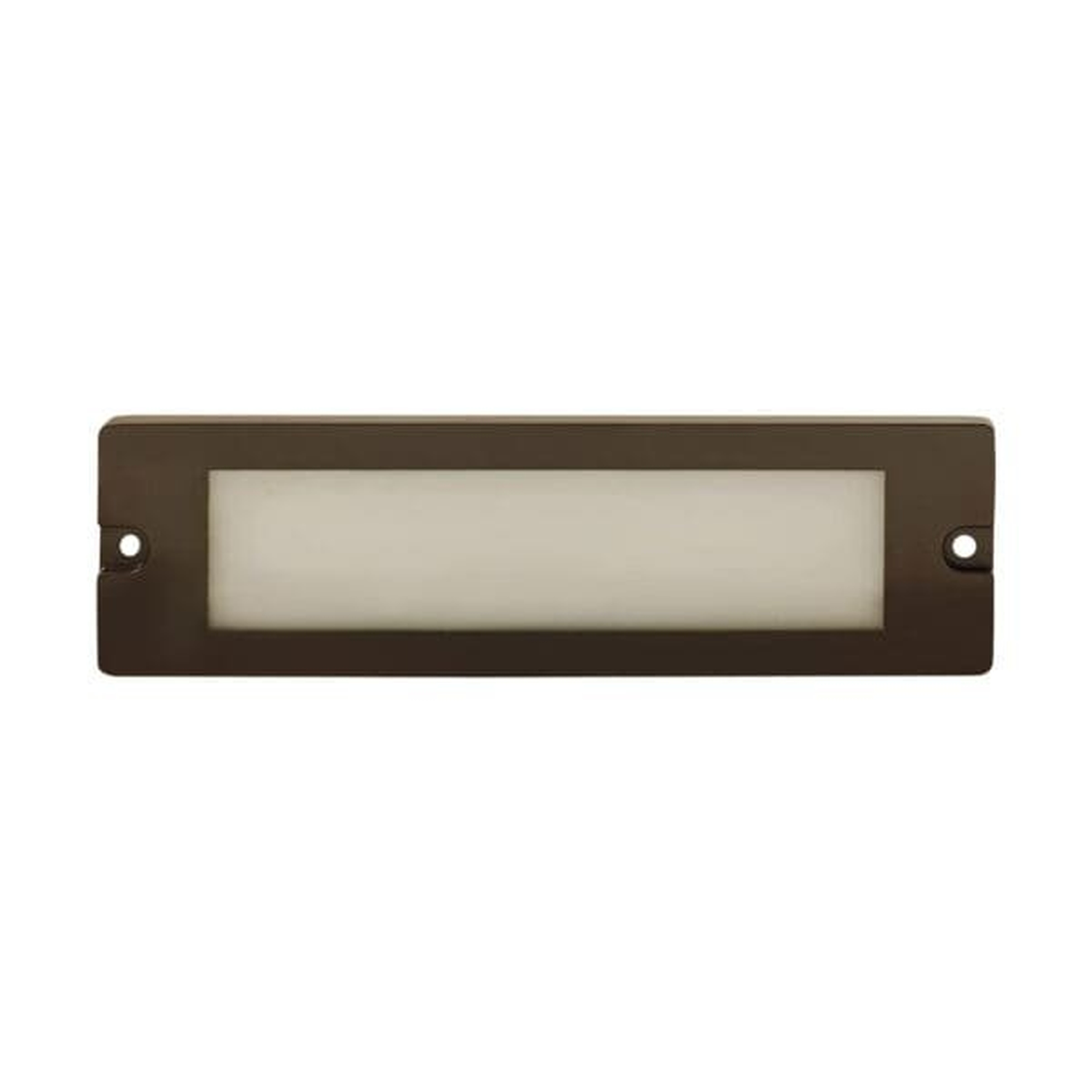

This Bronze lensed brick step light is a low-voltage fixture designed for surface mounting, with an 8-3/4 Inch customer-facing plate. The 5W removable integrated LED module delivers 450 lumens at 3000K.
Features
-
- Surface-mount step/brick light with corrosion-resistant die-cast aluminum housing and die-cast aluminum faceplate fitted to a stainless steel backplate; Bronze polyester UV powder coat finish
- Bundled removable integrated LED: 5W, 450 Lumens, 3000K CCT, CRI > 80, 30,000-hour rated life; 35W halogen equivalent
- Dimmable with magnetic low-voltage controls only
- Requires remote 12V magnetic transformer; not for use with electronic transformers
- Operates on 8–15 VAC
- Ambient operating temperature: -40°F to 124°F
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord (wire connector sold separately)
- Dimensions: 8-3/4" W x 2-1/2" H x 1/2" D
- Includes mounting hardware for surface installation on walls or steps; suitable for concrete, brick, and masonry
- Warranty: 5-year fixture warranty; 10-year removable LED-module warranty
This Bronze lensed brick step light is a low-voltage fixture designed for surface mounting, with an 8-3/4 Inch customer-facing plate. The 5W removable integrated LED module delivers 450 lumens at 3000K.
Features
-
- Surface-mount step/brick light with corrosion-resistant die-cast aluminum housing and die-cast aluminum faceplate fitted to a stainless steel backplate; Bronze polyester UV powder coat finish
- Bundled removable integrated LED: 5W, 450 Lumens, 3000K CCT, CRI > 80, 30,000-hour rated life; 35W halogen equivalent
- Dimmable with magnetic low-voltage controls only
- Requires remote 12V magnetic transformer; not for use with electronic transformers
- Operates on 8–15 VAC
- Ambient operating temperature: -40°F to 124°F
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord (wire connector sold separately)
- Dimensions: 8-3/4" W x 2-1/2" H x 1/2" D
- Includes mounting hardware for surface installation on walls or steps; suitable for concrete, brick, and masonry
- Warranty: 5-year fixture warranty; 10-year removable LED-module warranty
Overview
This Bronze lensed brick step light is a low-voltage fixture designed for surface mounting, with an 8-3/4 Inch customer-facing plate. The 5W removable integrated LED module delivers 450 lumens at 3000K.
Features
-
- Surface-mount step/brick light with corrosion-resistant die-cast aluminum housing and die-cast aluminum faceplate fitted to a stainless steel backplate; Bronze polyester UV powder coat finish
- Bundled removable integrated LED: 5W, 450 Lumens, 3000K CCT, CRI > 80, 30,000-hour rated life; 35W halogen equivalent
- Dimmable with magnetic low-voltage controls only
- Requires remote 12V magnetic transformer; not for use with electronic transformers
- Operates on 8–15 VAC
- Ambient operating temperature: -40°F to 124°F
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord (wire connector sold separately)
- Dimensions: 8-3/4" W x 2-1/2" H x 1/2" D
- Includes mounting hardware for surface installation on walls or steps; suitable for concrete, brick, and masonry
- Warranty: 5-year fixture warranty; 10-year removable LED-module warranty
Specifications
| Lensed Brick Step Light, Surface-Mount, 8-3/4 Inch, Bronze, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 90LM/W |
| Wattage | 5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Operating Temperature | -40°F to 124°F |
| Dimmable | Dimmable |
| Dimming Details | Magnetic low-voltage dimming only; remote 12V magnetic transformer required. Not for use with electronic transformers. |
| Color Temperature | 3000K |
| CRI | 80+ |
| Trim Color | Bronze |
| Power Type | Low Voltage 12V |
| Mount Type | Surface |
| Dimensions | 8-3/4" W x 2-1/2" H x 1/2" D |
| Finish | Bronze |
| Material | die-cast aluminum housing and faceplate; stainless steel backplate; frosted lens |
| Lifetime | 30,000 Hours |
| Warranty | Limited lifetime warranty on stainless steel fixture housing, Five (5) years limited warranty on LED module |
