Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

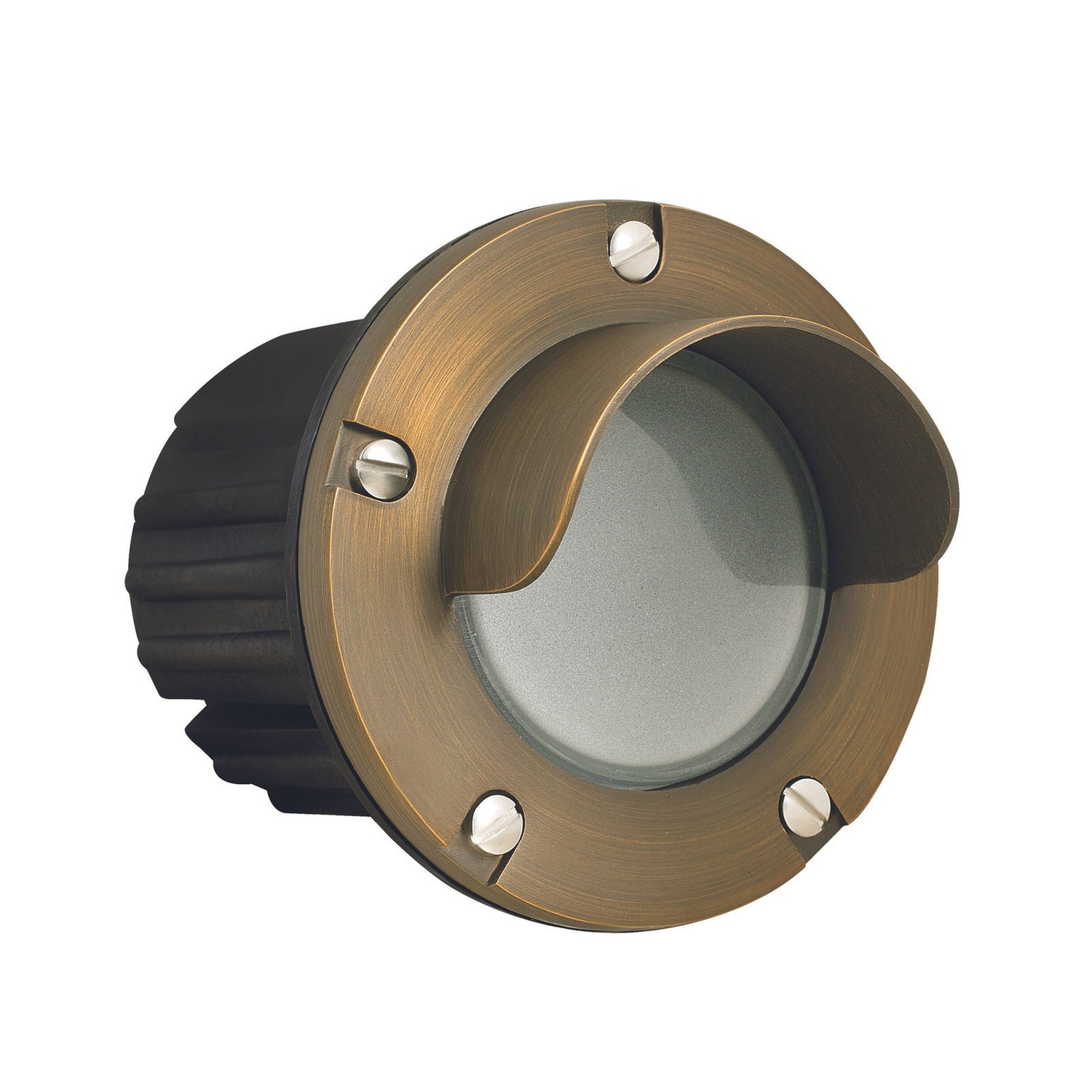

This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with die-cast brass faceplate, injection-molded composite housing, silicone O-ring seal, and frosted heat-resistant flat glass lens
- Dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- Included lamp: LED MR16, 5W, 450 Lumens, 2700K, CRI 80, 15° beam angle, 50,000-hour rated lifetime; dimmable
- LED operation 9–17V; remote 12V transformer required
- Adjustable ceramic bi-pin MR16 socket with approximately ±25° tilt
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- ETL listed; rated operating temperature -22°F to 122°F
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with die-cast brass faceplate, injection-molded composite housing, silicone O-ring seal, and frosted heat-resistant flat glass lens
- Dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- Included lamp: LED MR16, 5W, 450 Lumens, 2700K, CRI 80, 15° beam angle, 50,000-hour rated lifetime; dimmable
- LED operation 9–17V; remote 12V transformer required
- Adjustable ceramic bi-pin MR16 socket with approximately ±25° tilt
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- ETL listed; rated operating temperature -22°F to 122°F
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
Overview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with die-cast brass faceplate, injection-molded composite housing, silicone O-ring seal, and frosted heat-resistant flat glass lens
- Dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- Included lamp: LED MR16, 5W, 450 Lumens, 2700K, CRI 80, 15° beam angle, 50,000-hour rated lifetime; dimmable
- LED operation 9–17V; remote 12V transformer required
- Adjustable ceramic bi-pin MR16 socket with approximately ±25° tilt
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- ETL listed; rated operating temperature -22°F to 122°F
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
Specifications
| Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Antique Bronze |
| Material | die-cast brass faceplate with injection-molded composite housing and frosted heat-resistant flat glass lens |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on brass faceplate; 10-year on housing; LED lamps 5-year limited warranty (when supplied) |
