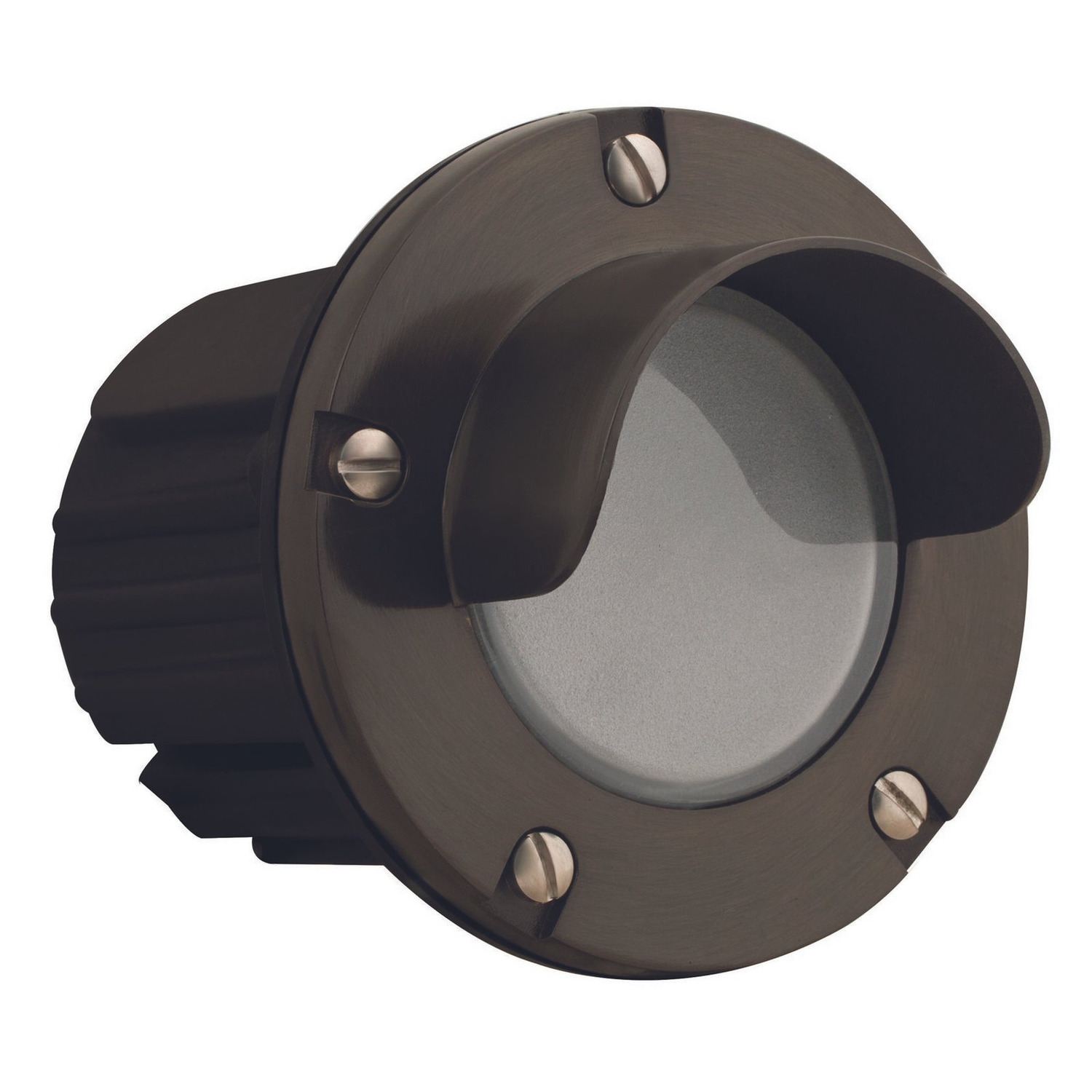

Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted heat-resistant flat glass lens and die-cast brass faceplate
- Injection-molded composite housing with high UV stability; silicone O-ring gasket seals faceplate to housing
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25° for targeted aiming
- Includes MR16 LED COB lamp: 5W, 2700K, typical ~450 Lumens, dimmable, rated 50,000 hours
- Designed for 12V systems; LED lamp operating range 9–17V (remote 12V transformer required)
- Mounting: in-ground direct burial or concrete encasement
- Suitable for recessed wall mounting and concrete encasement with optional kit
- ETL listed; dimensions: 4-7/8" Dia x 6-1/8" L
- Beam angle: 15° narrow beam
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted heat-resistant flat glass lens and die-cast brass faceplate
- Injection-molded composite housing with high UV stability; silicone O-ring gasket seals faceplate to housing
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25° for targeted aiming
- Includes MR16 LED COB lamp: 5W, 2700K, typical ~450 Lumens, dimmable, rated 50,000 hours
- Designed for 12V systems; LED lamp operating range 9–17V (remote 12V transformer required)
- Mounting: in-ground direct burial or concrete encasement
- Suitable for recessed wall mounting and concrete encasement with optional kit
- ETL listed; dimensions: 4-7/8" Dia x 6-1/8" L
- Beam angle: 15° narrow beam
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
Overview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted heat-resistant flat glass lens and die-cast brass faceplate
- Injection-molded composite housing with high UV stability; silicone O-ring gasket seals faceplate to housing
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25° for targeted aiming
- Includes MR16 LED COB lamp: 5W, 2700K, typical ~450 Lumens, dimmable, rated 50,000 hours
- Designed for 12V systems; LED lamp operating range 9–17V (remote 12V transformer required)
- Mounting: in-ground direct burial or concrete encasement
- Suitable for recessed wall mounting and concrete encasement with optional kit
- ETL listed; dimensions: 4-7/8" Dia x 6-1/8" L
- Beam angle: 15° narrow beam
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
Specifications
| Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Gun Metal |
| Material | Die-cast brass faceplate and injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on brass faceplate; 10-year warranty on housing (manufacturer's defects); five (5) year manufacturer's warranty on the LED lamp |
