- Location: Dry Rated

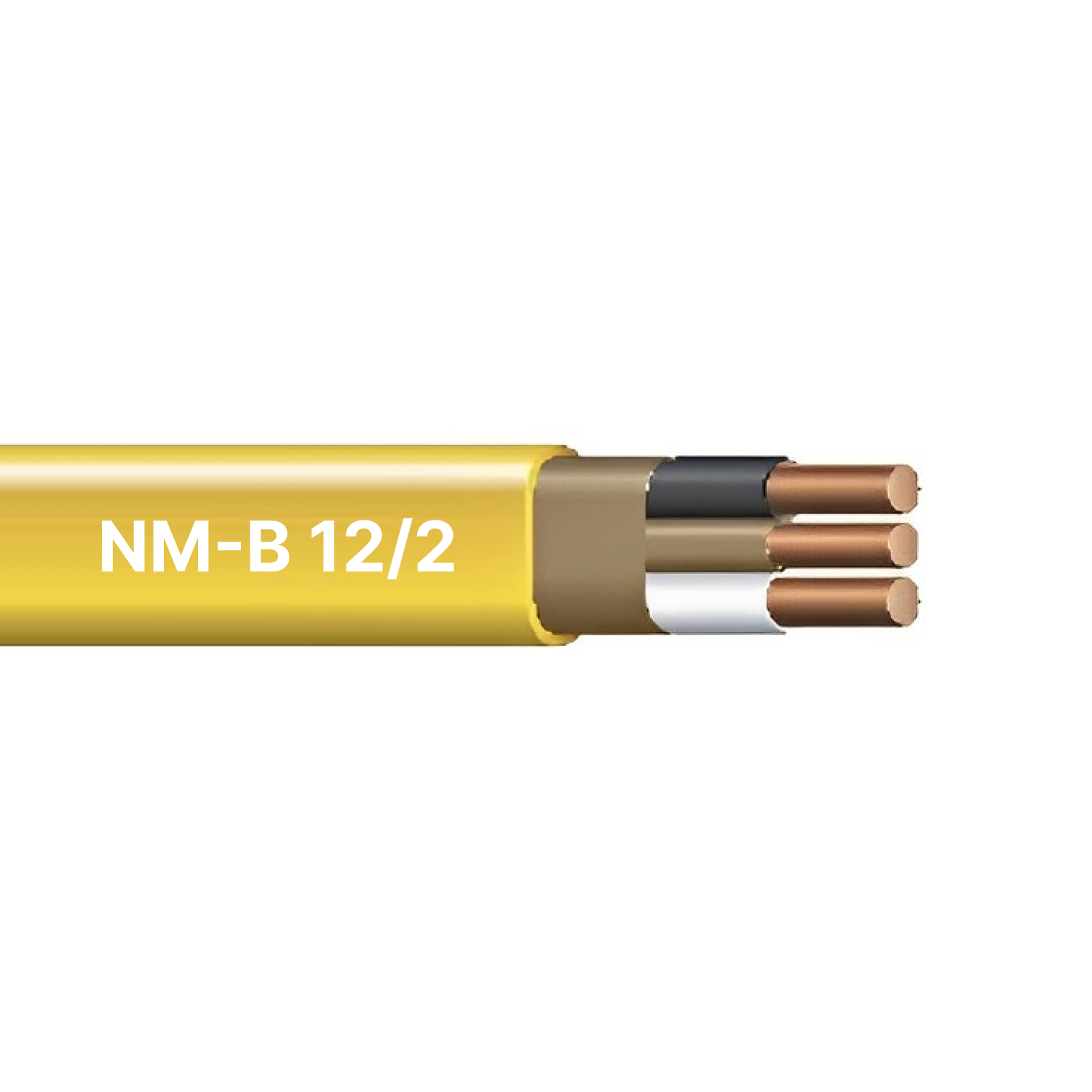

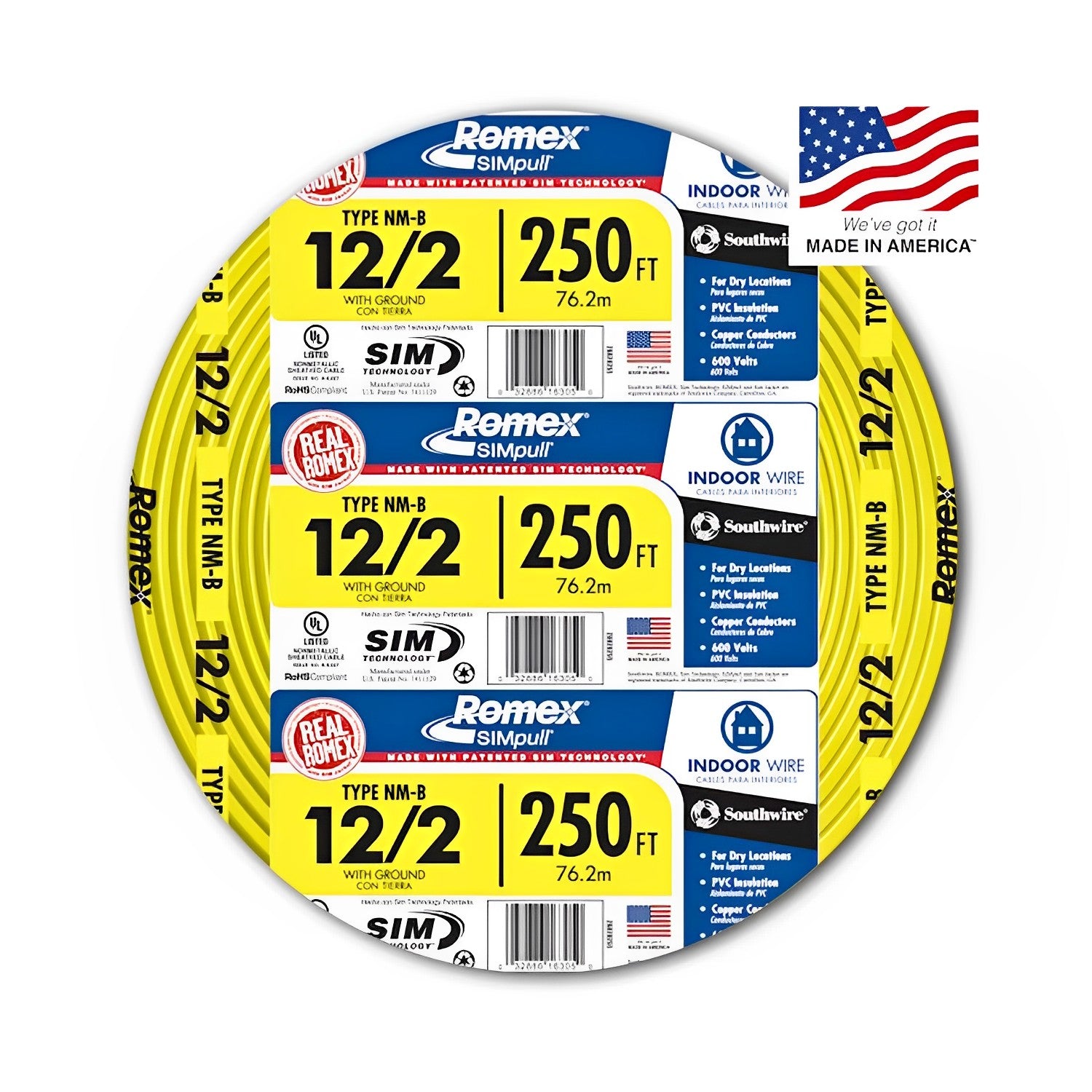

Elevate your wiring projects with the Southwire 250ft Roll 12/2 Copper NM-B Copper Wire Ground Cable. Featuring a 12/2 AWG configuration, this NM-B cable is perfect for residential wiring including outlets, switches, and other loads. Its copper conductor, known for its flexibility, ensures easy installation even in tight spaces and corners. Plus, the highly conductive and corrosion-resistant copper ensures efficient power transmission and durability. Wrapped in a SIMpull jacket, this Romex cable simplifies the pulling, stripping, and installation process. For added protection, it is insulated with polyvinyl chloride (PVC) material and covered in a nylon jacket to provide resistance against chemicals, moisture, and abrasion. Versatile in application, this electrical wire is suitable for exposed and concealed installations.
Features
- Allowable Ampacity: 20 Amps
- Voltage Rating: 600 Volts
- Nonmetallic (NM) sheathed electrical cable perfect for residential wiring as branch circuits for outlets, switches, and other loads
- 12/2 AWG indicates 12 American wire gauge with 2 conductors and 1 ground wire *Note: The larger the AWG, the smaller the wires
- Annealed (soft) copper conductor for flexibility, high conductivity, and excellent corrosion resistance
- Coated with the patented SIMpull cable jacket for a simplified pulling, stripping, and installation process
- Conductor insulation is 194°F-rated polyvinyl chloride (PVC), nylon jacketed for chemical, moisture, and abrasion resistance
- May be used for both exposed and concealed work in normally dry locations
- NEC, RoHS Compliant & UL certified
