Emergency Battery, 8W/90 Min, 170 VDC Output, Commercial Recessed LED Lighting
Bulk Savings
automatically applied on orders over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
Keep your lights on during power outages with a reliable Emergency Battery. With an 8W output rating, this emergency LED driver provides up to 90 minutes of consistent backup power for indoor fixtures, including panels, troffers, and high bays. It features a 12W max input, high-voltage output, and a durable lithium battery that recharges in 24 hours or less. The built-in self-test function and test light indicator allow for easy system monitoring and compliance. Designed for simple installation, it connects directly to the AC input and supports both 0-10V dimmable drivers up to 60W and non-dimmable LED fixtures up to 8W. Suitable for mounting heights up to 15.5 feet, this backup battery is an ideal solution for commercial recessed LED lighting.
Features
- Self-test capabilities
- Output power: 8W
- Input power: 12W max.
- Discharge time: 90 minutes
- Recharge time: ≥24 hours
- Battery type: Lithium
- High voltage output
- Kit includes an LED emergency pack and test light indicator
- Delivers consistent wattage to maintain illumination levels throughout the full emergency runtime without degradation
- Compatible with 120-277V LED drivers up to 60W with 0-10V dimming; also supports non-dimmable 120-277V LED fixtures rated at 8W or less
- Connects directly to the AC input of LED lights for easy installation
- 15.5ft maximum mounting height
- RoHS Compliant & UL certified
Compatible Fixtures
| PRE-57119 (Commercial LED indoor fixture) |
Keep your lights on during power outages with a reliable Emergency Battery. With an 8W output rating, this emergency LED driver provides up to 90 minutes of consistent backup power for indoor fixtures, including panels, troffers, and high bays. It features a 12W max input, high-voltage output, and a durable lithium battery that recharges in 24 hours or less. The built-in self-test function and test light indicator allow for easy system monitoring and compliance. Designed for simple installation, it connects directly to the AC input and supports both 0-10V dimmable drivers up to 60W and non-dimmable LED fixtures up to 8W. Suitable for mounting heights up to 15.5 feet, this backup battery is an ideal solution for commercial recessed LED lighting.
Features
- Self-test capabilities
- Output power: 8W
- Input power: 12W max.
- Discharge time: 90 minutes
- Recharge time: ≥24 hours
- Battery type: Lithium
- High voltage output
- Kit includes an LED emergency pack and test light indicator
- Delivers consistent wattage to maintain illumination levels throughout the full emergency runtime without degradation
- Compatible with 120-277V LED drivers up to 60W with 0-10V dimming; also supports non-dimmable 120-277V LED fixtures rated at 8W or less
- Connects directly to the AC input of LED lights for easy installation
- 15.5ft maximum mounting height
- RoHS Compliant & UL certified
Compatible Fixtures
| PRE-57119 (Commercial LED indoor fixture) |
Overview
Keep your lights on during power outages with a reliable Emergency Battery. With an 8W output rating, this emergency LED driver provides up to 90 minutes of consistent backup power for indoor fixtures, including panels, troffers, and high bays. It features a 12W max input, high-voltage output, and a durable lithium battery that recharges in 24 hours or less. The built-in self-test function and test light indicator allow for easy system monitoring and compliance. Designed for simple installation, it connects directly to the AC input and supports both 0-10V dimmable drivers up to 60W and non-dimmable LED fixtures up to 8W. Suitable for mounting heights up to 15.5 feet, this backup battery is an ideal solution for commercial recessed LED lighting.
Features
- Self-test capabilities
- Output power: 8W
- Input power: 12W max.
- Discharge time: 90 minutes
- Recharge time: ≥24 hours
- Battery type: Lithium
- High voltage output
- Kit includes an LED emergency pack and test light indicator
- Delivers consistent wattage to maintain illumination levels throughout the full emergency runtime without degradation
- Compatible with 120-277V LED drivers up to 60W with 0-10V dimming; also supports non-dimmable 120-277V LED fixtures rated at 8W or less
- Connects directly to the AC input of LED lights for easy installation
- 15.5ft maximum mounting height
- RoHS Compliant & UL certified
Compatible Fixtures
| PRE-57119 (Commercial LED indoor fixture) |
Details

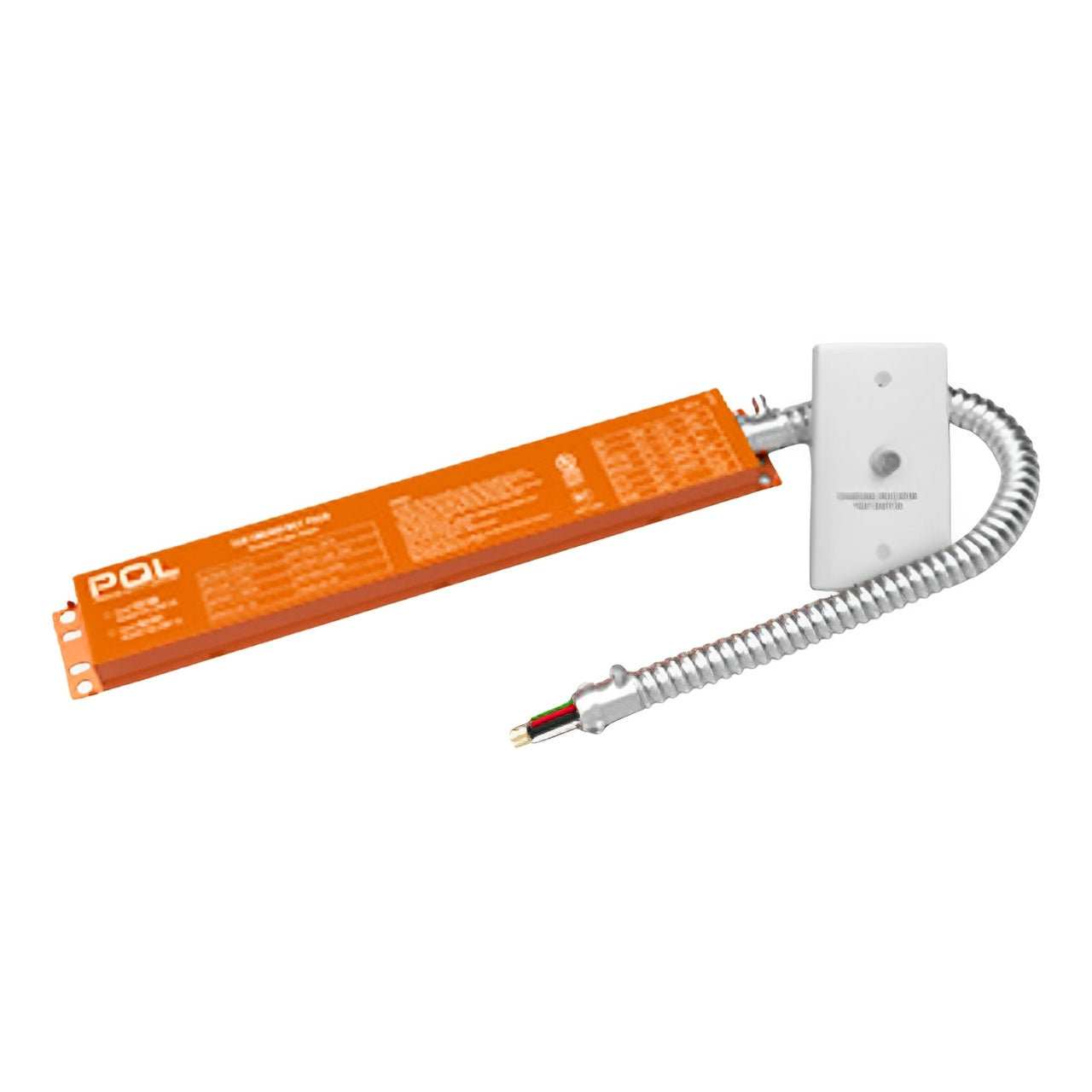

EMERGENCY PACK
The 8W Emergency Battery allows up to 90min of extra light in case of power outage. This emergency LED driver works with LED panels, troffers, downlights, linear lights, and high bay fixtures to provide added safety features for indoor residential and commercial spaces.
SELF TEST FEATURE
Enjoy added peace of mind with the built-in self-testing feature, complete with a physical button and side-mounted indicator to ensure your unit is always ready when you need it most.
BENEFITS
2-year manufacturer's warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.
CERTIFICATIONS
We uphold the highest standards by testing each product for optimal performance and safety. This LED emergency battery is RoHS Compliant & UL certified.
Specifications
| Emergency Battery, 8W/90 Min, 170 VDC Output, Commercial Recessed LED Lighting Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Wattage | 8W |
| Voltage | 100-347V |
| Output Voltage | 170 VDC |
| Operating Temperature | 41°F to 122°F |
| Moisture Rating | Damp Rated |
| Included Components | LED Emergency Pack & Test Light Indicator |
| Battery Type | Lithium |
| Backup Light Details | ~90-minutes |
| Charging Time | ≥24 Hours |
| Certifications | RoHS Compliant, UL |
| Warranty | 2-Year Manufacturer's Warranty |
