The 2ft Linear LED High Bay fixture's iron housing not only provides exceptional durability but also facilitates efficient heat dissipation, ensuring consistent light quality and extending an impressive 50,000-hour lifetime.

LED Linear High Bay, 2ft, 160W/110W/80W, Selectable Wattage & CCT, 22400 Lumens

Selectable 3500K-4000K-5000K
$84.99
$84.99
Skip to product information
The 2ft Linear LED High Bay fixture's iron housing not only provides exceptional durability but also facilitates efficient heat dissipation, ensuring consistent light quality and extending an impressive 50,000-hour lifetime.
  • The 2ft Linear LED High Bay fixture's iron housing not only provides exceptional durability but also facilitates efficient heat dissipation, ensuring consistent light quality and extending an impressive 50,000-hour lifetime.

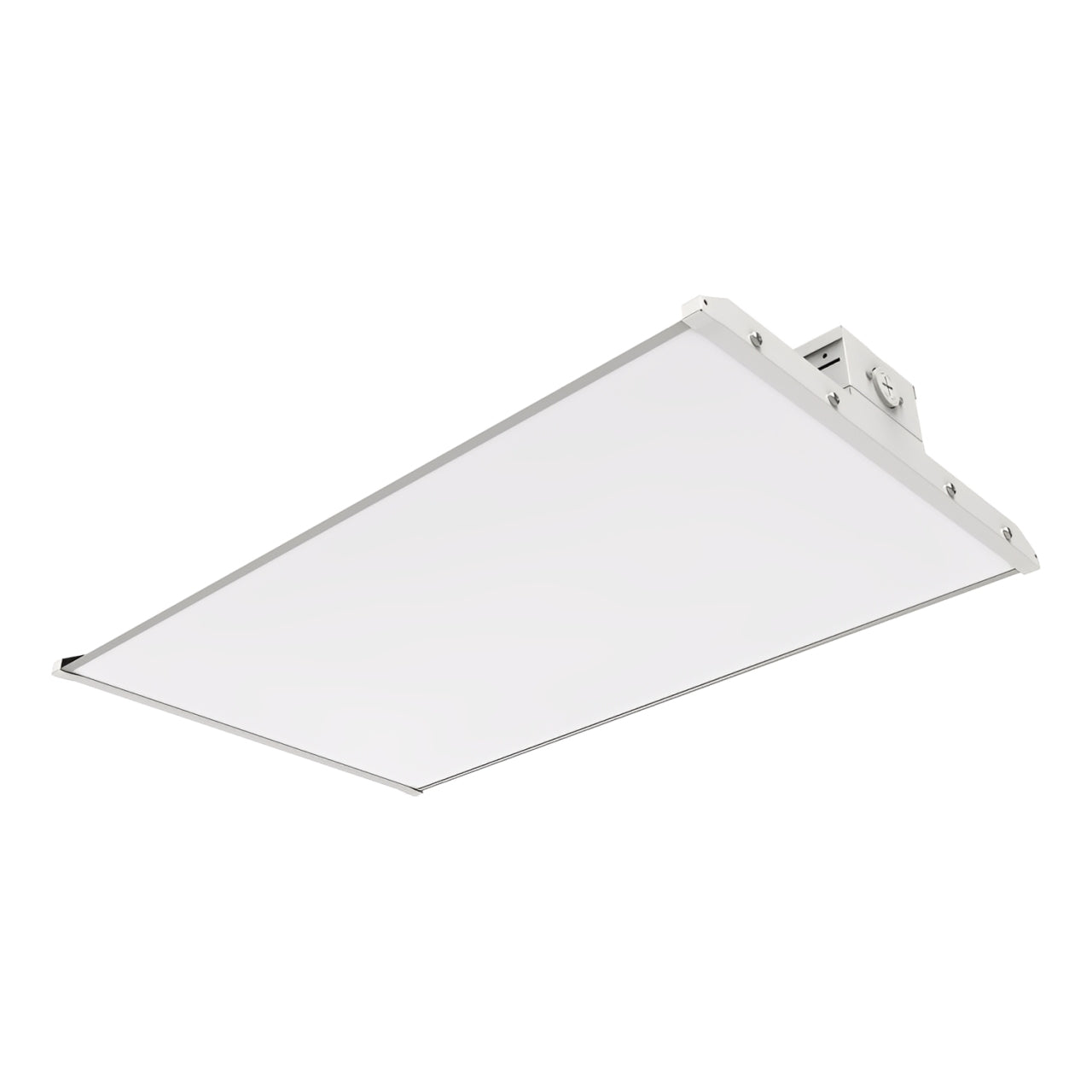

  • The 2-foot linear high bay fixture is equipped with a 5-core, 18AWG 0.16m cable that offers reliable power, ground, and seamless 0-10V dimming control, allowing for further energy savings and customizable light levels.
  • LED Linear High Bay, 2ft, 160W/110W/80W, Selectable Wattage & CCT, 22400 Lumens
  • Featuring selectable wattages and color temperatures, 0-10V dimming, 50,000-hour rated lifespan, and being suitable for damp locations, this 2ft Linear LED High Bay Light is ideal for modern industrial and commercial settings.

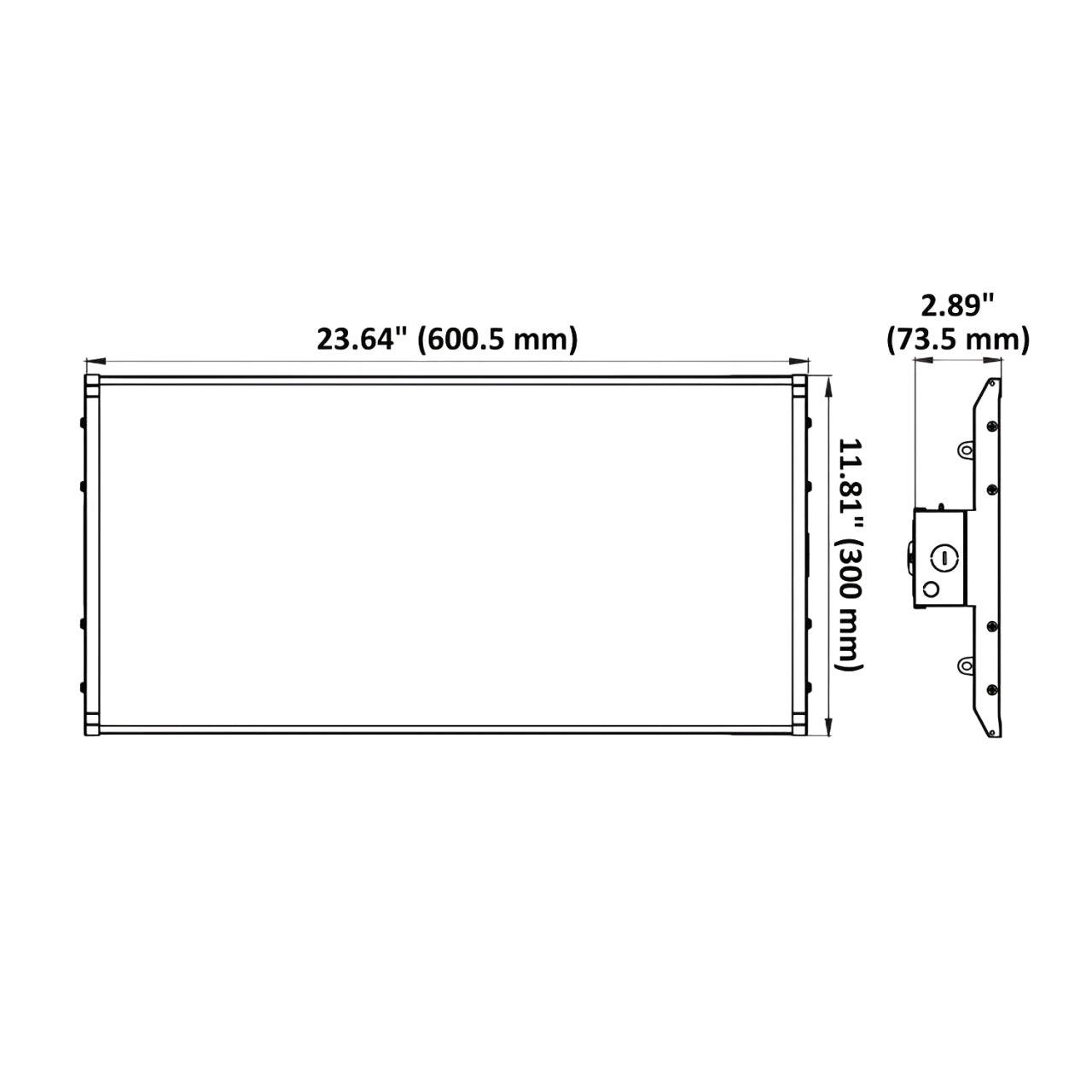

  • This linear high bay light fixture has a 2-foot size that can deliver up to 22400 lumens of brightness, perfect for brightening industrial and commercial spaces.
LED Linear High Bay, 2ft, 160W/110W/80W, Selectable Wattage & CCT, 22400 Lumens

LED Linear High Bay, 2ft, 160W/110W/80W, Selectable Wattage & CCT, 22400 Lumens

SKU:
$84.99
$84.99

Bulk Savings

automatically applied on carts over $500 - Learn more

  • Lumens:11200 - 22400LM
  • Wattage:80W/110W/160W
  • Dimming:Dimmable
  • CRI:80+
  • Location:Damp Rated
  • Warranty:5-Year Manufacturer's Warranty
Read More

Color Temperature Guide

Color Temperature Guide
Color: Selectable 3500K-4000K-5000K
Item Total: $84.99

Volume pricing

Large Volume Quote Request

Commercial order support

Volume discounts automatically apply at checkout when the combined total value of all products in your cart exceeds $500.

LED Linear High Bay, 2ft, 160W/110W/80W, Selectable Wattage & CCT, 22400 Lumens · SKU SKL-LHB07-L2-16080W-H

Automatic volume discounts

SPEND SAVE
$500 - $9995%
$1,000 - $1,99911%
$2,000 - $2,99912%
$3,000 - $3,99913%
$4,000 - $4,99914%
$5,000 - $5,99915%
$6,000 - $6,99916%
$7,000 - $7,99917%
$8,000 - $8,99918%
$9,000 - $9,99919%
$10,000 - $19,99920%
$20,000 - $49,99925%
Over $50,00030%

*Discounts apply to all products; rates may vary by product.

Live Chat

Volume Discounts automatically applied for orders $500+

Free Shipping on orders $100+
Ships within 1 business day

Overview

Brighten your workspace with high efficiency and versatility using the LED Linear High Bay light. This 2ft high bay fixture offers selectable wattages and color temperatures, giving you complete control over brightness and ambiance. With up to 22,400 lumens of output, it is perfect for illuminating high-ceiling areas with clear, even light. It is engineered with an advanced optical design that enhances light distribution and consistency, reducing shadows, glare, and energy waste. The durable housing not only promotes effective heat dissipation but also maintains consistent light quality over years of demanding use. With a 50,000-hour rated lifespan, this LED linear fixture is more than just a source of lighting—it is a long-term investment in reliability, performance, and energy savings.



 Features

    • Improves light efficiency and uniformity with an advanced optical design

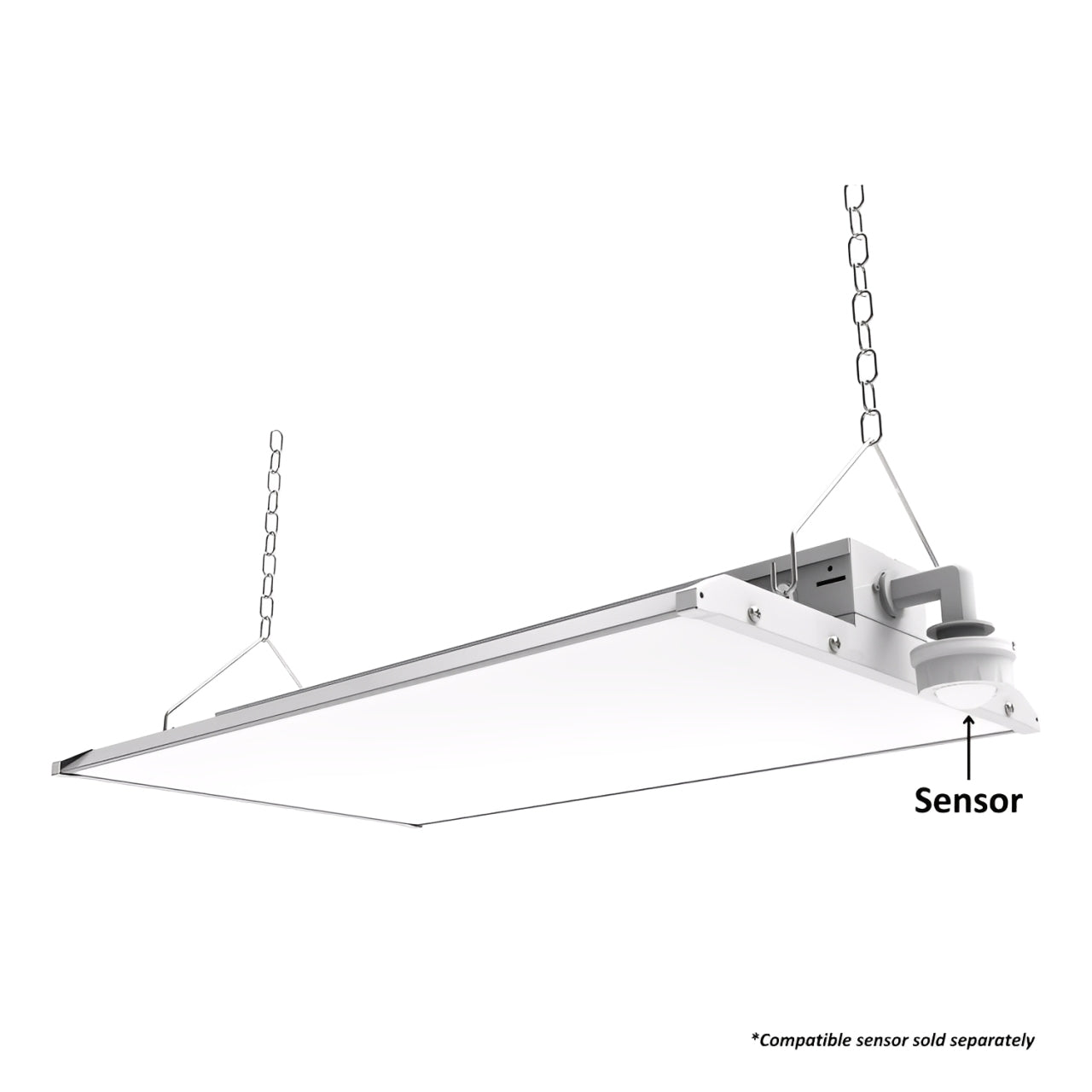

    • Optional microwave sensor for motion detection*
    • 3 selectable wattages (brightness):
      • 80W = 11200 lumens
      • 110W = 15400 lumens
      • 160W = 22400 lumens
    • 3 color temperature switches:
      • 3500K neutral white
      • 4000K cool white
      • 5000K daylight
    • Rugged galvanized iron plate housing for efficient heat dissipation and consistent light quality
    • Equipped with a 5-core, 18AWG 0.16m cable for reliable power, ground, and dimming control
    • V-hooks and chains included
    • 0-10V dimming capabilities
    • 50,000 lifetime hours
    • FCC, UL & DLC certified
    • 5-year manufacturer's warranty

*Compatible sensor sold separately



 Recommended Applications

    • Factories
    • Workshops
    • Warehouses
    • Gymnasiums
    • Retail stores
    • Fitness centers
    • Sports facilities
    • Shopping malls
    • Commercial and industrial applications

Details

SELECTABLE WATTAGE & CCT

Try out the various wattage options (80W, 110W, 160W) and color temperature options (3500K, 4000K, 5000K) using the slider switch on back of the LED Linear High Bay light fixture, then lock in your preference during the installation process.

EASY INSTALL & OPERATION

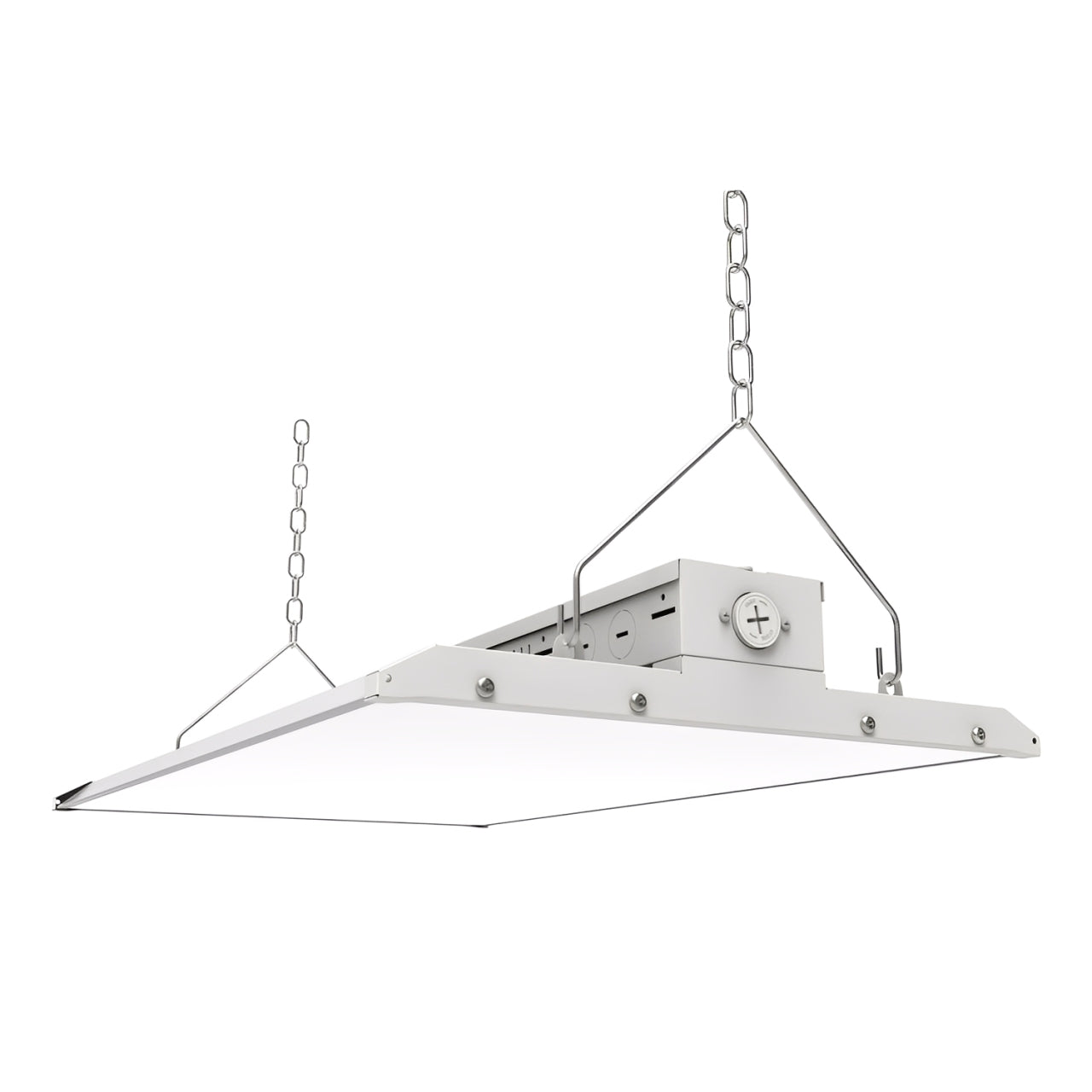

Easily install this linear high bay LED light fixture using the included V-hooks and chains.

BENEFITS

5-year manufacturer's warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.

CERTIFICATIONS

We uphold the highest standards by testing each product for optimal performance and safety. This 2-foot ceiling light is FCC, UL & DLC certified.

Specifications

Brand NSL
Lumens 11200 - 22400 LM
Efficacy 140 LM/W
Wattage 80W/110W/160 W
Voltage 120-277 V
Operating Temperature -40°F to 113°F
Dimmable Dimmable
Dimming Details 0-10V Dimming
Color Temperature 3500K, 4000K, 5000K
CRI 80 +
Beam Angle 89 °
Moisture Rating Damp Rated
Components V-Hooks & Chains
Power Type Hardwired
Mount Type Hanging
Material Iron Plate Housing
Certifications FCC, UL, DLC
Lifetime 50,000 Hours
Warranty 5-Year Manufacturer's Warranty
