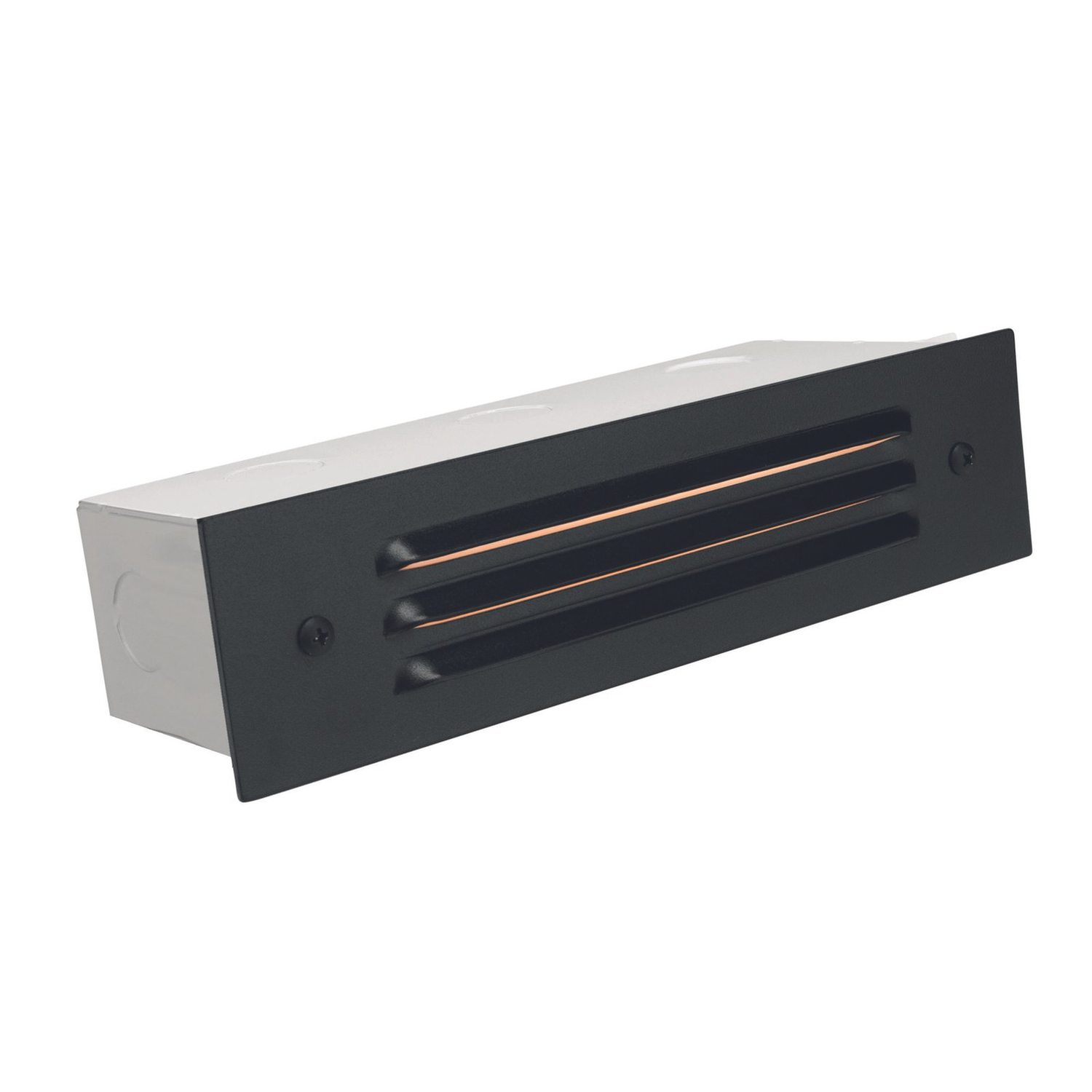

3-Louver Brick Step Light, Recessed, 9 Inch, Black, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Black 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Stamped aluminum faceplate with polyester UV coat and 3-louver lensed design
- Finish: Black
- Faceplate size: 9" W x 2-1/4" H
- Heavy-duty corrosion-resistant galvanized steel housing/mount box with self-leveling adjustable brackets
- High-impact white polycarbonate lens sealed to faceplate
- Aluminum reflector
- Socket: (2) SC bayonet (SCB) sockets; accepts 12V SC bayonet lamps (max 27W halogen per socket)
- Bundled LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, dimmable, 25,000-hour rated life; LED voltage range 8–21V; approx 96 Lumens/W efficacy; 35W equivalent
- Requires remote 12V transformer
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Recessed-mount back box with five 1/2" NPT inlets
- Surface-mount faceplate supplied
This Black 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Stamped aluminum faceplate with polyester UV coat and 3-louver lensed design
- Finish: Black
- Faceplate size: 9" W x 2-1/4" H
- Heavy-duty corrosion-resistant galvanized steel housing/mount box with self-leveling adjustable brackets
- High-impact white polycarbonate lens sealed to faceplate
- Aluminum reflector
- Socket: (2) SC bayonet (SCB) sockets; accepts 12V SC bayonet lamps (max 27W halogen per socket)
- Bundled LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, dimmable, 25,000-hour rated life; LED voltage range 8–21V; approx 96 Lumens/W efficacy; 35W equivalent
- Requires remote 12V transformer
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Recessed-mount back box with five 1/2" NPT inlets
- Surface-mount faceplate supplied
Overview
This Black 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Stamped aluminum faceplate with polyester UV coat and 3-louver lensed design
- Finish: Black
- Faceplate size: 9" W x 2-1/4" H
- Heavy-duty corrosion-resistant galvanized steel housing/mount box with self-leveling adjustable brackets
- High-impact white polycarbonate lens sealed to faceplate
- Aluminum reflector
- Socket: (2) SC bayonet (SCB) sockets; accepts 12V SC bayonet lamps (max 27W halogen per socket)
- Bundled LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, dimmable, 25,000-hour rated life; LED voltage range 8–21V; approx 96 Lumens/W efficacy; 35W equivalent
- Requires remote 12V transformer
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Recessed-mount back box with five 1/2" NPT inlets
- Surface-mount faceplate supplied
Specifications
| 3-Louver Brick Step Light, Recessed, 9 Inch, Black, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 9" W x 2-1/4" H (9" x 2-1/4") |
| Finish | Black |
| Material | Stamped aluminum faceplate (polyester UV coated); polycarbonate lens; galvanized steel housing; aluminum reflector |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) year limited warranty on housing and faceplate; five (5) year manufacturer's warranty on the LED lamp |
