3-Louver Brick Step Light, Recessed, 9 Inch, Black, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

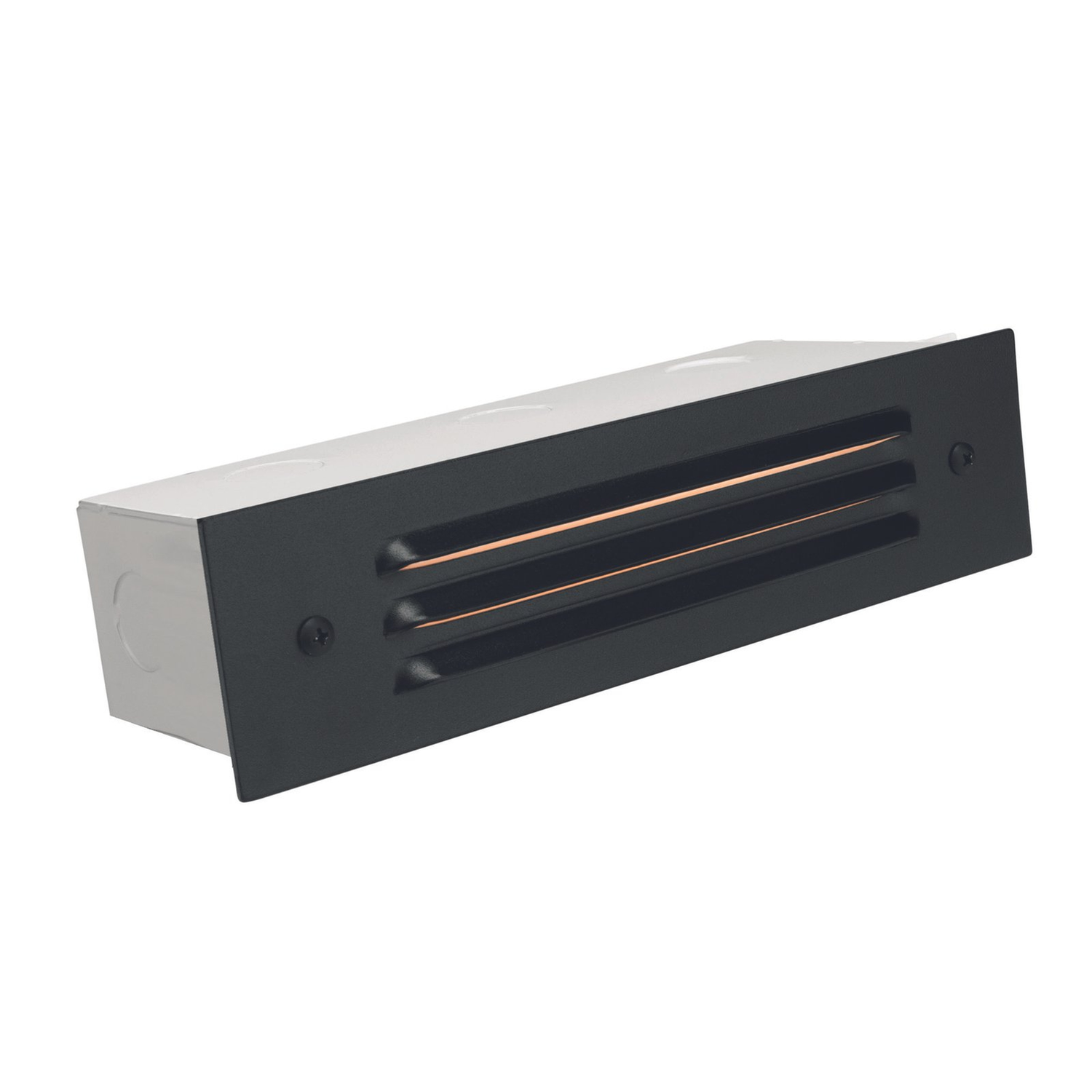

This Black 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Stamped aluminum 3-louver faceplate with polyester UV coating, finished in Black
- Heavy-duty corrosion-resistant galvanized steel housing with self-leveling adjustable bars and brackets for alignment
- High-impact white polycarbonate lens and aluminum reflector with silicone gasket sealing faceplate to housing
- Includes two SCB bayonet LED lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K each, CRI 80, 25,000-hour rated life; dimmable; LED lamp voltage range 8–21V
- Sockets: two SCB bayonet (BA15S / SCB compatible); fixture maximum lamp rating 27W halogen per socket
- Requires remote 12V transformer
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Recessed mount back box with five 1/2" NPT inlets recommended for concrete, brick, or masonry
- Surface mount supplied
- Faceplate size: 9" W x 2.25" H
- Five-year warranty on fixture housing; five-year manufacturer's warranty on lamps
This Black 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Stamped aluminum 3-louver faceplate with polyester UV coating, finished in Black
- Heavy-duty corrosion-resistant galvanized steel housing with self-leveling adjustable bars and brackets for alignment
- High-impact white polycarbonate lens and aluminum reflector with silicone gasket sealing faceplate to housing
- Includes two SCB bayonet LED lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K each, CRI 80, 25,000-hour rated life; dimmable; LED lamp voltage range 8–21V
- Sockets: two SCB bayonet (BA15S / SCB compatible); fixture maximum lamp rating 27W halogen per socket
- Requires remote 12V transformer
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Recessed mount back box with five 1/2" NPT inlets recommended for concrete, brick, or masonry
- Surface mount supplied
- Faceplate size: 9" W x 2.25" H
- Five-year warranty on fixture housing; five-year manufacturer's warranty on lamps
Overview
This Black 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Stamped aluminum 3-louver faceplate with polyester UV coating, finished in Black
- Heavy-duty corrosion-resistant galvanized steel housing with self-leveling adjustable bars and brackets for alignment
- High-impact white polycarbonate lens and aluminum reflector with silicone gasket sealing faceplate to housing
- Includes two SCB bayonet LED lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K each, CRI 80, 25,000-hour rated life; dimmable; LED lamp voltage range 8–21V
- Sockets: two SCB bayonet (BA15S / SCB compatible); fixture maximum lamp rating 27W halogen per socket
- Requires remote 12V transformer
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Recessed mount back box with five 1/2" NPT inlets recommended for concrete, brick, or masonry
- Surface mount supplied
- Faceplate size: 9" W x 2.25" H
- Five-year warranty on fixture housing; five-year manufacturer's warranty on lamps
Specifications
| 3-Louver Brick Step Light, Recessed, 9 Inch, Black, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | Black |
| Material | Aluminum |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) year warranty on fixture housing; five (5) year manufacturer's warranty on lamps |
