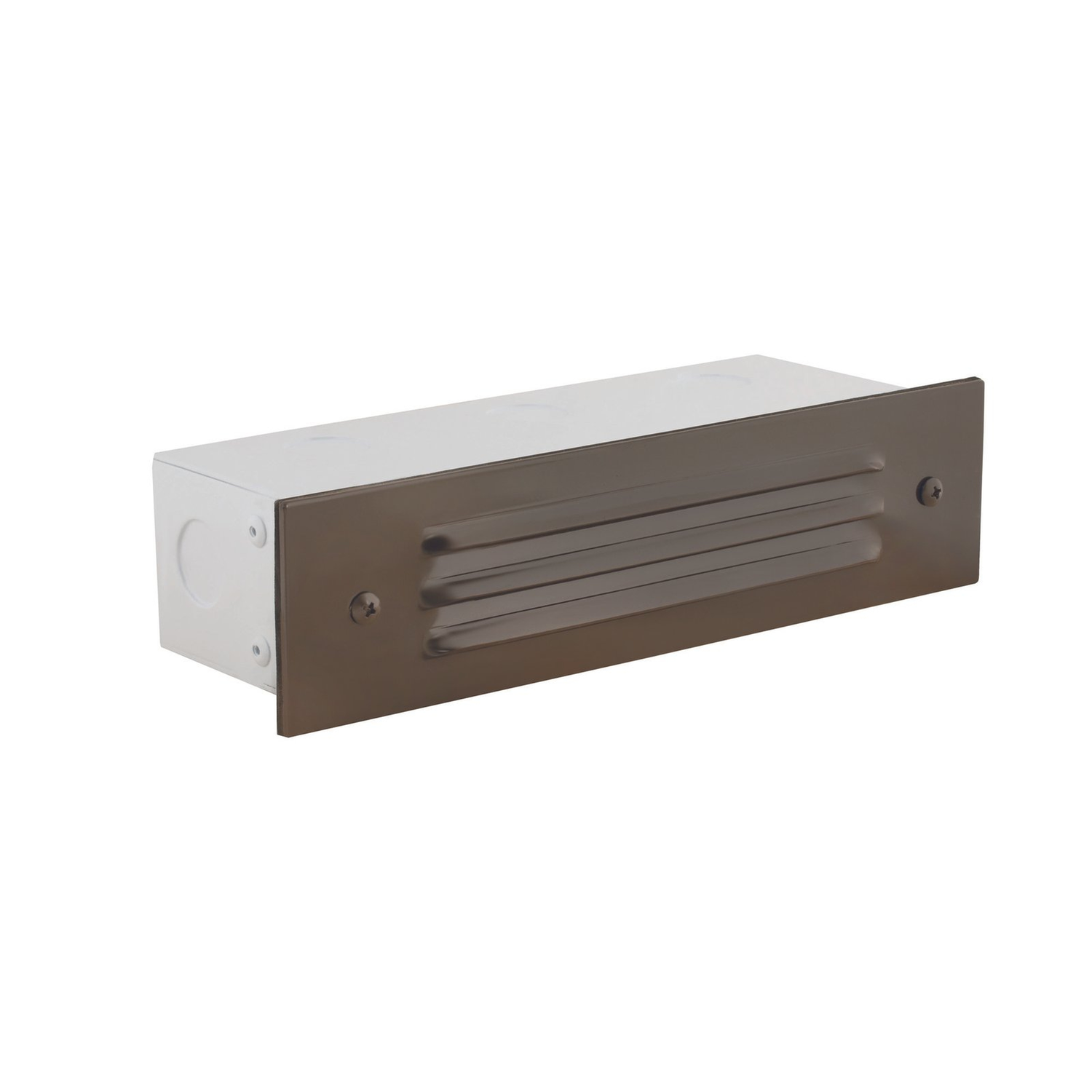

3-Louver Brick Step Light, Recessed, 9 Inch, Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Bronze 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brick and step light with aluminum UV powder-coated faceplate in bronze finish
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, 25,000-hour rated life (approximately 35W halogen equivalent)
- Two 12V SCB bayonet sockets; 27W max (halogen)
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars for masonry installations
- LED operating voltage range: 8–21V; requires a remote 12V transformer (sold separately)
- Prewired with 3 ft 18-2 SPT1-W direct burial cord and a high-impact white polycarbonate lens sealed with a silicone gasket
- Recessed mount back box with five 1/2" NPT inlets for concrete, brick, and masonry installations
- Faceplate dimensions: 9" W x 2-1/4" H
- Five-year limited warranty on fixture housing and faceplate
This Bronze 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brick and step light with aluminum UV powder-coated faceplate in bronze finish
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, 25,000-hour rated life (approximately 35W halogen equivalent)
- Two 12V SCB bayonet sockets; 27W max (halogen)
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars for masonry installations
- LED operating voltage range: 8–21V; requires a remote 12V transformer (sold separately)
- Prewired with 3 ft 18-2 SPT1-W direct burial cord and a high-impact white polycarbonate lens sealed with a silicone gasket
- Recessed mount back box with five 1/2" NPT inlets for concrete, brick, and masonry installations
- Faceplate dimensions: 9" W x 2-1/4" H
- Five-year limited warranty on fixture housing and faceplate
Overview
This Bronze 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brick and step light with aluminum UV powder-coated faceplate in bronze finish
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, 25,000-hour rated life (approximately 35W halogen equivalent)
- Two 12V SCB bayonet sockets; 27W max (halogen)
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars for masonry installations
- LED operating voltage range: 8–21V; requires a remote 12V transformer (sold separately)
- Prewired with 3 ft 18-2 SPT1-W direct burial cord and a high-impact white polycarbonate lens sealed with a silicone gasket
- Recessed mount back box with five 1/2" NPT inlets for concrete, brick, and masonry installations
- Faceplate dimensions: 9" W x 2-1/4" H
- Five-year limited warranty on fixture housing and faceplate
Specifications
| 3-Louver Brick Step Light, Recessed, 9 Inch, Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate: 9" W x 2-1/4" H |
| Finish | Bronze |
| Material | Aluminum UV powder-coated faceplate, galvanized steel back box, high-impact white polycarbonate lens |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) year limited warranty on LED module |
