- Lumens: 200 - 210LM
- Voltage: Low Voltage
- Wattage: 2W
- Dimming: Dimmable
- Warranty: Five-year limited warranty on fixture housing and faceplate; five (5) year manufacturer's warranty on the LED lamp.

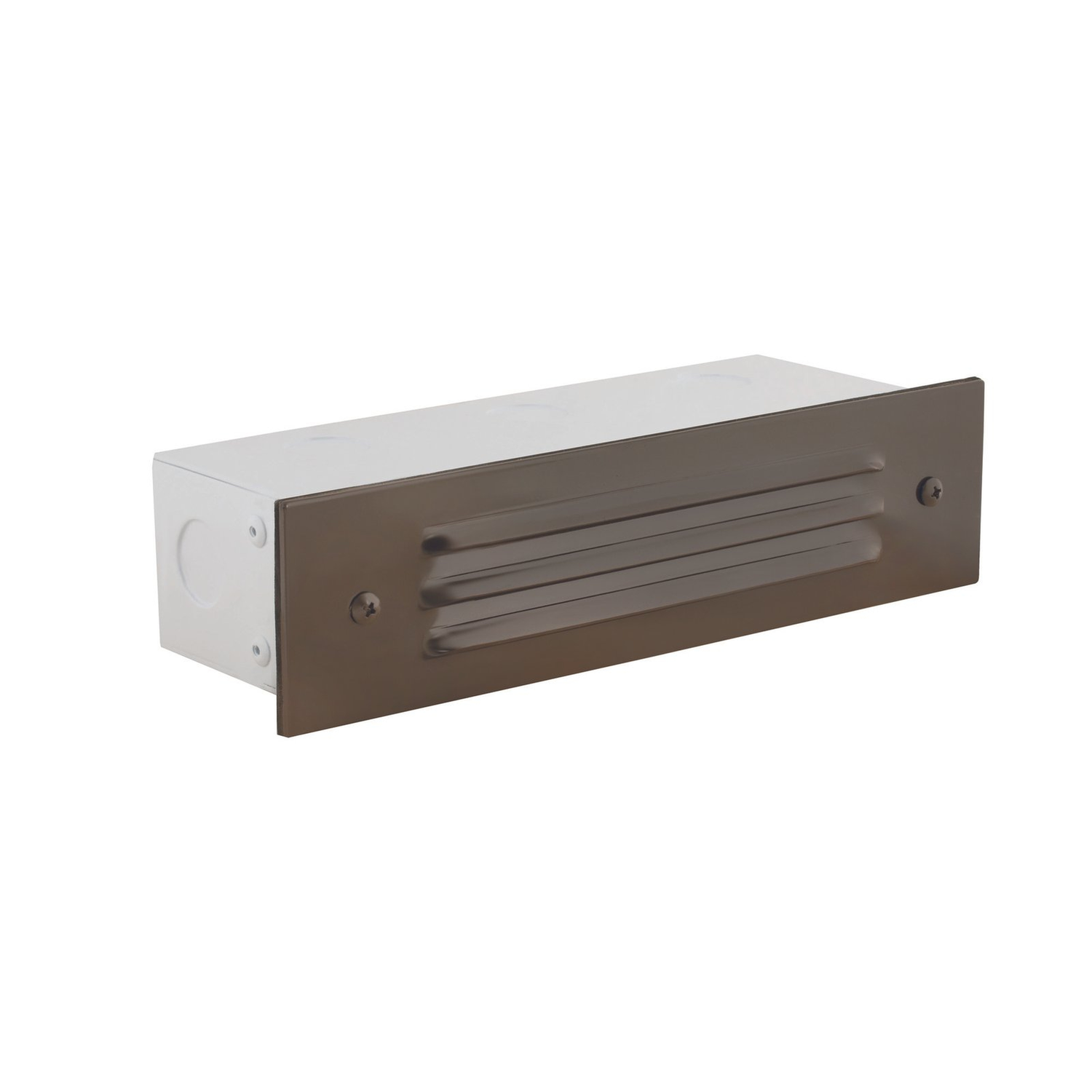

This Bronze 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum UV powder-coated 3-louver faceplate in Bronze with high-impact white polycarbonate lens and silicone gasket sealing the faceplate to the housing
- Galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT inlets for concrete, brick, or masonry installations
- Two 12V bayonet (SCB) sockets rated 27W max (halogen) and compatible with BA15S / SCB lamps
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour life, ~20W halogen equivalent
- LED operating voltage range 8–21V
- Remote 12V transformer required (sold separately)
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Faceplate dimensions: 9" W x 2-1/4" H
- Available faceplate finishes: Black, Bronze, Rust, White
- Five-year limited warranty on fixture housing and faceplate
