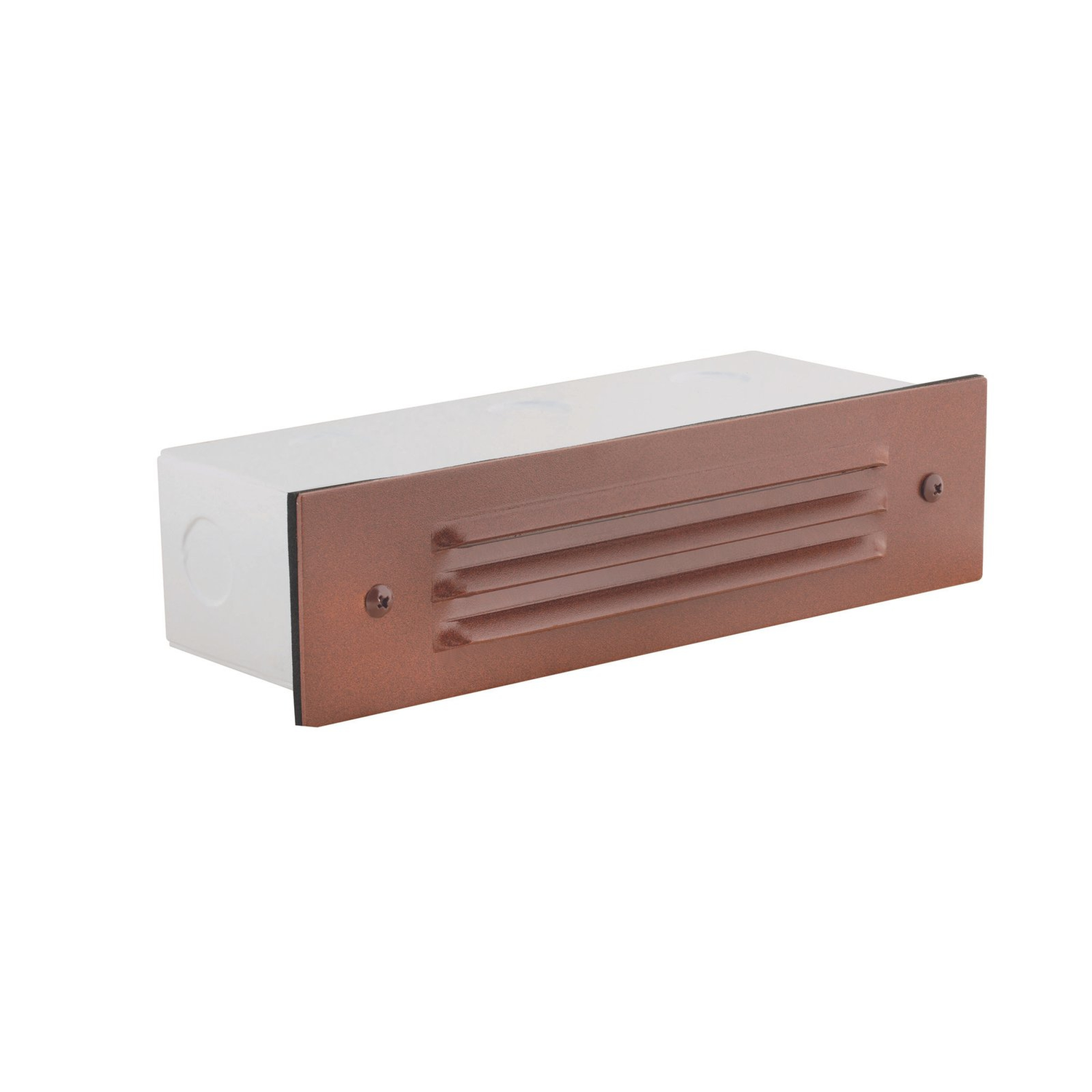

3-Louver Brick Step Light, Recessed, 9 Inch, Rust, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Rust 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum 3-louver brick/step light in rust finish
- Architectural-grade faceplate with UV powder coat; silicone gasket sealed to housing
- Includes two LED SC Bayonet lamps: 2.5W per lamp (240 lumens at 2700K and 250 lumens at 3000K total), CRI 80, dimmable, 96 Lumens/W efficacy, 25,000-hour rated life, 35W halogen equivalent
- Two SC Bayonet sockets attached to aluminum reflector
- Electrical: LED lamp voltage range 8–21V
- Heavy-duty, corrosion-resistant galvanized steel recessed mount back box with self-leveling adjustable bars and five 1/2 Inch NPT conduit inlets
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord for installation in concrete, brick, or masonry
- Faceplate dimensions: 9 Inch W x 2-1/4 Inch H
- Finish options: Black, Bronze, Rust, White
This Rust 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum 3-louver brick/step light in rust finish
- Architectural-grade faceplate with UV powder coat; silicone gasket sealed to housing
- Includes two LED SC Bayonet lamps: 2.5W per lamp (240 lumens at 2700K and 250 lumens at 3000K total), CRI 80, dimmable, 96 Lumens/W efficacy, 25,000-hour rated life, 35W halogen equivalent
- Two SC Bayonet sockets attached to aluminum reflector
- Electrical: LED lamp voltage range 8–21V
- Heavy-duty, corrosion-resistant galvanized steel recessed mount back box with self-leveling adjustable bars and five 1/2 Inch NPT conduit inlets
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord for installation in concrete, brick, or masonry
- Faceplate dimensions: 9 Inch W x 2-1/4 Inch H
- Finish options: Black, Bronze, Rust, White
Overview
This Rust 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum 3-louver brick/step light in rust finish
- Architectural-grade faceplate with UV powder coat; silicone gasket sealed to housing
- Includes two LED SC Bayonet lamps: 2.5W per lamp (240 lumens at 2700K and 250 lumens at 3000K total), CRI 80, dimmable, 96 Lumens/W efficacy, 25,000-hour rated life, 35W halogen equivalent
- Two SC Bayonet sockets attached to aluminum reflector
- Electrical: LED lamp voltage range 8–21V
- Heavy-duty, corrosion-resistant galvanized steel recessed mount back box with self-leveling adjustable bars and five 1/2 Inch NPT conduit inlets
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord for installation in concrete, brick, or masonry
- Faceplate dimensions: 9 Inch W x 2-1/4 Inch H
- Finish options: Black, Bronze, Rust, White
Specifications
| 3-Louver Brick Step Light, Recessed, 9 Inch, Rust, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | Rust |
| Material | Aluminum faceplate; galvanized steel back box |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
