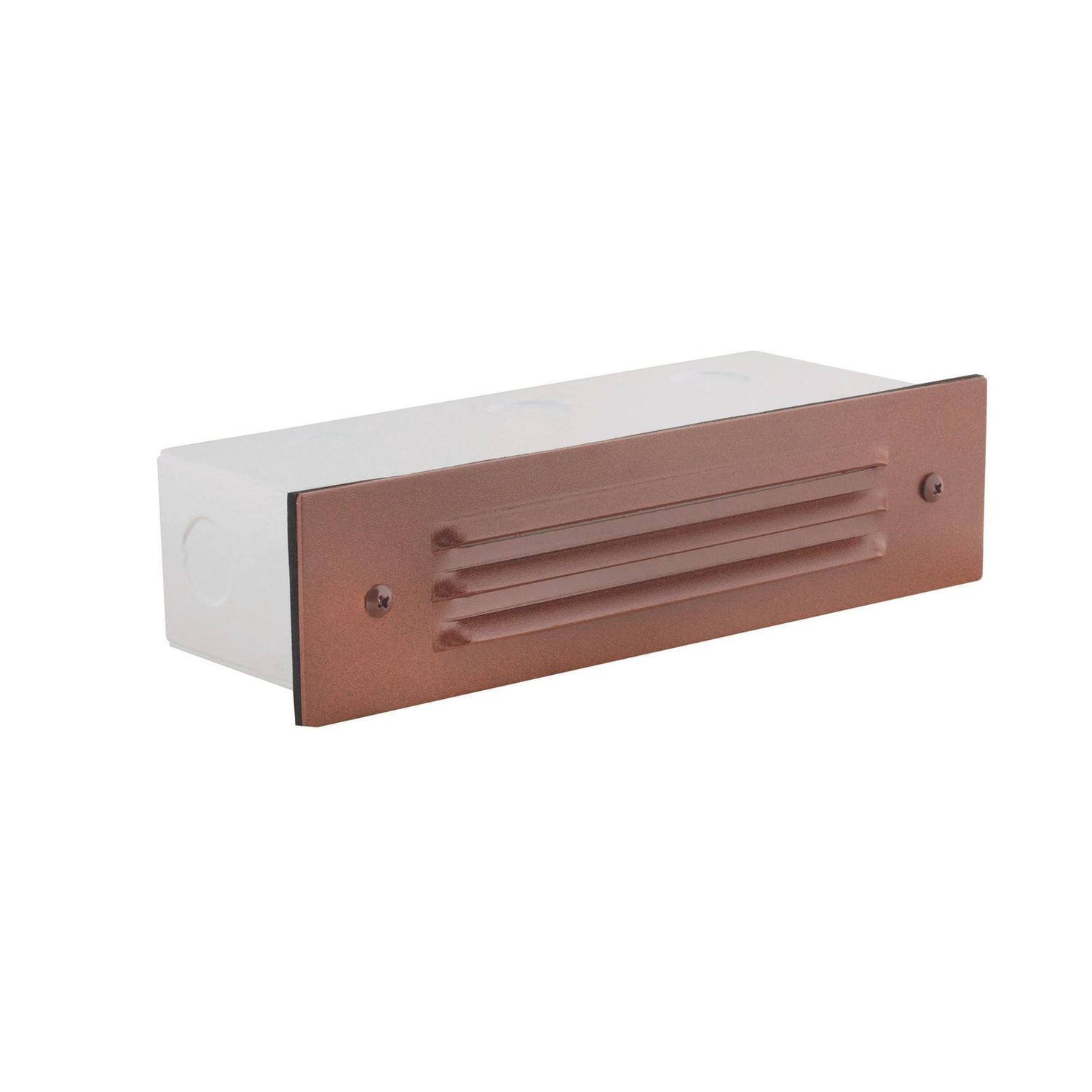

3-Louver Brick Step Light, Recessed, 9 Inch, Rust, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Rust 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum 3-louver brick/step light with rust finish; UV powder-coated aluminum faceplate with silicone gasket sealing to the housing
- High-impact white polycarbonate lens sealed to the faceplate for protected, even illumination
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT conduit inlets
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord for masonry or concrete installations
- Two SC Bayonet sockets (2x SCB), 12V, 27W max halogen
- Includes two LED SC Bayonet lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, dimmable, 25,000-hour lifetime, LED voltage range 8–21V
- Faceplate dimensions: 9" W x 2-1/4" H
- Remote 12V transformer required
- 5-year limited fixture warranty and 5-year manufacturer's lamp warranty
This Rust 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum 3-louver brick/step light with rust finish; UV powder-coated aluminum faceplate with silicone gasket sealing to the housing
- High-impact white polycarbonate lens sealed to the faceplate for protected, even illumination
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT conduit inlets
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord for masonry or concrete installations
- Two SC Bayonet sockets (2x SCB), 12V, 27W max halogen
- Includes two LED SC Bayonet lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, dimmable, 25,000-hour lifetime, LED voltage range 8–21V
- Faceplate dimensions: 9" W x 2-1/4" H
- Remote 12V transformer required
- 5-year limited fixture warranty and 5-year manufacturer's lamp warranty
Overview
This Rust 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum 3-louver brick/step light with rust finish; UV powder-coated aluminum faceplate with silicone gasket sealing to the housing
- High-impact white polycarbonate lens sealed to the faceplate for protected, even illumination
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT conduit inlets
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord for masonry or concrete installations
- Two SC Bayonet sockets (2x SCB), 12V, 27W max halogen
- Includes two LED SC Bayonet lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, dimmable, 25,000-hour lifetime, LED voltage range 8–21V
- Faceplate dimensions: 9" W x 2-1/4" H
- Remote 12V transformer required
- 5-year limited fixture warranty and 5-year manufacturer's lamp warranty
Specifications
| 3-Louver Brick Step Light, Recessed, 9 Inch, Rust, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | Rust |
| Material | UV powder-coated aluminum faceplate; galvanized steel recessed back box |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) year limited warranty on fixture housing and faceplate; Five (5) year manufacturer's warranty for LED module |
