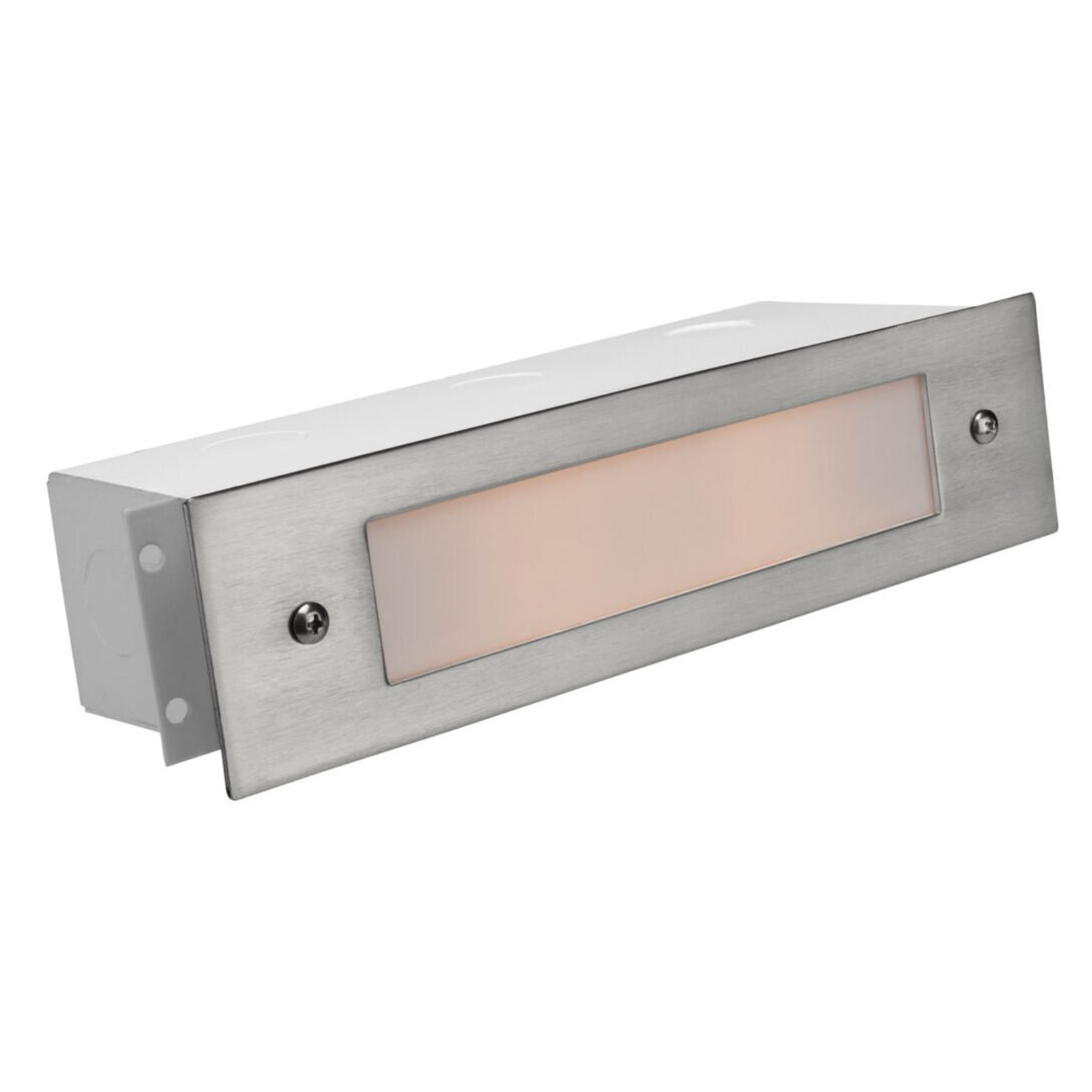

Brass Lensed Brick Step Light, Recessed, 9 Inch, Silver Plated, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Silver Plated brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light with faceplate 9" W x 2-1/4" H and recessed back box
- Solid brass faceplate with silicone gasket for weather-tight protection
- Silver Plated finish; galvanized steel recessed back box with self-leveling adjustable mounting brackets and three 1/2" NPT inlets; aluminum reflector
- Bayonet sockets supporting 2x SCB base; 27W max per socket at 12V
- Includes 2.5W LED bayonet lamp: 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, 25,000-hour lifetime
- Dimmable LED operation; operating voltage 8–21V
- Prewired with 12" direct-burial lead for recessed masonry installation
- High-impact white polycarbonate frosted lens for even light distribution
This Silver Plated brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light with faceplate 9" W x 2-1/4" H and recessed back box
- Solid brass faceplate with silicone gasket for weather-tight protection
- Silver Plated finish; galvanized steel recessed back box with self-leveling adjustable mounting brackets and three 1/2" NPT inlets; aluminum reflector
- Bayonet sockets supporting 2x SCB base; 27W max per socket at 12V
- Includes 2.5W LED bayonet lamp: 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, 25,000-hour lifetime
- Dimmable LED operation; operating voltage 8–21V
- Prewired with 12" direct-burial lead for recessed masonry installation
- High-impact white polycarbonate frosted lens for even light distribution
Overview
This Silver Plated brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light with faceplate 9" W x 2-1/4" H and recessed back box
- Solid brass faceplate with silicone gasket for weather-tight protection
- Silver Plated finish; galvanized steel recessed back box with self-leveling adjustable mounting brackets and three 1/2" NPT inlets; aluminum reflector
- Bayonet sockets supporting 2x SCB base; 27W max per socket at 12V
- Includes 2.5W LED bayonet lamp: 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, 25,000-hour lifetime
- Dimmable LED operation; operating voltage 8–21V
- Prewired with 12" direct-burial lead for recessed masonry installation
- High-impact white polycarbonate frosted lens for even light distribution
Specifications
| Brass Lensed Brick Step Light, Recessed, 9 Inch, Silver Plated, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | Silver Plated |
| Material | Solid brass faceplate; aluminum reflector; high-impact polycarbonate frosted lens |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on solid brass faceplate; five (5) years limited warranty on LED module |
