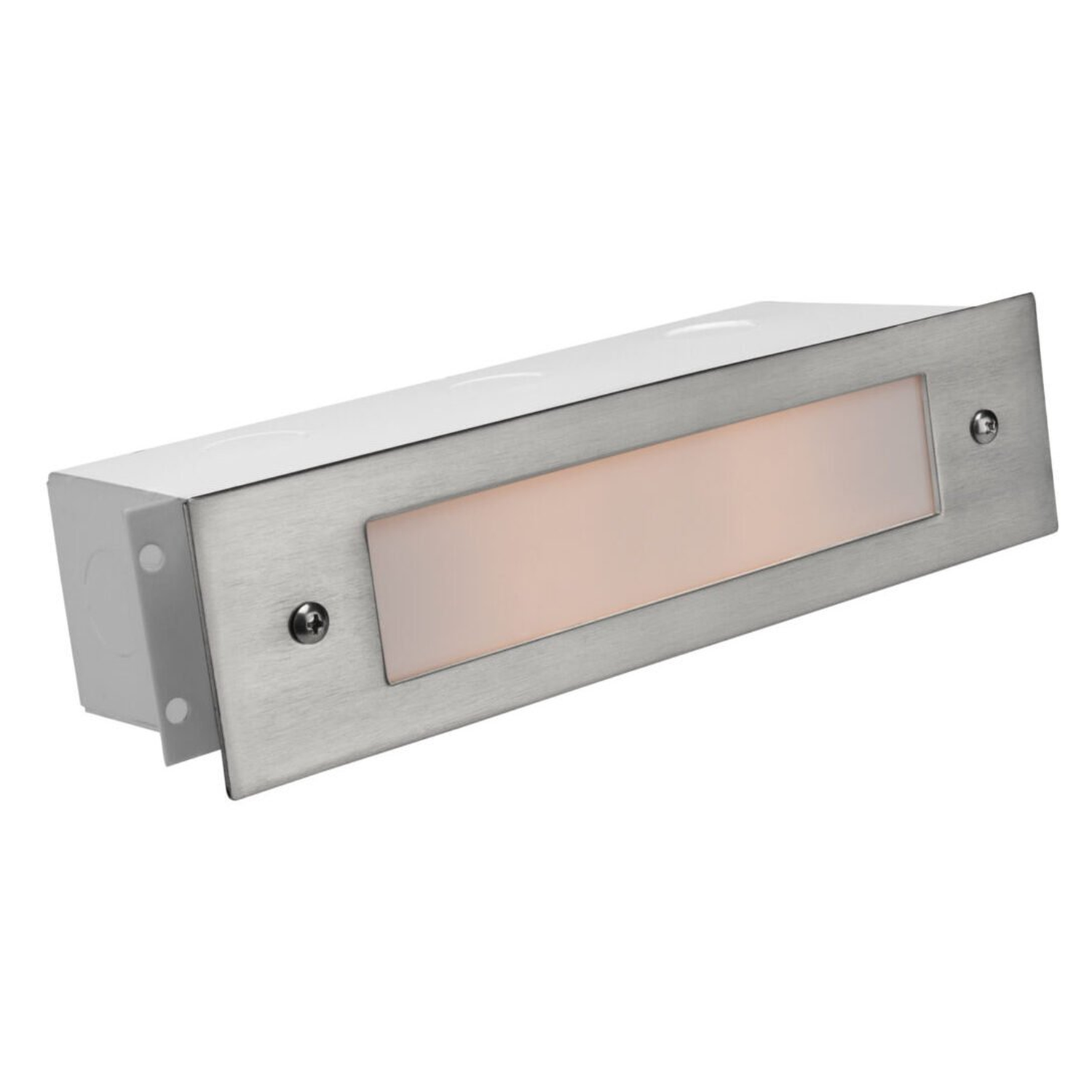

Brass Lensed Brick Step Light, Recessed, 9 Inch, Silver Plated, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Silver Plated brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light in Silver Plated finish
- Solid brass faceplate with silicone gasket for weather-tight protection
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable mounting brackets
- Two bayonet (SCB) sockets; includes 2W LED lamps delivering 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour lifetime
- 12V system compatibility; LED operating voltage range 9–17V
- Faceplate dimensions: 9" W x 2-1/4" H
- Max lamp rating 27W per socket
- Prewired with 12" direct-burial lead; high-impact white polycarbonate frosted lens over aluminum reflector
This Silver Plated brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light in Silver Plated finish
- Solid brass faceplate with silicone gasket for weather-tight protection
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable mounting brackets
- Two bayonet (SCB) sockets; includes 2W LED lamps delivering 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour lifetime
- 12V system compatibility; LED operating voltage range 9–17V
- Faceplate dimensions: 9" W x 2-1/4" H
- Max lamp rating 27W per socket
- Prewired with 12" direct-burial lead; high-impact white polycarbonate frosted lens over aluminum reflector
Overview
This Silver Plated brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light in Silver Plated finish
- Solid brass faceplate with silicone gasket for weather-tight protection
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable mounting brackets
- Two bayonet (SCB) sockets; includes 2W LED lamps delivering 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour lifetime
- 12V system compatibility; LED operating voltage range 9–17V
- Faceplate dimensions: 9" W x 2-1/4" H
- Max lamp rating 27W per socket
- Prewired with 12" direct-burial lead; high-impact white polycarbonate frosted lens over aluminum reflector
Specifications
| Brass Lensed Brick Step Light, Recessed, 9 Inch, Silver Plated, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | Silver Plated |
| Material | Solid brass faceplate; aluminum reflector; high-impact white polycarbonate frosted lens; galvanized steel back box |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on housing and faceplate; Five (5) years Manufacturer's Warranty for LED module |
