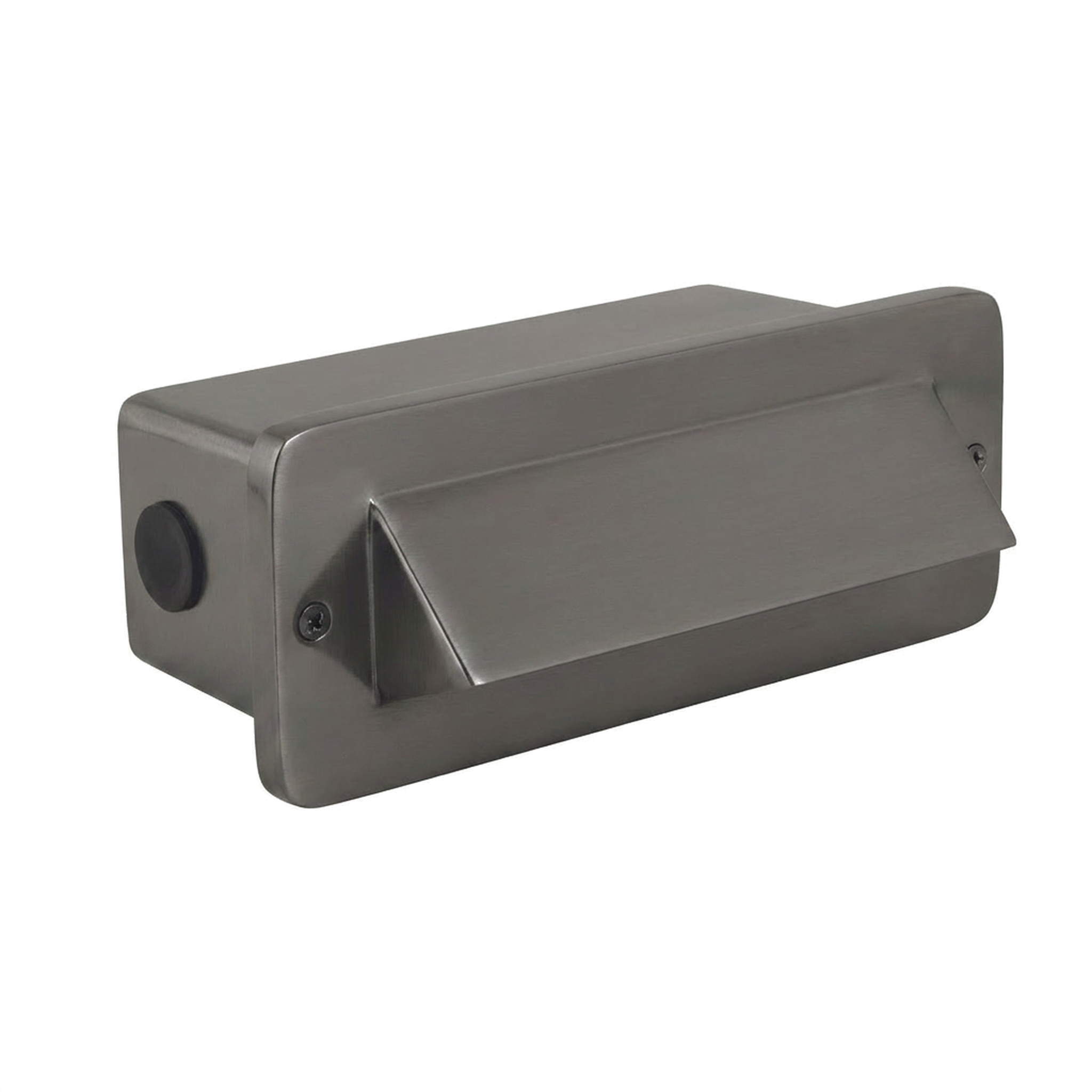

Brass Hooded Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light with architectural 1-louvered boxed design; heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate
- Finish: Gun Metal with natural toning process (Antique Bronze option available)
- Lens: frosted heat-resistant glass with silicone gasket for weather-tight protection
- Sockets: (2) SCB bayonet sockets with aluminum reflector; remote 12V transformer required
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour rated life, 35W halogen equivalent
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Surface-mount hardware supplied; recessed back box recommended for masonry
- Faceplate: 8-1/4" W x 3-1/4" H
- Limited lifetime warranty on fixture housing
This Gun Metal brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light with architectural 1-louvered boxed design; heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate
- Finish: Gun Metal with natural toning process (Antique Bronze option available)
- Lens: frosted heat-resistant glass with silicone gasket for weather-tight protection
- Sockets: (2) SCB bayonet sockets with aluminum reflector; remote 12V transformer required
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour rated life, 35W halogen equivalent
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Surface-mount hardware supplied; recessed back box recommended for masonry
- Faceplate: 8-1/4" W x 3-1/4" H
- Limited lifetime warranty on fixture housing
Overview
This Gun Metal brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Step and brick light with architectural 1-louvered boxed design; heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate
- Finish: Gun Metal with natural toning process (Antique Bronze option available)
- Lens: frosted heat-resistant glass with silicone gasket for weather-tight protection
- Sockets: (2) SCB bayonet sockets with aluminum reflector; remote 12V transformer required
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour rated life, 35W halogen equivalent
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Surface-mount hardware supplied; recessed back box recommended for masonry
- Faceplate: 8-1/4" W x 3-1/4" H
- Limited lifetime warranty on fixture housing
Specifications
| Brass Hooded Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 8-1/4" W x 3-1/4" H |
| Finish | Gun Metal |
| Material | Cast brass housing; die-cast brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years limited warranty on LED module |
