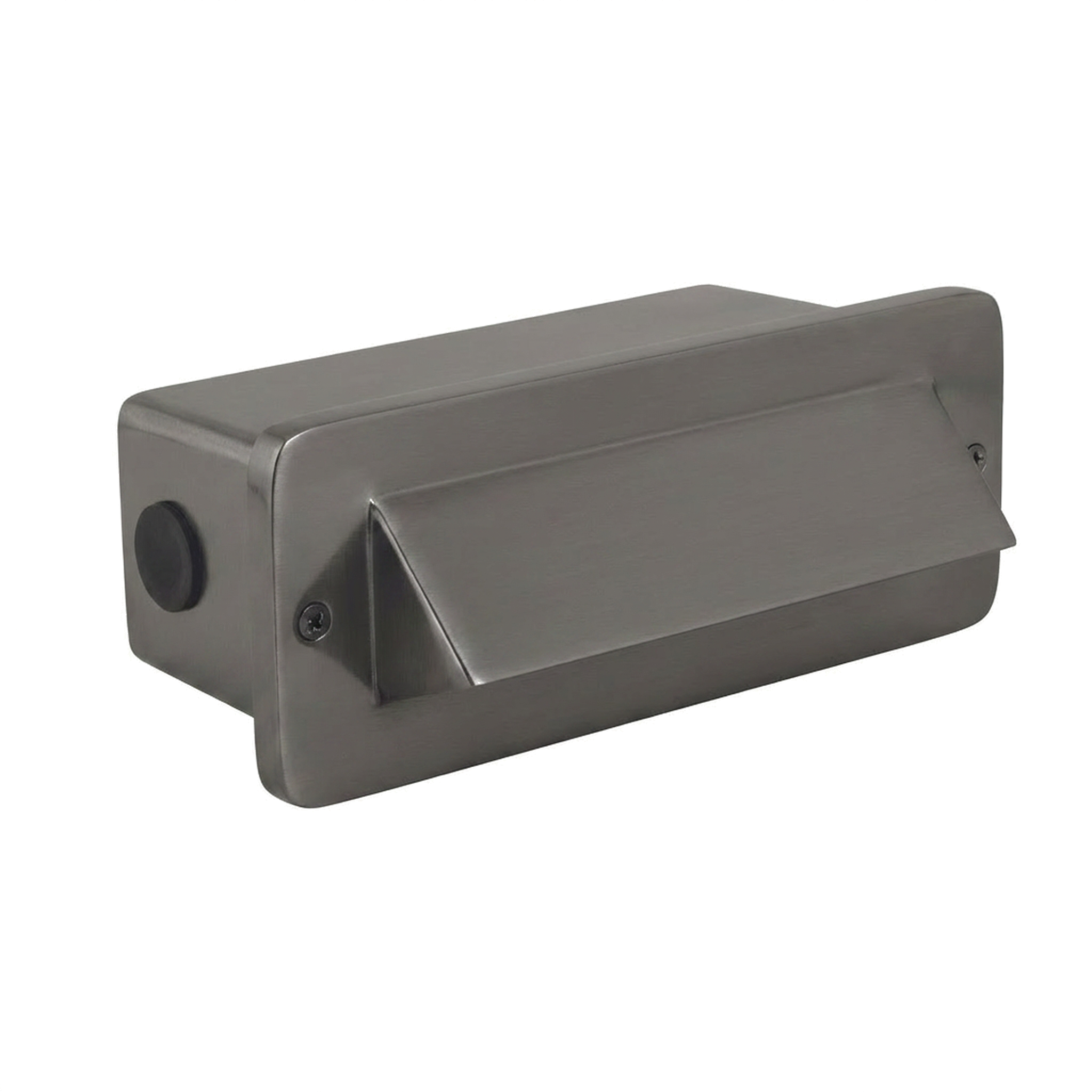

Brass Hooded Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural 1-louvered solid brass boxed step and brick light with heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate
- Finish: Gun Metal (Antique Bronze available as an option)
- Included lamp: bayonet LED, 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour life, 20W halogen equivalent; lamp operating range 8–21V
- Requires a remote 12V transformer
- Two SCB (single-contact bayonet) sockets attached to an aluminum reflector; halogen compatible to 27W max
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Faceplate: 8-1/4" W x 3-1/4" H
- Surface-mount hardware supplied
- Accessories include CX-735B brass mount box and CX-854 silicone-filled wire nut
This Gun Metal brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural 1-louvered solid brass boxed step and brick light with heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate
- Finish: Gun Metal (Antique Bronze available as an option)
- Included lamp: bayonet LED, 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour life, 20W halogen equivalent; lamp operating range 8–21V
- Requires a remote 12V transformer
- Two SCB (single-contact bayonet) sockets attached to an aluminum reflector; halogen compatible to 27W max
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Faceplate: 8-1/4" W x 3-1/4" H
- Surface-mount hardware supplied
- Accessories include CX-735B brass mount box and CX-854 silicone-filled wire nut
Overview
This Gun Metal brass hooded brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural 1-louvered solid brass boxed step and brick light with heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate
- Finish: Gun Metal (Antique Bronze available as an option)
- Included lamp: bayonet LED, 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour life, 20W halogen equivalent; lamp operating range 8–21V
- Requires a remote 12V transformer
- Two SCB (single-contact bayonet) sockets attached to an aluminum reflector; halogen compatible to 27W max
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Faceplate: 8-1/4" W x 3-1/4" H
- Surface-mount hardware supplied
- Accessories include CX-735B brass mount box and CX-854 silicone-filled wire nut
Specifications
| Brass Hooded Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 8-1/4" W x 3-1/4" H |
| Finish | Gun Metal |
| Material | Cast brass housing and die-cast brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing; five (5) year manufacturer's warranty on the LED lamp |
