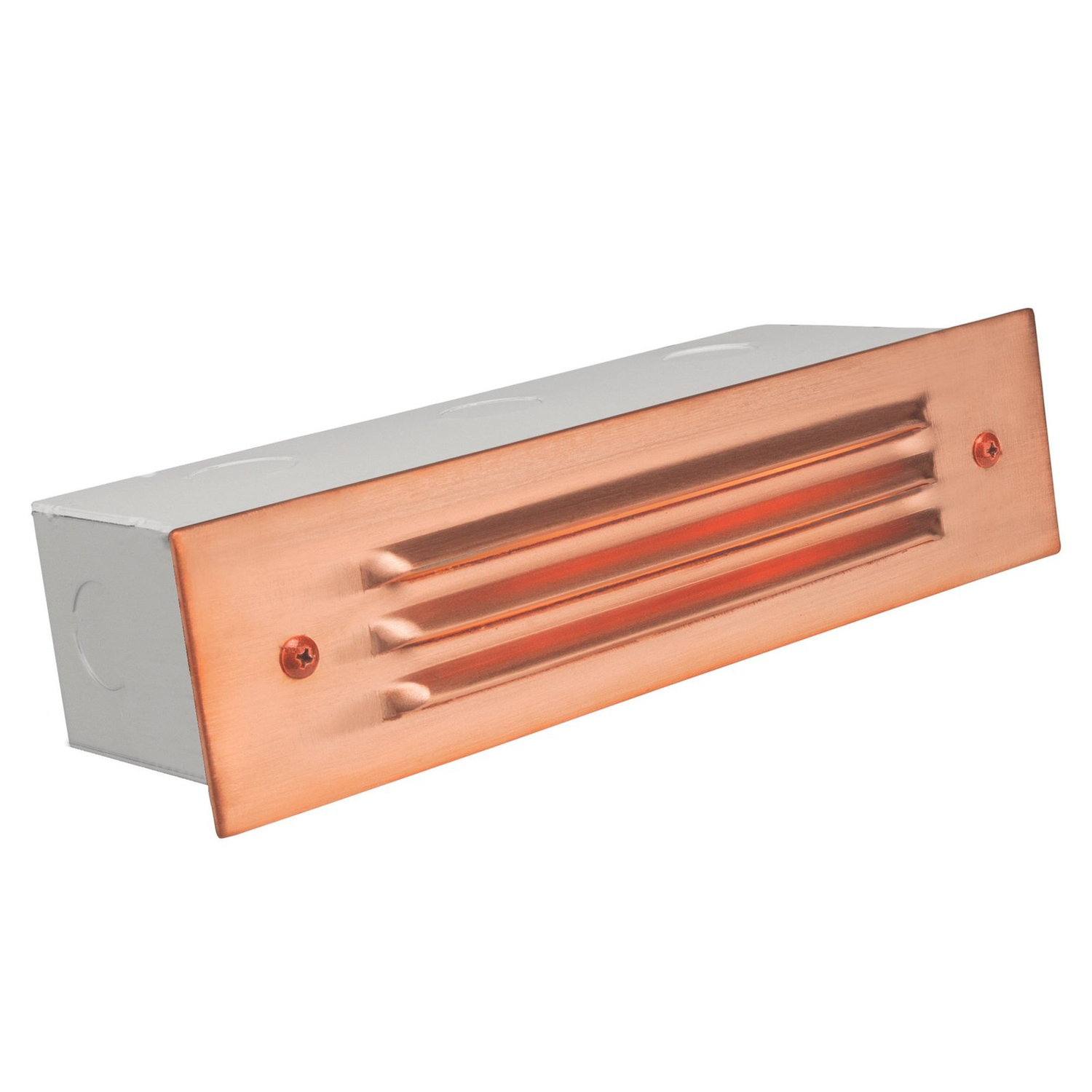

This Raw Copper 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Three-louvered boxed step/brick light
- Architectural-grade copper construction in raw copper finish
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white, rated 25,000 hours, 35W halogen equivalent
- Two SCB bayonet sockets attached to an aluminum reflector
- Maximum lamp: 12V SCB 27W
- White powder-coated steel mount/recessed back box with five 1/2" NPT inlets
- Surface mount hardware supplied
- Faceplate dimensions: 9" W x 2.25" H with sealed high-impact white polycarbonate lens
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Electrical (with LED lamp): 9–17V; requires remote 12V transformer for operation
- Limited lifetime warranty on fixture housing; 5-year manufacturer's warranty applies to lamps
This Raw Copper 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Three-louvered boxed step/brick light
- Architectural-grade copper construction in raw copper finish
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white, rated 25,000 hours, 35W halogen equivalent
- Two SCB bayonet sockets attached to an aluminum reflector
- Maximum lamp: 12V SCB 27W
- White powder-coated steel mount/recessed back box with five 1/2" NPT inlets
- Surface mount hardware supplied
- Faceplate dimensions: 9" W x 2.25" H with sealed high-impact white polycarbonate lens
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Electrical (with LED lamp): 9–17V; requires remote 12V transformer for operation
- Limited lifetime warranty on fixture housing; 5-year manufacturer's warranty applies to lamps
Overview
This Raw Copper 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Three-louvered boxed step/brick light
- Architectural-grade copper construction in raw copper finish
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white, rated 25,000 hours, 35W halogen equivalent
- Two SCB bayonet sockets attached to an aluminum reflector
- Maximum lamp: 12V SCB 27W
- White powder-coated steel mount/recessed back box with five 1/2" NPT inlets
- Surface mount hardware supplied
- Faceplate dimensions: 9" W x 2.25" H with sealed high-impact white polycarbonate lens
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Electrical (with LED lamp): 9–17V; requires remote 12V transformer for operation
- Limited lifetime warranty on fixture housing; 5-year manufacturer's warranty applies to lamps
Specifications
| Copper 3-Louver Brick Step Light, Recessed, 9 Inch, Raw Copper, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | 9" W x 2-1/4" H |
| Finish | Raw Copper |
| Material | Copper |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing; Five (5) Year Manufacturer's Warranty applies to lamps |
