- Lumens: 200 - 210LM
- Voltage: Low Voltage
- Wattage: 2W
- Dimming: Dimmable
- Warranty: Limited lifetime warranty on fixture housing, Five (5) years limited warranty on LED module

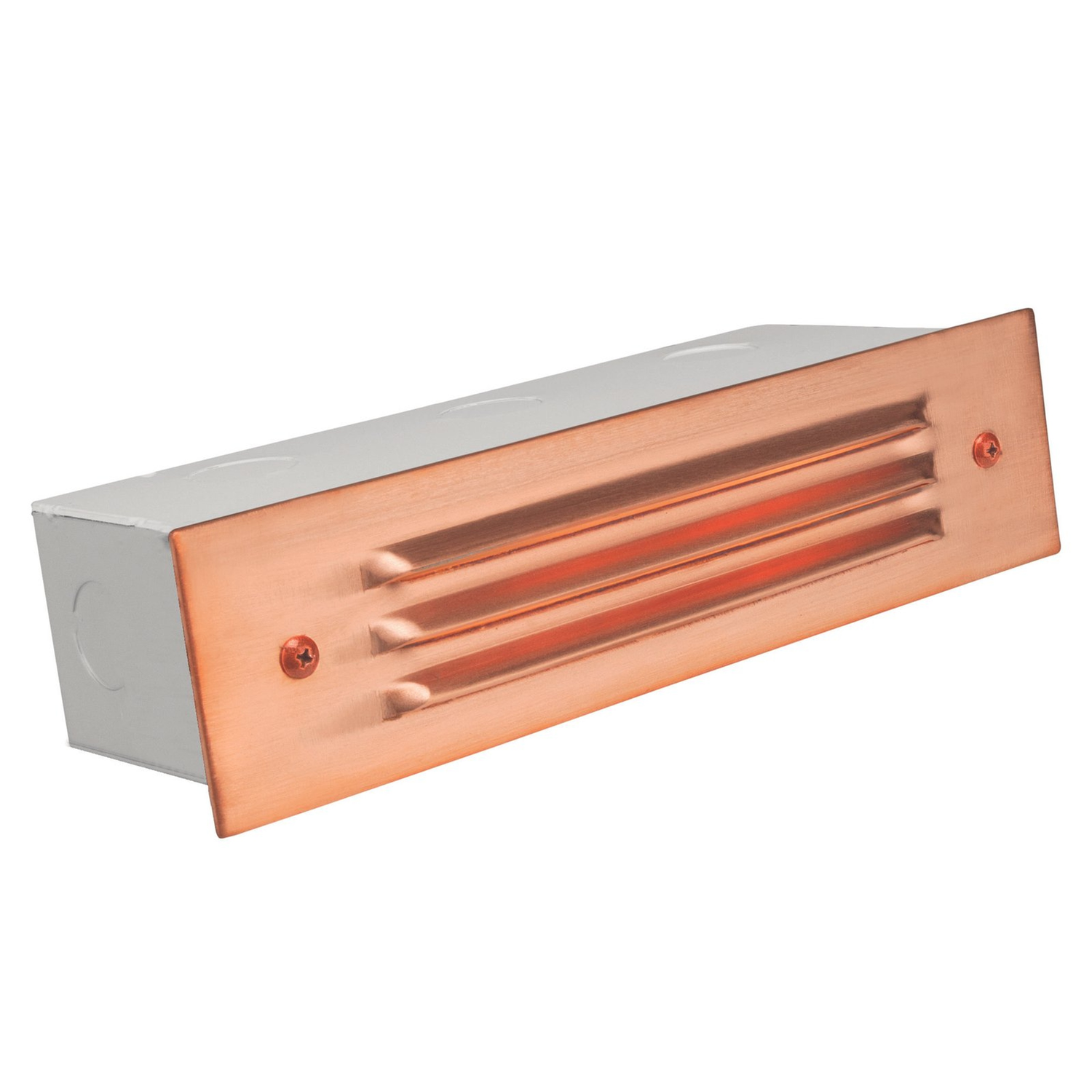

This Raw Copper 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Louvered boxed step/brick light for step and brick installations
- Raw copper faceplate with copper construction (patinas naturally)
- Faceplate dimensions: 9" W x 2.25" H for compact recessed or surface mounting
- White powder-coated steel mount box housing with double SC bayonet sockets and aluminum reflector
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, warm white, 25,000-hour rated life, 20W halogen equivalent
- LED lamp operates at 9–17V; requires a remote 12V transformer
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Wire connector sold separately; silicone-filled wire nut CX-854 available
