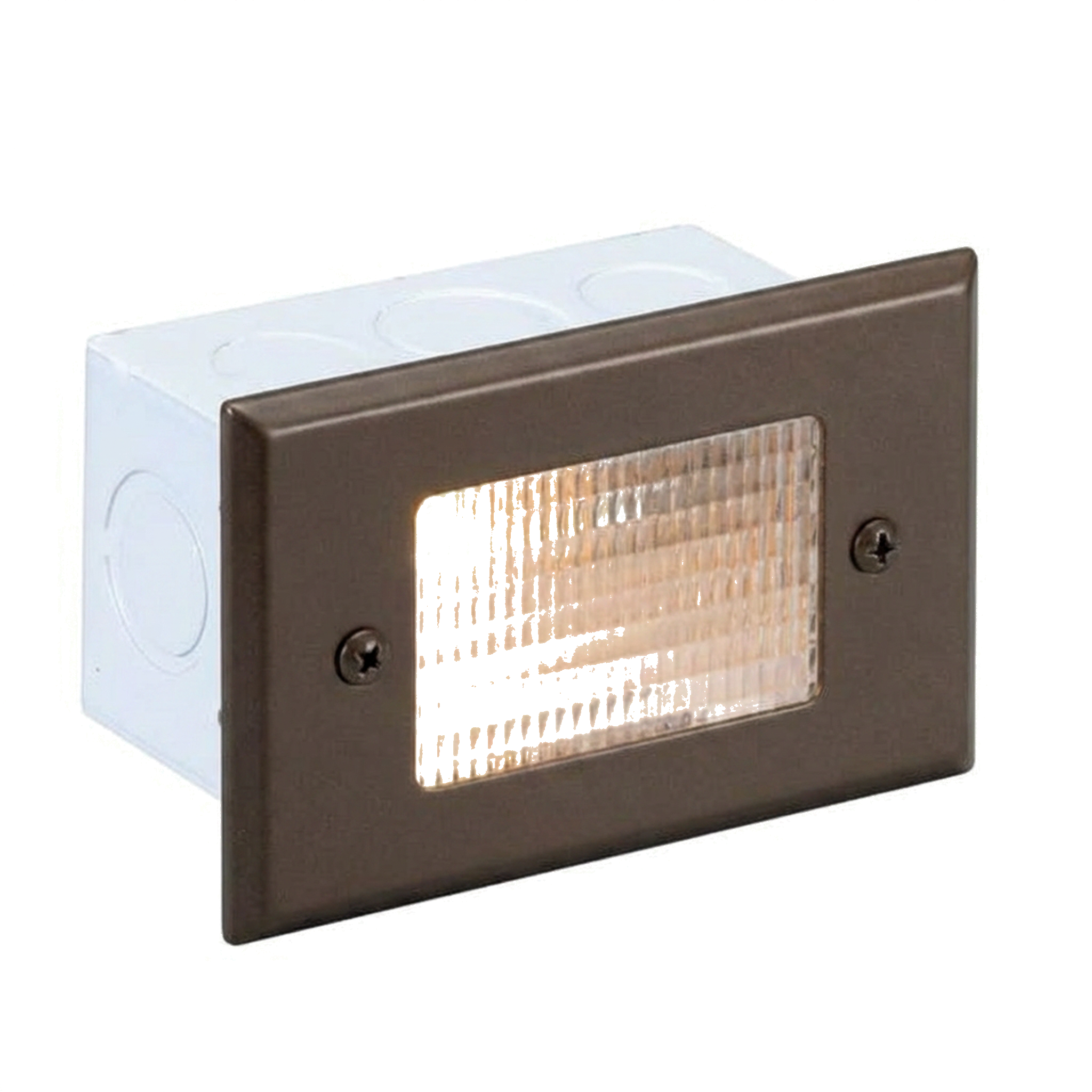

Lensed Step Light, Recessed, 5 Inch, Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Aluminum step/brick fixture with stamped steel faceplate
- Faceplate size: 5 Inch W x 3 Inch H
- Housing: Recessed powder-coated steel back box for concrete, brick, or masonry installation
- Lens: Clear polycarbonate sealed lens
- Socket/Base: Top-grade fixed SC bayonet (SCB) socket; lamp compatibility 12V SC bayonet with 18W max
- Included lamp: Bayonet LED lamp, 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, 25,000-hour life, 35W halogen equivalent
- Electrical: LED operating range 8–21V; requires remote 12V landscape transformer
- Wiring: Prewired with 12 Inch direct-burial cord (wire connectors sold separately)
- Outdoor use only; available finishes: Black, Bronze, White
- Warranty: 1-year fixture warranty
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Aluminum step/brick fixture with stamped steel faceplate
- Faceplate size: 5 Inch W x 3 Inch H
- Housing: Recessed powder-coated steel back box for concrete, brick, or masonry installation
- Lens: Clear polycarbonate sealed lens
- Socket/Base: Top-grade fixed SC bayonet (SCB) socket; lamp compatibility 12V SC bayonet with 18W max
- Included lamp: Bayonet LED lamp, 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, 25,000-hour life, 35W halogen equivalent
- Electrical: LED operating range 8–21V; requires remote 12V landscape transformer
- Wiring: Prewired with 12 Inch direct-burial cord (wire connectors sold separately)
- Outdoor use only; available finishes: Black, Bronze, White
- Warranty: 1-year fixture warranty
Overview
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Aluminum step/brick fixture with stamped steel faceplate
- Faceplate size: 5 Inch W x 3 Inch H
- Housing: Recessed powder-coated steel back box for concrete, brick, or masonry installation
- Lens: Clear polycarbonate sealed lens
- Socket/Base: Top-grade fixed SC bayonet (SCB) socket; lamp compatibility 12V SC bayonet with 18W max
- Included lamp: Bayonet LED lamp, 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, 25,000-hour life, 35W halogen equivalent
- Electrical: LED operating range 8–21V; requires remote 12V landscape transformer
- Wiring: Prewired with 12 Inch direct-burial cord (wire connectors sold separately)
- Outdoor use only; available finishes: Black, Bronze, White
- Warranty: 1-year fixture warranty
Specifications
| Lensed Step Light, Recessed, 5 Inch, Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5" W x 3" H |
| Finish | Bronze |
| Material | Aluminum lensed fixture with stamped steel faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years warranty on LED module |
