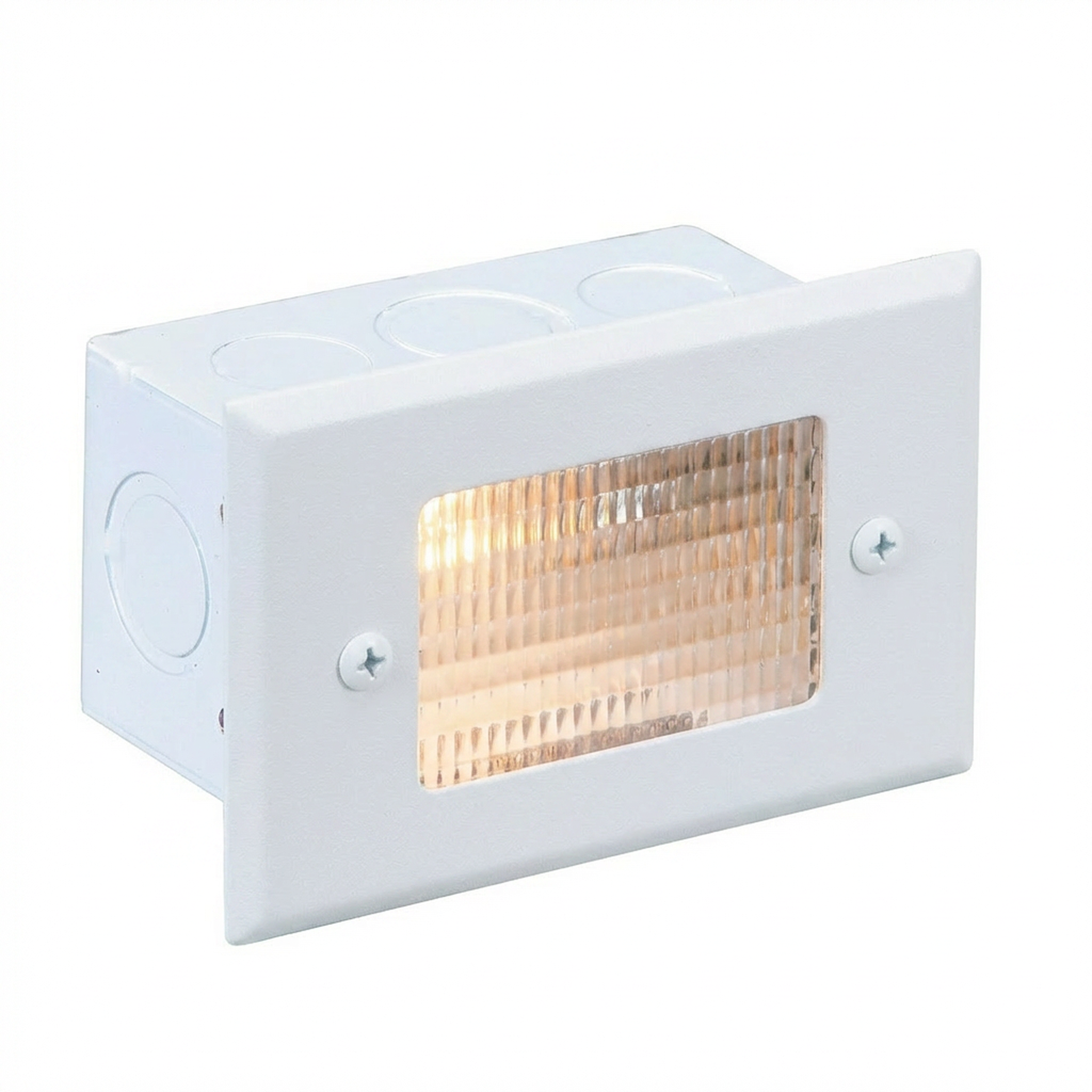

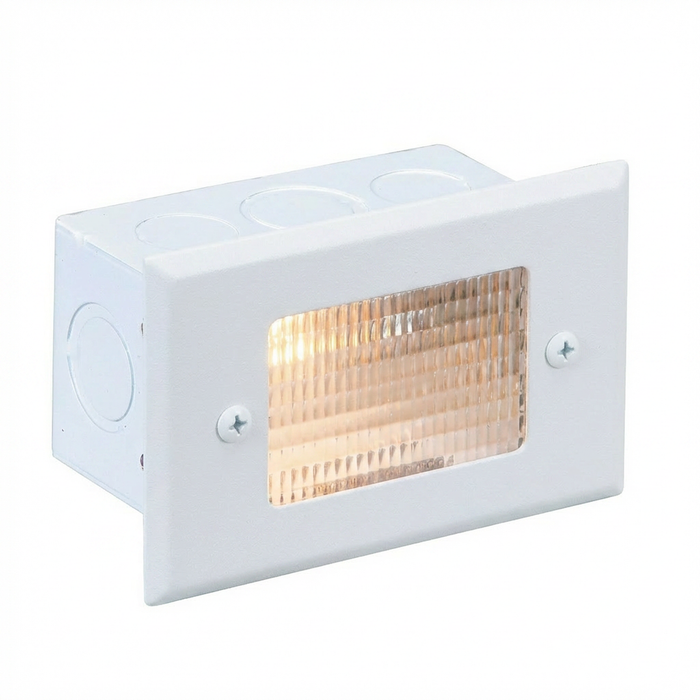

Lensed Step Light, Recessed, 5 Inch, White, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Lensed boxed step and brick light for recessed installation into concrete, brick, or masonry
- Faceplate dimensions: 5" W x 3" H
- Stamped steel faceplate with white polyester UV powder coat finish; silicone gasket
- White powder-coated steel recessed mount box
- Includes self-leveling plate and supplied screws
- Includes bayonet SCB LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80; 25,000-hour life; approximately 35W halogen equivalent; efficacy approx. 96 Lumens/W
- Low-voltage 12V fixture (LED operating range 8–21V)
- Requires remote 12V transformer
- Prewired with 12" direct-burial lead
- Dimmable with compatible low-voltage dimmers
- Warranty: 1-year fixture warranty
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Lensed boxed step and brick light for recessed installation into concrete, brick, or masonry
- Faceplate dimensions: 5" W x 3" H
- Stamped steel faceplate with white polyester UV powder coat finish; silicone gasket
- White powder-coated steel recessed mount box
- Includes self-leveling plate and supplied screws
- Includes bayonet SCB LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80; 25,000-hour life; approximately 35W halogen equivalent; efficacy approx. 96 Lumens/W
- Low-voltage 12V fixture (LED operating range 8–21V)
- Requires remote 12V transformer
- Prewired with 12" direct-burial lead
- Dimmable with compatible low-voltage dimmers
- Warranty: 1-year fixture warranty
Overview
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Lensed boxed step and brick light for recessed installation into concrete, brick, or masonry
- Faceplate dimensions: 5" W x 3" H
- Stamped steel faceplate with white polyester UV powder coat finish; silicone gasket
- White powder-coated steel recessed mount box
- Includes self-leveling plate and supplied screws
- Includes bayonet SCB LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, CRI 80; 25,000-hour life; approximately 35W halogen equivalent; efficacy approx. 96 Lumens/W
- Low-voltage 12V fixture (LED operating range 8–21V)
- Requires remote 12V transformer
- Prewired with 12" direct-burial lead
- Dimmable with compatible low-voltage dimmers
- Warranty: 1-year fixture warranty
Specifications
| Lensed Step Light, Recessed, 5 Inch, White, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | 5" W x 3" H |
| Finish | White |
| Material | Stamped steel faceplate; white powder coated steel housing |
| Lifetime | 25,000 Hours |
| Warranty | One (1) year limited housing warranty on fixture; LED lamps carry a five-year limited warranty |
