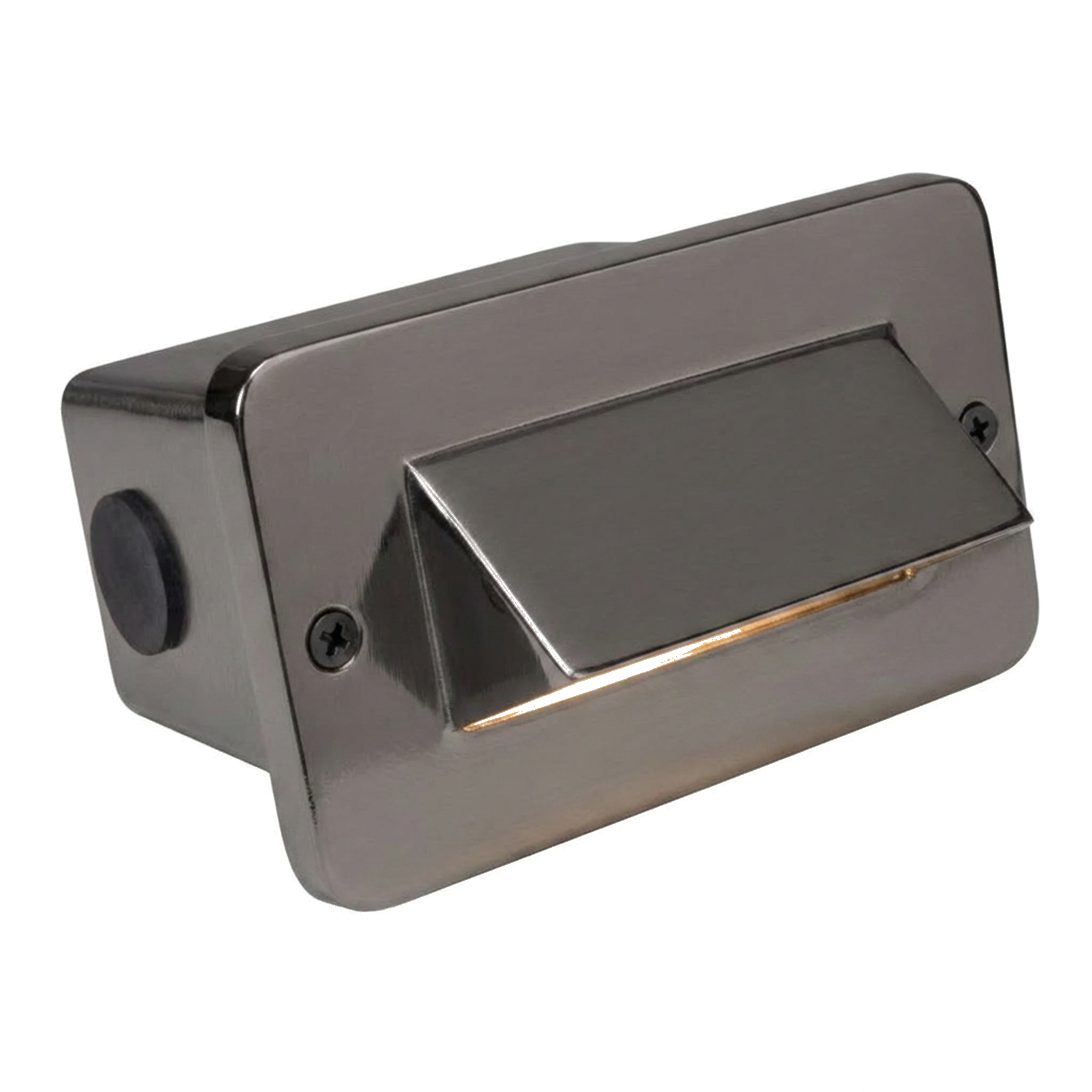

This Gun Metal brass hooded step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- Finish: Gun Metal
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white, 25,000-hour life
- Socket: 12V SCB bayonet; 27W max (halogen)
- Remote 12V transformer required; LED lamp voltage range 8–21V
- Prewired with 3 ft 18-2 direct-burial cord
- Mounting: surface mount or recessed mount; back box supplied with three 1/2" NPT inlets for concrete or masonry installations
- Wire connector sold separately: CX-854 (silicone-filled wire nut available)
- Faceplate dimensions: 5-1/8" W x 3-1/8" H; approx depth 2-1/8"; ship weight ~3 lbs
This Gun Metal brass hooded step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- Finish: Gun Metal
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white, 25,000-hour life
- Socket: 12V SCB bayonet; 27W max (halogen)
- Remote 12V transformer required; LED lamp voltage range 8–21V
- Prewired with 3 ft 18-2 direct-burial cord
- Mounting: surface mount or recessed mount; back box supplied with three 1/2" NPT inlets for concrete or masonry installations
- Wire connector sold separately: CX-854 (silicone-filled wire nut available)
- Faceplate dimensions: 5-1/8" W x 3-1/8" H; approx depth 2-1/8"; ship weight ~3 lbs
Overview
This Gun Metal brass hooded step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- Finish: Gun Metal
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm white, 25,000-hour life
- Socket: 12V SCB bayonet; 27W max (halogen)
- Remote 12V transformer required; LED lamp voltage range 8–21V
- Prewired with 3 ft 18-2 direct-burial cord
- Mounting: surface mount or recessed mount; back box supplied with three 1/2" NPT inlets for concrete or masonry installations
- Wire connector sold separately: CX-854 (silicone-filled wire nut available)
- Faceplate dimensions: 5-1/8" W x 3-1/8" H; approx depth 2-1/8"; ship weight ~3 lbs
Specifications
| Brass Hooded Glass Lens Step Light, Recessed, 5-1/8 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5-1/8" W x 3-1/8" H, D Approx. 2-1/8" |
| Finish | Gun Metal |
| Material | Cast brass housing, die-cast brass faceplate, frosted heat-resistant glass lens, silicone gasket |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years Manufacturer's Warranty for LED module |
