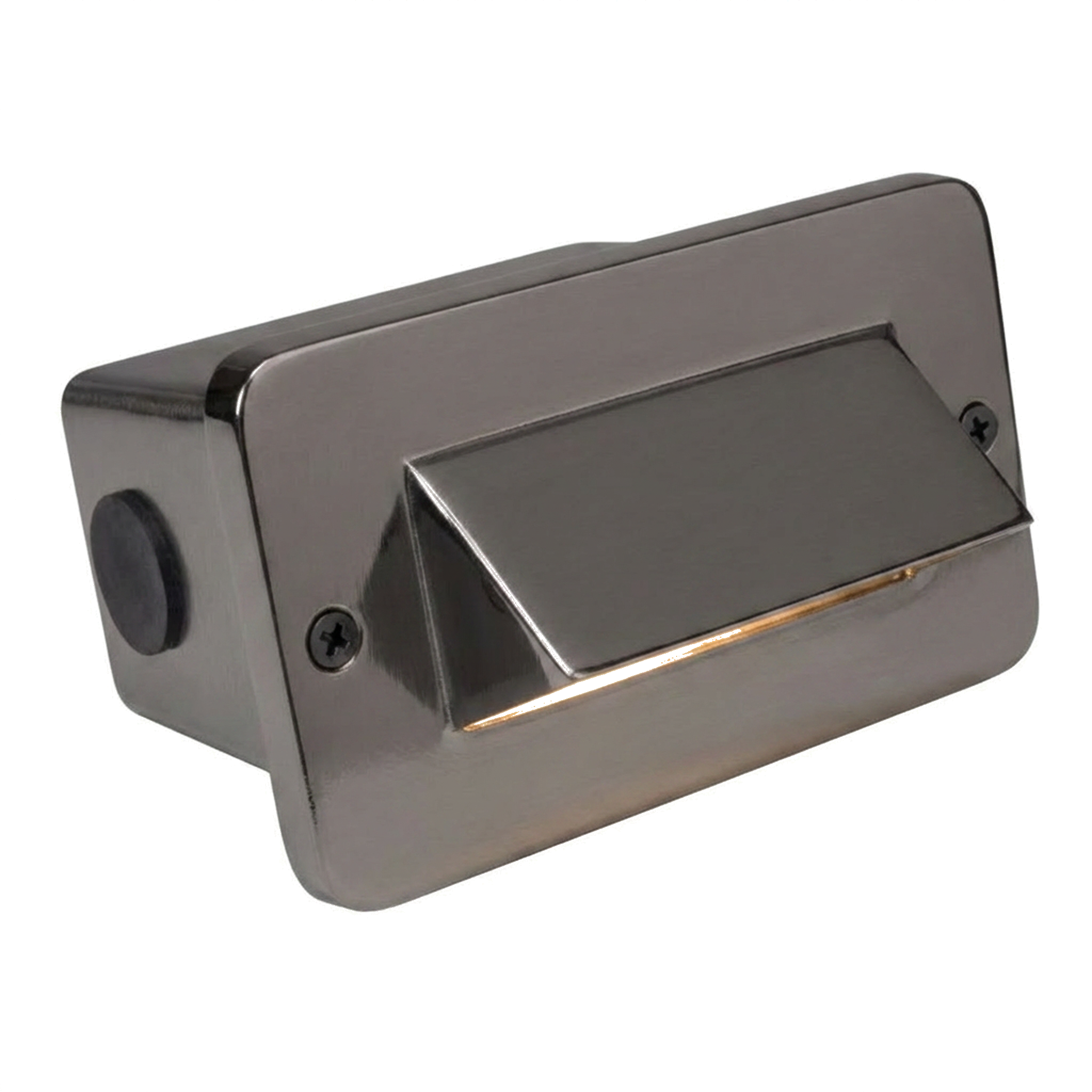

Brass Hooded Glass Lens Step Light, Recessed, 5-1/8 Inch, Gun Metal, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass hooded step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2W BA15S LED lamp delivers 200 lumens at 2700K; 210 lumens at 3000K.
Features
-
- Architectural 1-louvered step and brick light
- Construction: heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Finish: Gun Metal (natural toning process)
- Lens: frosted heat-resistant glass
- Included lamp: bayonet LED, 2W, 200 lumens at 2700K and 210 lumens at 3000K, warm white, 25,000 hours, approx 20W halogen equivalent
- Socket: Bayonet (SCB); 12V operation, 27W max (halogen)
- Remote 12V transformer required
- Prewired with 3 ft 18-2 direct-burial cord
- Mounting: recessed back box with three 1/2" NPT inlets
- Surface mount supplied
- Dimensions: faceplate 5-1/8" W x 3-1/8" H x approx 2-1/8" D
- Ship weight: approx 3 lbs
- Warranty: limited lifetime on fixture housing; 5-year manufacturer's warranty for lamps
This Gun Metal brass hooded step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2W BA15S LED lamp delivers 200 lumens at 2700K; 210 lumens at 3000K.
Features
-
- Architectural 1-louvered step and brick light
- Construction: heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Finish: Gun Metal (natural toning process)
- Lens: frosted heat-resistant glass
- Included lamp: bayonet LED, 2W, 200 lumens at 2700K and 210 lumens at 3000K, warm white, 25,000 hours, approx 20W halogen equivalent
- Socket: Bayonet (SCB); 12V operation, 27W max (halogen)
- Remote 12V transformer required
- Prewired with 3 ft 18-2 direct-burial cord
- Mounting: recessed back box with three 1/2" NPT inlets
- Surface mount supplied
- Dimensions: faceplate 5-1/8" W x 3-1/8" H x approx 2-1/8" D
- Ship weight: approx 3 lbs
- Warranty: limited lifetime on fixture housing; 5-year manufacturer's warranty for lamps
Overview
This Gun Metal brass hooded step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2W BA15S LED lamp delivers 200 lumens at 2700K; 210 lumens at 3000K.
Features
-
- Architectural 1-louvered step and brick light
- Construction: heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Finish: Gun Metal (natural toning process)
- Lens: frosted heat-resistant glass
- Included lamp: bayonet LED, 2W, 200 lumens at 2700K and 210 lumens at 3000K, warm white, 25,000 hours, approx 20W halogen equivalent
- Socket: Bayonet (SCB); 12V operation, 27W max (halogen)
- Remote 12V transformer required
- Prewired with 3 ft 18-2 direct-burial cord
- Mounting: recessed back box with three 1/2" NPT inlets
- Surface mount supplied
- Dimensions: faceplate 5-1/8" W x 3-1/8" H x approx 2-1/8" D
- Ship weight: approx 3 lbs
- Warranty: limited lifetime on fixture housing; 5-year manufacturer's warranty for lamps
Specifications
| Brass Hooded Glass Lens Step Light, Recessed, 5-1/8 Inch, Gun Metal, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5-1/8" W x 3-1/8" H x Approx. 2-1/8" D |
| Finish | Gun Metal |
| Material | Cast brass housing with die-cast brass faceplate and silicone gasket |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years Manufacturer's Warranty for LED module |
