The LED Light Bar is a quick LED retrofit for fluorescent fixtures and recessed troffers in drop-in ceilings. The kit can be installed with small modifications to the existing housing, avoiding the removal of existing fixtures. You don't need a separate transformer because it runs on 120V, making installation easy. You can set it up in a straight line or adjust it with a separate linking cable to get the light you want in your room. The best part is that you can connect them together to tailor your lighting to your needs.
Features
- 120V input voltage - no separate power supply required
- Slim, low-profile design
- Can be installed straight or adjusted with a separate linking cable for unique setups
- 50,000-hour lifespan

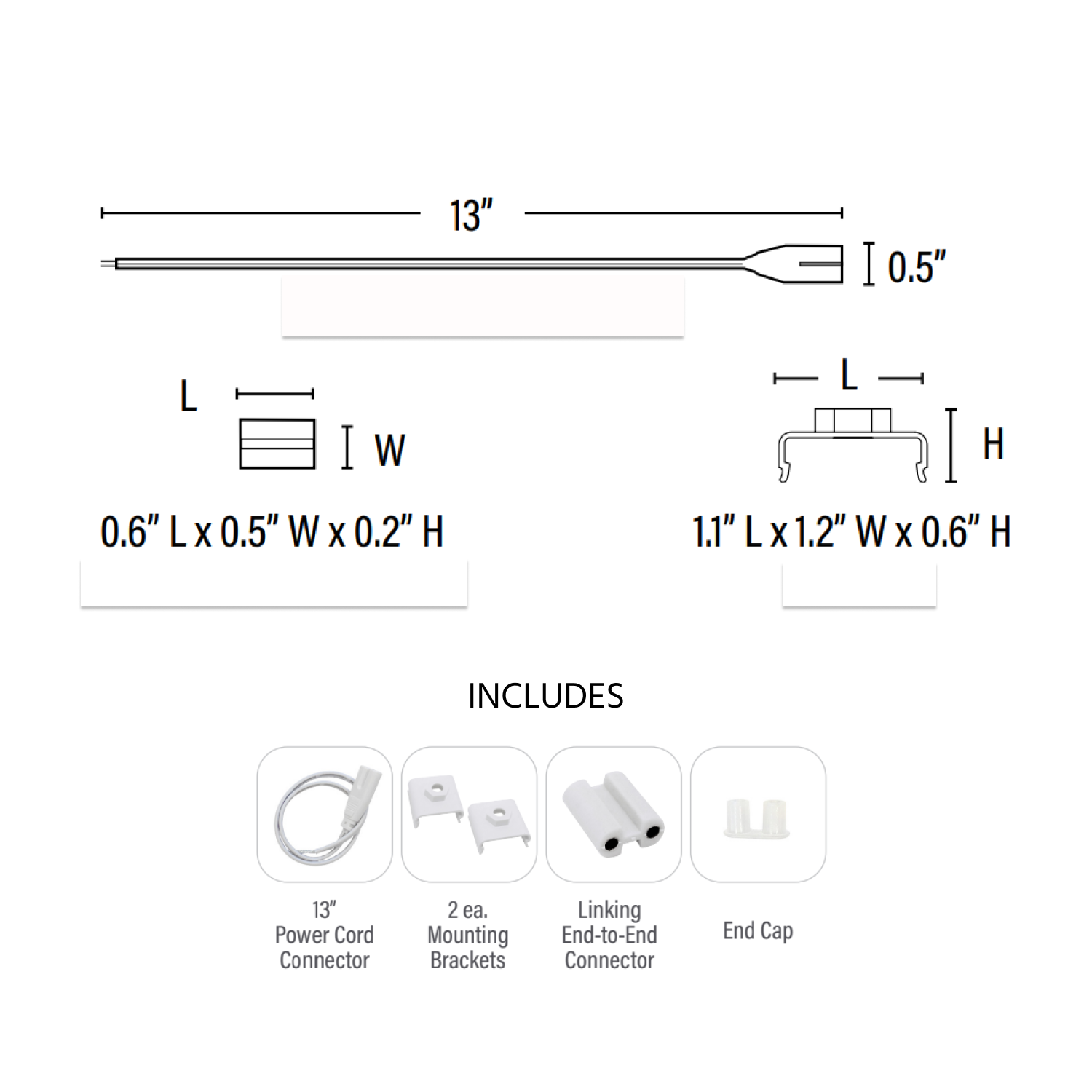

- Included components:
- (1) 13-inch power cord
- (2) mounting brackets
- (1) linking end-to-end connector
- (1) end cap
| Size | Wattage | Brightness | Maximum Linkable Pieces |
| 2ft | 10W | 1269 lumens | 15 |
| 3ft | 12W | 1513 lumens | 12 |
| 4ft | 12W 15W 18W |
1510 lumens 1824 lumens 2321 lumens |
12 10 8 |
Recommended Applications
- Homes
- Offices
- Kitchens
- Closets
- Ceiling fixtures
The LED Light Bar is a quick LED retrofit for fluorescent fixtures and recessed troffers in drop-in ceilings. The kit can be installed with small modifications to the existing housing, avoiding the removal of existing fixtures. You don't need a separate transformer because it runs on 120V, making installation easy. You can set it up in a straight line or adjust it with a separate linking cable to get the light you want in your room. The best part is that you can connect them together to tailor your lighting to your needs.
Features
- 120V input voltage - no separate power supply required
- Slim, low-profile design
- Can be installed straight or adjusted with a separate linking cable for unique setups
- 50,000-hour lifespan
- Included components:
- (1) 13-inch power cord
- (2) mounting brackets
- (1) linking end-to-end connector
- (1) end cap
| Size | Wattage | Brightness | Maximum Linkable Pieces |
| 2ft | 10W | 1269 lumens | 15 |
| 3ft | 12W | 1513 lumens | 12 |
| 4ft | 12W 15W 18W |
1510 lumens 1824 lumens 2321 lumens |
12 10 8 |
Recommended Applications
- Homes
- Offices
- Kitchens
- Closets
- Ceiling fixtures
Overview
The LED Light Bar is a quick LED retrofit for fluorescent fixtures and recessed troffers in drop-in ceilings. The kit can be installed with small modifications to the existing housing, avoiding the removal of existing fixtures. You don't need a separate transformer because it runs on 120V, making installation easy. You can set it up in a straight line or adjust it with a separate linking cable to get the light you want in your room. The best part is that you can connect them together to tailor your lighting to your needs.
Features
- 120V input voltage - no separate power supply required
- Slim, low-profile design
- Can be installed straight or adjusted with a separate linking cable for unique setups
- 50,000-hour lifespan
- Included components:
- (1) 13-inch power cord
- (2) mounting brackets
- (1) linking end-to-end connector
- (1) end cap
| Size | Wattage | Brightness | Maximum Linkable Pieces |
| 2ft | 10W | 1269 lumens | 15 |
| 3ft | 12W | 1513 lumens | 12 |
| 4ft | 12W 15W 18W |
1510 lumens 1824 lumens 2321 lumens |
12 10 8 |
Recommended Applications
- Homes
- Offices
- Kitchens
- Closets
- Ceiling fixtures
Details
● EFFICIENT – Use less energy with this low wattage LED linear under cabinet fixture. Create ambient aesthetics in kitchens, closets, coves, and many more indoor settings.
● INSTALLATION - Easy to install LED light bars can be be linked together and can be powered without a separate power supply.
● BENEFITS - 5-Year Manufacturer's Warranty.
Specifications
| LED Under Cabinet Light Bar, 2300 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 1269 - 2321LM |
| Wattage | 10W / 12W / 15W / 18W |
| Voltage | 120V |
| Operating Temperature | -4°F - 104°F |
| Dimmable | Non-Dimmable |
| Color Temperature | 4000K, 5000K |
| CRI | 80+ |
| Beam Angle | 120° |
| IP Rating | IP44 |
| Moisture Rating | Damp Rated |
| Power Type | Hardwired |
| Mount Type | Flush Mount |
| Material | Housing: Aluminum + Polycarbonate |
| Certifications | RoHS, ETL, DLC |
| Lifetime | 50,000 Hours |
| Warranty | 5 Year Manufacturer's Warranty |
