Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

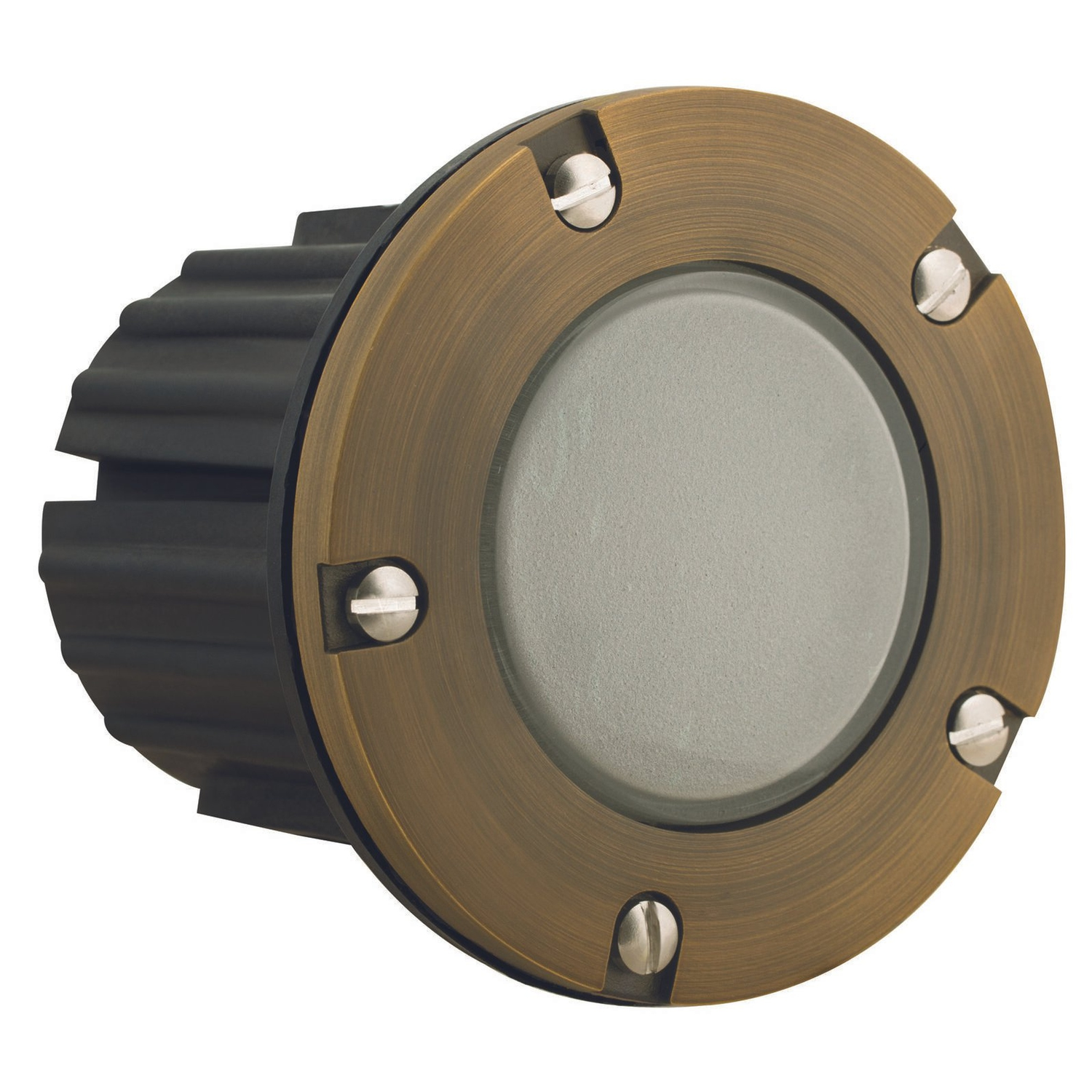

This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted, heat-resistant flat glass lens
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Antique Bronze finish with natural toning (finish will vary)
- Bundled MR16 LED lamp: 5W, 450 Lumens, wide flood 60° beam, CRI 80, 50,000-hour rated life; operates 9–17V
- Adjustable ceramic MR16 bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord (wire connector sold separately)
- Surface mount supplied
- Designed for wall recessed installation
- CX-237 concrete pour kit recommended for concrete
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Requires remote 12V transformer (low-voltage landscape power unit)
- Limited lifetime warranty on fixture; 5-year limited warranty on LED lamps
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted, heat-resistant flat glass lens
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Antique Bronze finish with natural toning (finish will vary)
- Bundled MR16 LED lamp: 5W, 450 Lumens, wide flood 60° beam, CRI 80, 50,000-hour rated life; operates 9–17V
- Adjustable ceramic MR16 bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord (wire connector sold separately)
- Surface mount supplied
- Designed for wall recessed installation
- CX-237 concrete pour kit recommended for concrete
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Requires remote 12V transformer (low-voltage landscape power unit)
- Limited lifetime warranty on fixture; 5-year limited warranty on LED lamps
Overview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Lensed step light with frosted, heat-resistant flat glass lens
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Antique Bronze finish with natural toning (finish will vary)
- Bundled MR16 LED lamp: 5W, 450 Lumens, wide flood 60° beam, CRI 80, 50,000-hour rated life; operates 9–17V
- Adjustable ceramic MR16 bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord (wire connector sold separately)
- Surface mount supplied
- Designed for wall recessed installation
- CX-237 concrete pour kit recommended for concrete
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Requires remote 12V transformer (low-voltage landscape power unit)
- Limited lifetime warranty on fixture; 5-year limited warranty on LED lamps
Specifications
| Brass Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Antique Bronze |
| Material | Brass (die-cast brass faceplate) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing; included LED lamps carry a five (5) year limited warranty |
