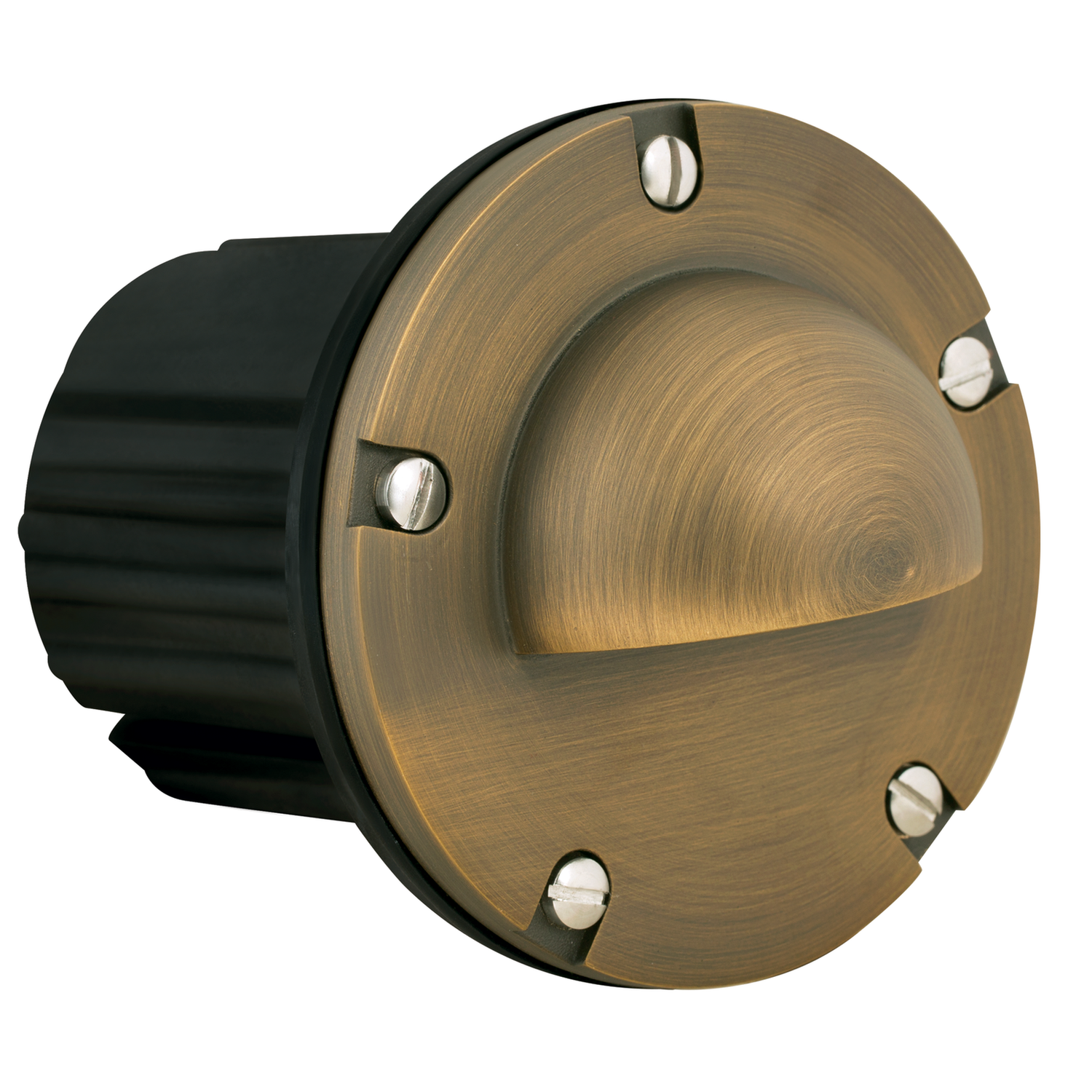

Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 45° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step and brick light with frosted flat glass lens and die-cast brass faceplate
- Finish: Antique Bronze; injection-molded composite housing with high UV stability
- Silicone O-ring seals faceplate to housing for weather-tight protection
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Adjustable ceramic bi-pin MR16 socket tilts ±25°; includes retention clip and Teflon-jacketed leads
- Bundled 5W MR16 flood beam lamp: 350 Lumens, 45° beam angle, CRI 80, rated life 50,000 hours
- Operating range: 9–17V
- Dimmable with a compatible remote 12V magnetic transformer
- Dimensions: 4-7/8" Dia face; 6" overall L; approx 4-5/8" D
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step and brick light with frosted flat glass lens and die-cast brass faceplate
- Finish: Antique Bronze; injection-molded composite housing with high UV stability
- Silicone O-ring seals faceplate to housing for weather-tight protection
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Adjustable ceramic bi-pin MR16 socket tilts ±25°; includes retention clip and Teflon-jacketed leads
- Bundled 5W MR16 flood beam lamp: 350 Lumens, 45° beam angle, CRI 80, rated life 50,000 hours
- Operating range: 9–17V
- Dimmable with a compatible remote 12V magnetic transformer
- Dimensions: 4-7/8" Dia face; 6" overall L; approx 4-5/8" D
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step and brick light with frosted flat glass lens and die-cast brass faceplate
- Finish: Antique Bronze; injection-molded composite housing with high UV stability
- Silicone O-ring seals faceplate to housing for weather-tight protection
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Adjustable ceramic bi-pin MR16 socket tilts ±25°; includes retention clip and Teflon-jacketed leads
- Bundled 5W MR16 flood beam lamp: 350 Lumens, 45° beam angle, CRI 80, rated life 50,000 hours
- Operating range: 9–17V
- Dimmable with a compatible remote 12V magnetic transformer
- Dimensions: 4-7/8" Dia face; 6" overall L; approx 4-5/8" D
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 45° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. face; 6" overall L; Approx. 4-5/8" D |
| Finish | Antique Bronze |
| Material | Die-cast brass faceplate, injection-molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 10 years on housing (manufacturer's defects); five (5) year manufacturer's warranty on the LED lamp |
