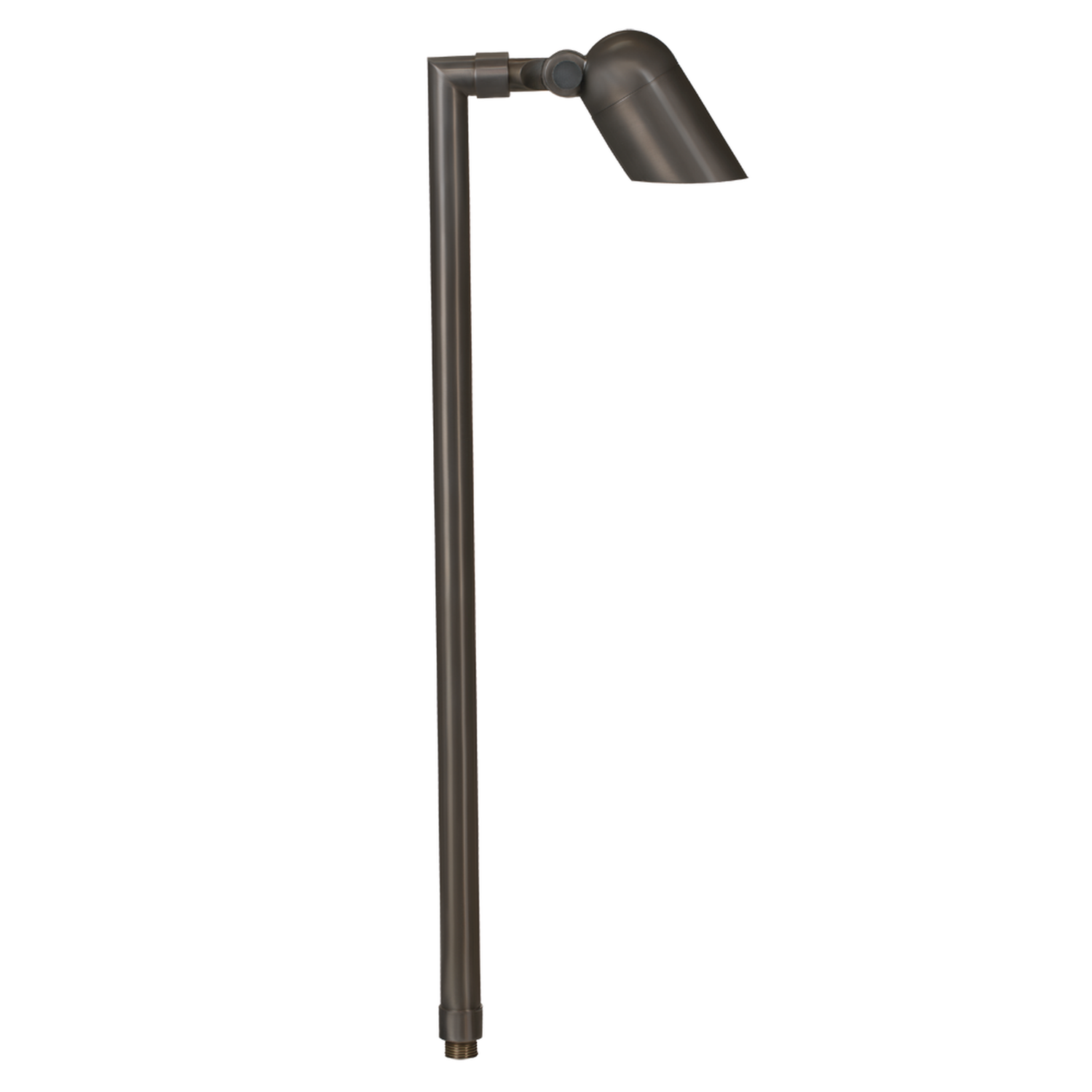

Brass Mini Single Head Path Light, 24 Inch Stem, 2.5 Inch Head, Gun Metal, 45° Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This compact low-voltage mini single head path light is finished in Gun Metal and built from corrosion-resistant cast brass for long-lasting outdoor use. The fixture includes a 5W MR16 LED lamp at 2700K that produces approximately 350 Lumens with a 45° beam angle. The head measures 2.5" Dia., with an overall height of 24" and a shroud length of approximately 4.75". It ships prewired with approximately 3 ft of direct-burial cord and a ground spike, and requires a remote 12V transformer. Ideal for lining garden walkways and entry paths, guiding foot traffic safely after dark.
Features
-
- Mini single head low-voltage path light in Gun Metal finish for landscape and pathway illumination
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw
- Solid brass stem and pipe with 1/2" NPT bottom; 24" stem (overall height 24")
- Head: 2.5" Dia; shroud length ~4.75"
- Silicone double-gasketed water-tight seal and clear heat-resistant convex glass lens
- Prewired with ~3-ft 18-2 SPT2-W direct-burial cord; includes ground spike with 1/2" NPT threaded female hub
- Includes MR16 LED lamp: 5W, ~350 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- Operates on 9–17V; low-voltage 12V system requires remote 12V transformer
- Top-grade fixed ceramic MR16 bi-pin socket with retention clip
- ETL listed
This compact low-voltage mini single head path light is finished in Gun Metal and built from corrosion-resistant cast brass for long-lasting outdoor use. The fixture includes a 5W MR16 LED lamp at 2700K that produces approximately 350 Lumens with a 45° beam angle. The head measures 2.5" Dia., with an overall height of 24" and a shroud length of approximately 4.75". It ships prewired with approximately 3 ft of direct-burial cord and a ground spike, and requires a remote 12V transformer. Ideal for lining garden walkways and entry paths, guiding foot traffic safely after dark.
Features
-
- Mini single head low-voltage path light in Gun Metal finish for landscape and pathway illumination
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw
- Solid brass stem and pipe with 1/2" NPT bottom; 24" stem (overall height 24")
- Head: 2.5" Dia; shroud length ~4.75"
- Silicone double-gasketed water-tight seal and clear heat-resistant convex glass lens
- Prewired with ~3-ft 18-2 SPT2-W direct-burial cord; includes ground spike with 1/2" NPT threaded female hub
- Includes MR16 LED lamp: 5W, ~350 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- Operates on 9–17V; low-voltage 12V system requires remote 12V transformer
- Top-grade fixed ceramic MR16 bi-pin socket with retention clip
- ETL listed
Overview
This compact low-voltage mini single head path light is finished in Gun Metal and built from corrosion-resistant cast brass for long-lasting outdoor use. The fixture includes a 5W MR16 LED lamp at 2700K that produces approximately 350 Lumens with a 45° beam angle. The head measures 2.5" Dia., with an overall height of 24" and a shroud length of approximately 4.75". It ships prewired with approximately 3 ft of direct-burial cord and a ground spike, and requires a remote 12V transformer. Ideal for lining garden walkways and entry paths, guiding foot traffic safely after dark.
Features
-
- Mini single head low-voltage path light in Gun Metal finish for landscape and pathway illumination
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw
- Solid brass stem and pipe with 1/2" NPT bottom; 24" stem (overall height 24")
- Head: 2.5" Dia; shroud length ~4.75"
- Silicone double-gasketed water-tight seal and clear heat-resistant convex glass lens
- Prewired with ~3-ft 18-2 SPT2-W direct-burial cord; includes ground spike with 1/2" NPT threaded female hub
- Includes MR16 LED lamp: 5W, ~350 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- Operates on 9–17V; low-voltage 12V system requires remote 12V transformer
- Top-grade fixed ceramic MR16 bi-pin socket with retention clip
- ETL listed
Specifications
| Brass Mini Single Head Path Light, 24 Inch Stem, 2.5 Inch Head, Gun Metal, 45° Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 45° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Ground Spike |
| Dimensions | Head 2-1/2" Dia. overall height 24"; Shroud L Approx. 4-3/4" |
| Finish | Gun Metal |
| Material | Cast brass housing and solid brass stem/pipe |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years limited warranty on LED module |
