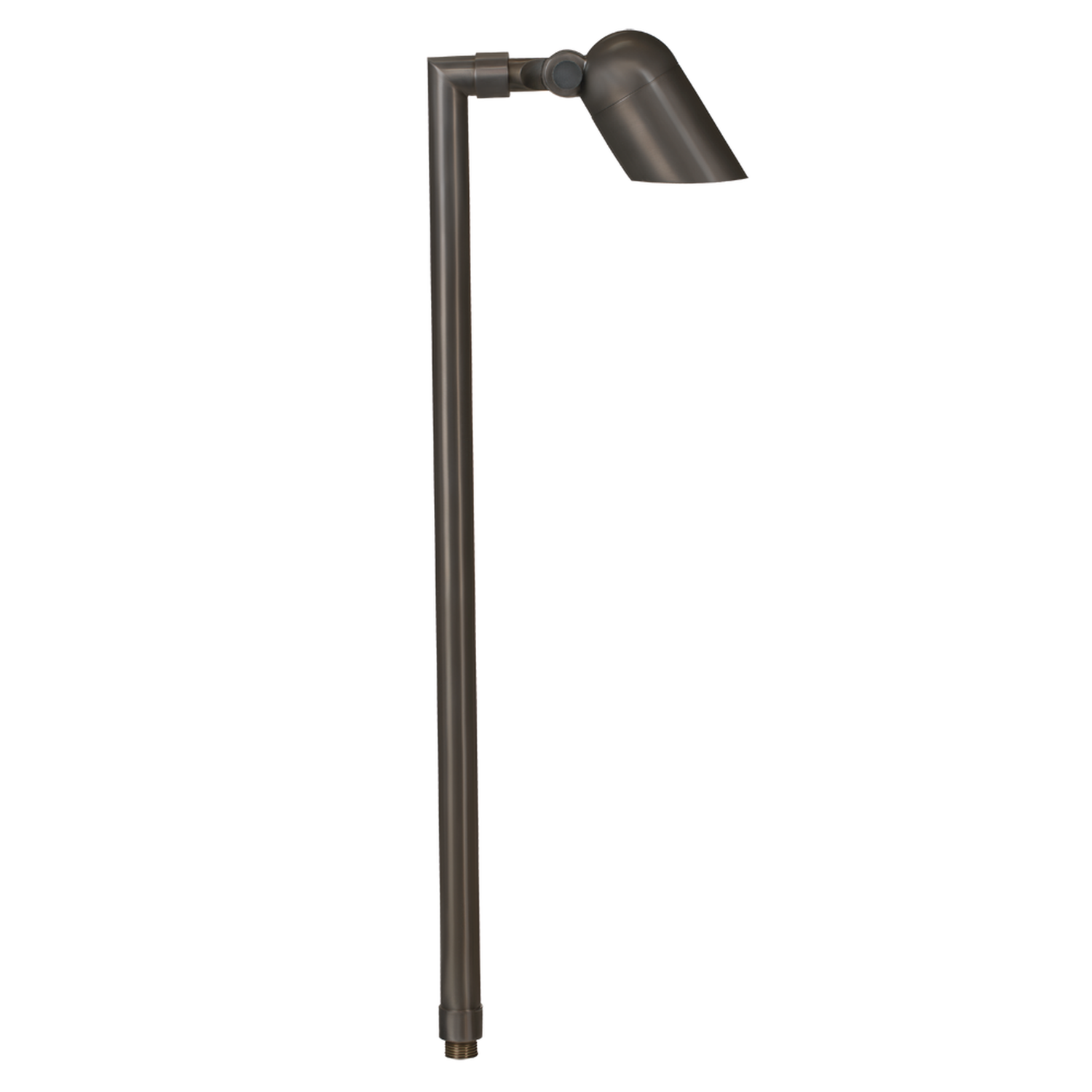

Brass Mini Single Head Path Light, 24 Inch Stem, 2.5 Inch Head, Gun Metal, 45° Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This mini single-head low-voltage path light features a corrosion-resistant cast brass housing and solid brass stem in a Gun Metal finish. It ships with an MR16 LED lamp rated at 3.5W, 270 Lumens, 2700K, and a 45° beam angle. The fixture head measures 2.5" Dia. with a shroud length of approximately 4.75", and an overall height of 24". A silicone double-gasketed watertight design, clear heat-resistant convex glass lens, and ceramic bi-pin socket ensure reliable performance. Ideal for lining garden walkways and entry paths where focused ground-level illumination guides foot traffic safely after dark.
Features
-
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw
- Solid brass stem with 1/2" NPT on bottom; 24" stem; overall height 24"
- Head Dia: 2.5"; shroud length approx 4.75"
- Silicone double-gasketed watertight sealing with clear heat-resistant convex glass lens
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle, dimmable, 50,000-hour rated life; operating range 9–17V
- Top-grade fixed ceramic bi-pin socket with retention clip
- Prewired with approx 3 ft of 18-2 SPT2-W direct-burial cord
- Standard injection-molded ground spike with 1/2" NPT threaded female hub for mounting
- Low-voltage operation requires remote 12V transformer
- ETL listed; operating temperature -22°F to 122°F
- Limited lifetime warranty on fixture housing and stem
This mini single-head low-voltage path light features a corrosion-resistant cast brass housing and solid brass stem in a Gun Metal finish. It ships with an MR16 LED lamp rated at 3.5W, 270 Lumens, 2700K, and a 45° beam angle. The fixture head measures 2.5" Dia. with a shroud length of approximately 4.75", and an overall height of 24". A silicone double-gasketed watertight design, clear heat-resistant convex glass lens, and ceramic bi-pin socket ensure reliable performance. Ideal for lining garden walkways and entry paths where focused ground-level illumination guides foot traffic safely after dark.
Features
-
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw
- Solid brass stem with 1/2" NPT on bottom; 24" stem; overall height 24"
- Head Dia: 2.5"; shroud length approx 4.75"
- Silicone double-gasketed watertight sealing with clear heat-resistant convex glass lens
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle, dimmable, 50,000-hour rated life; operating range 9–17V
- Top-grade fixed ceramic bi-pin socket with retention clip
- Prewired with approx 3 ft of 18-2 SPT2-W direct-burial cord
- Standard injection-molded ground spike with 1/2" NPT threaded female hub for mounting
- Low-voltage operation requires remote 12V transformer
- ETL listed; operating temperature -22°F to 122°F
- Limited lifetime warranty on fixture housing and stem
Overview
This mini single-head low-voltage path light features a corrosion-resistant cast brass housing and solid brass stem in a Gun Metal finish. It ships with an MR16 LED lamp rated at 3.5W, 270 Lumens, 2700K, and a 45° beam angle. The fixture head measures 2.5" Dia. with a shroud length of approximately 4.75", and an overall height of 24". A silicone double-gasketed watertight design, clear heat-resistant convex glass lens, and ceramic bi-pin socket ensure reliable performance. Ideal for lining garden walkways and entry paths where focused ground-level illumination guides foot traffic safely after dark.
Features
-
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw
- Solid brass stem with 1/2" NPT on bottom; 24" stem; overall height 24"
- Head Dia: 2.5"; shroud length approx 4.75"
- Silicone double-gasketed watertight sealing with clear heat-resistant convex glass lens
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle, dimmable, 50,000-hour rated life; operating range 9–17V
- Top-grade fixed ceramic bi-pin socket with retention clip
- Prewired with approx 3 ft of 18-2 SPT2-W direct-burial cord
- Standard injection-molded ground spike with 1/2" NPT threaded female hub for mounting
- Low-voltage operation requires remote 12V transformer
- ETL listed; operating temperature -22°F to 122°F
- Limited lifetime warranty on fixture housing and stem
Specifications
| Brass Mini Single Head Path Light, 24 Inch Stem, 2.5 Inch Head, Gun Metal, 45° Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 45° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Ground Spike |
| Dimensions | Head 2-1/2" Dia. overall height 24"; Shroud L Approx. 4-3/4" |
| Finish | Gun Metal |
| Material | Cast brass housing with solid brass stem/pipe |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing and stem, Five (5) years limited warranty on LED lamp |
