- Voltage: 120V
- Wattage: 600W
- Location: Wet Rated
- Warranty: Limited manufacturer's warranty

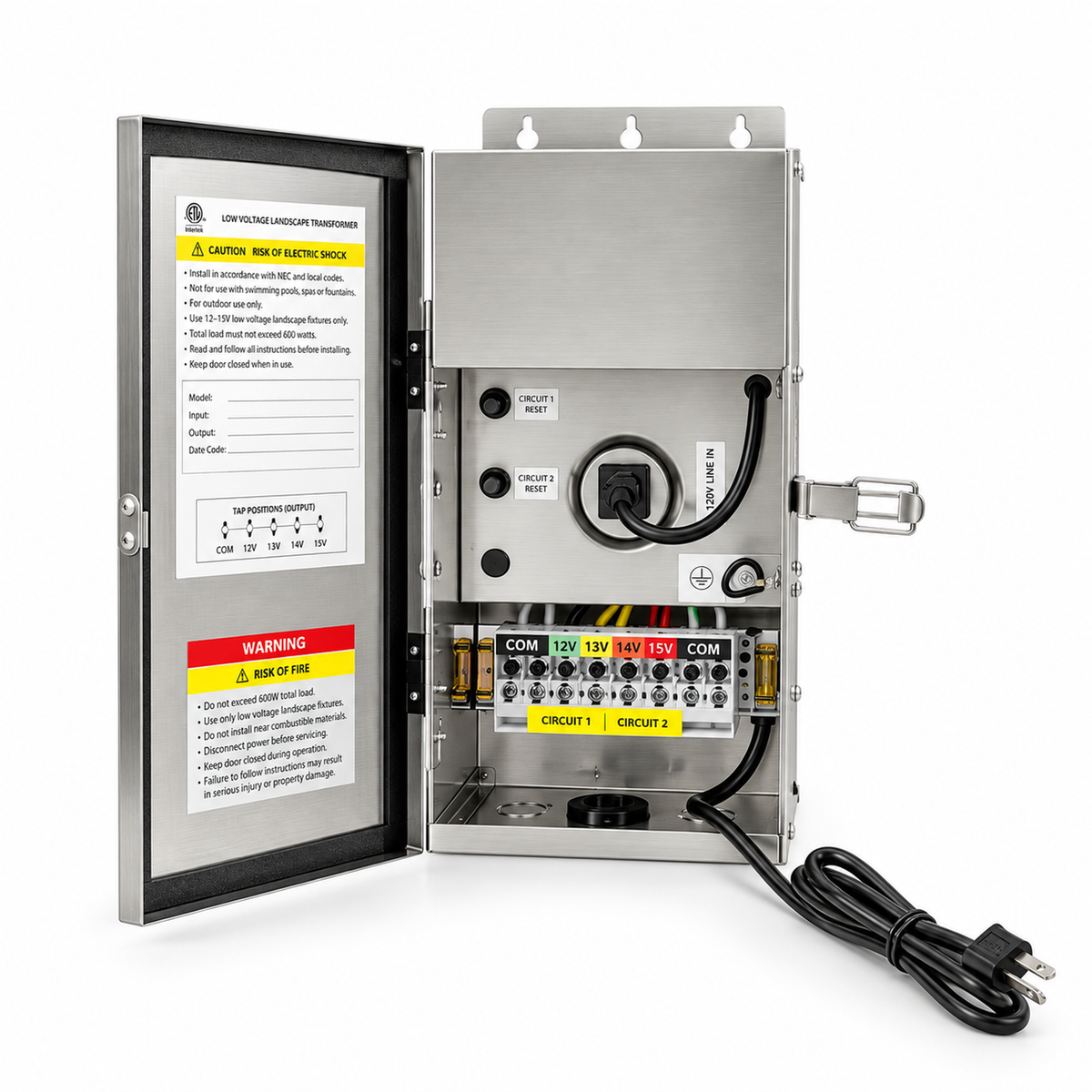

This is a 600W multi-tap dual circuit low-voltage landscape transformer housed in a top-grade 304 stainless steel NEMA 3R enclosure. It provides 600W total capacity across two 300W circuits. It accepts 120V primary input and delivers selectable secondary voltages of 12V, 13V, 14V, or 15V to accommodate voltage drop across long cable runs. The transformer features a fully encapsulated TOROID core, a high-performance magnetic circuit breaker, and a large terminal block for multiple low-voltage cable connections. The selected options determine which timer and photocell accessories are included, and the unit is ETL listed to UL1838. It carries a limited manufacturer's warranty.
Features
-
- 600W total capacity across two 300W circuits, ideal for powering large low-voltage landscape lighting systems
- Multi-tap secondary voltage outputs of 12V, 13V, 14V, and 15V to compensate for voltage drop across long cable runs
- Top grade 304 stainless steel NEMA 3R enclosure with moisture-resistant gasket around the hinged cover door
- Fully encapsulated TOROID core with 120V primary input and 6-foot heavy-gauge grounded water-resistant power cord with molded plug
- High-performance magnetic circuit breaker for secondary protection, doubles as an on/off rocker switch; thermal shut-off for primary protection
- Large terminal block accommodates multiple low-voltage cable connections for easy multi-run installations
- Removable bottom plate with pre-punched knockouts for 4x½" or 4x¾" conduits and 1x1¾" cable feeder

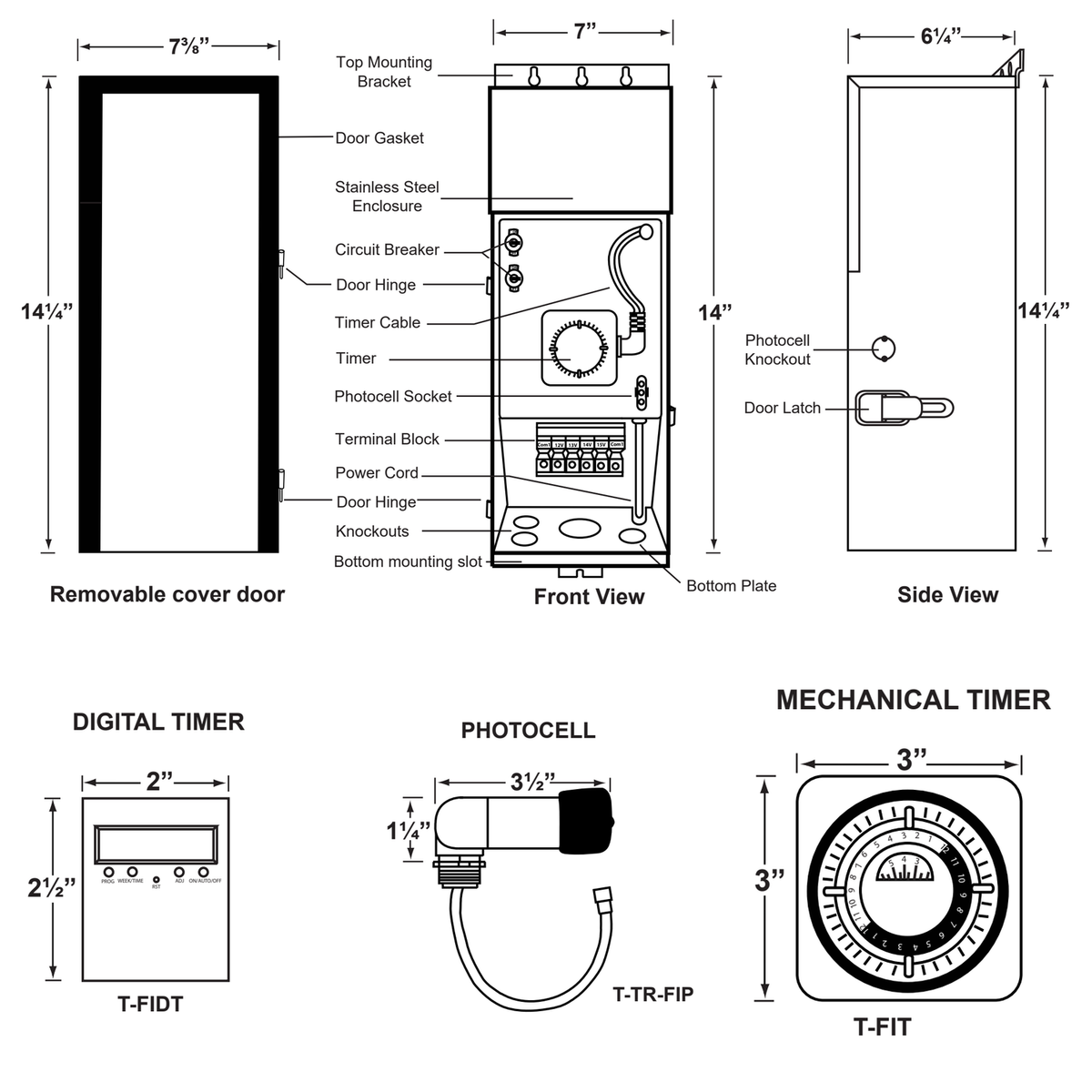

- Available configurations include mechanical timer, digital timer, and photocell. Timer and photocell inclusion depends on the selected Photocell, Digital Timer, and Mechanical Timer options.
- Compatible with low-voltage 12V magnetic dimmer switches and controls
- ETL listed to UL1838 U.S. safety standards for landscape lighting transformers
- Warranty: Limited manufacturer's warranty
