- Voltage: 120V
- Wattage: 75W
- Location: Wet Rated
- Warranty: Limited manufacturer's warranty

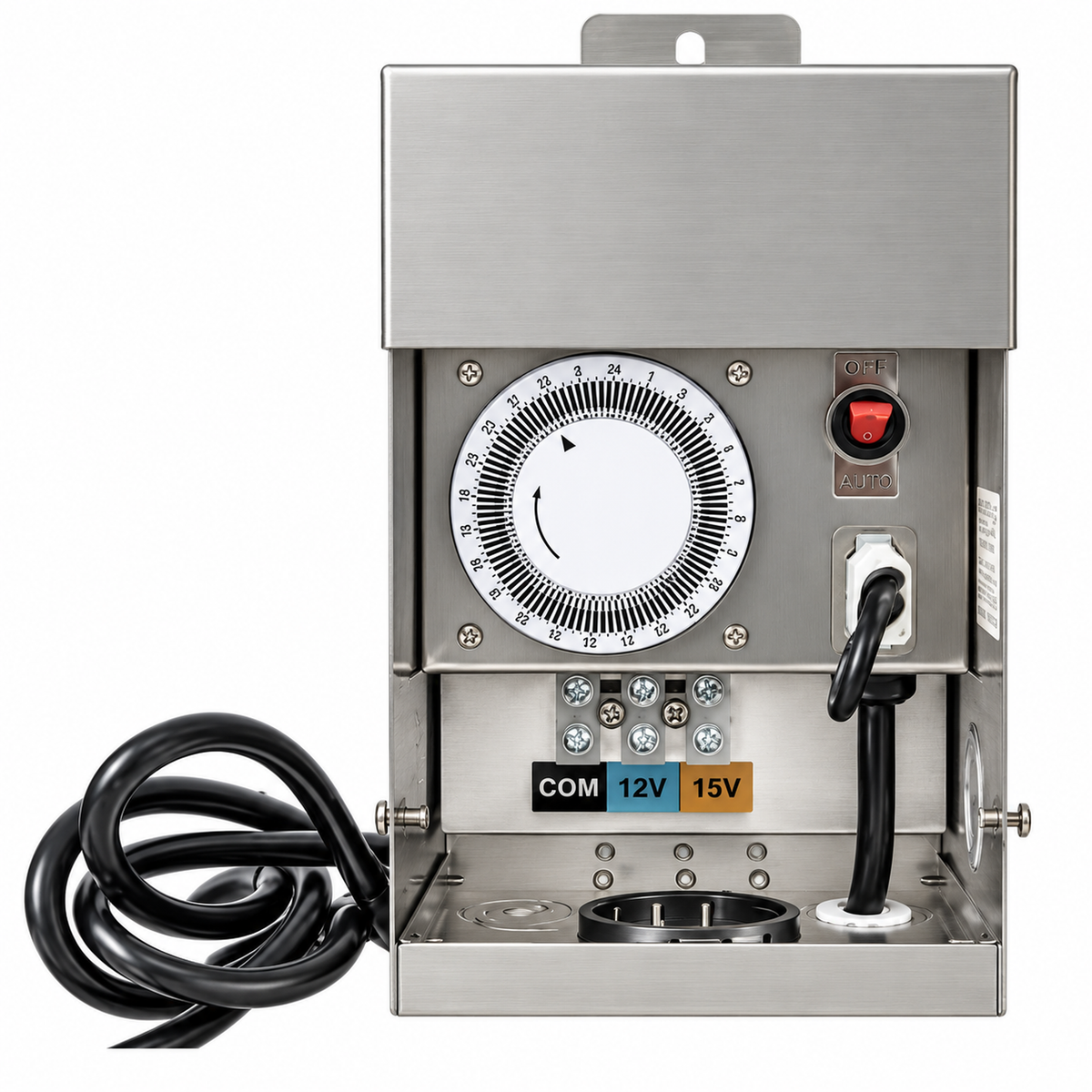

This is a 75-watt single-circuit low voltage landscape lighting transformer housed in a top-grade 304 stainless steel NEMA 3R enclosure, making it ideal for outdoor and poolside installations. It steps down 120V input to selectable 12V or 15V secondary outputs and includes a built-in mechanical timer for automated scheduling. ETL listed to UL1838 safety standards, it is Pool and Spa ready and suitable for use with submersible fixtures. The base configuration includes the mechanical timer; the photocell is included when the Photocell option is Yes. An inline dimmer (ACCDIM-100) is available as an accessory. The transformer mounts to any flat wall surface with keyhole slots and ships with a 6-foot water-resistant power cord. It carries a limited manufacturer's warranty.
Features
-
- 75W single-circuit low voltage transformer with 12V and 15V multi-tap secondary outputs for flexible landscape lighting configurations
- Built-in mechanical timer with 15-minute interval pins for programmable on/off scheduling in 24-hour military clock format
- Top-grade 304 stainless steel NEMA 3R enclosure with moisture-resistant gasket cover door for outdoor durability
- Fully encapsulated TOROID core Class 1 transformer with high-performance magnetic circuit breaker that doubles as an on/off rocker switch
- ETL listed to UL1838 U.S. safety standards for landscape lighting transformers, Pool and Spa ready, suitable for use with submersible fixtures
- 6-foot heavy-gauge grounded and water-resistant power cord with molded plug for easy connection to GFCI-protected 120V outlet
- Over-sized wiring terminal block supports multiple low voltage cable connections for large landscape lighting systems
- Removable bottom plate with pre-punched knockouts for 3x½" or 3x¾" conduits and 1x1¾" cable feeder for easy cable entry
- Photocell included when the Photocell option is Yes; base configuration does not include a photocell
- Compatible with low-voltage (12V) magnetic dimmer switches and controls; ACCDIM-100 use requires a suitable 12–15V AC tap and a compatible 4–12V DC voltage-dimmable load, within the dimmer's 100W rating and maximum 10A input current. Dimming range depends on the connected source and load.
- Warranty: Limited manufacturer's warranty
