Home Warehouse Lighting LED Linear High Bay, 2ft, 220W, 29700 Lumens
Shoebox LED 150W, Parking Lot, Type II, Dusk to Dawn, 19500 Lumens
Shoebox LED 150W, Parking Lot, Type II, Dusk to Dawn, 19500 Lumens
$129.99
T8 LED Tube, 4ft, Frosted, Plug & Play, Hybrid Type A+B, Single/Double Ended, 20W, 2400 Lumens
T8 LED Tube, 4ft, Frosted, Plug & Play, Hybrid Type A+B, Single/Double Ended, 20W, 2400 Lumens
$4.99 - $44.99

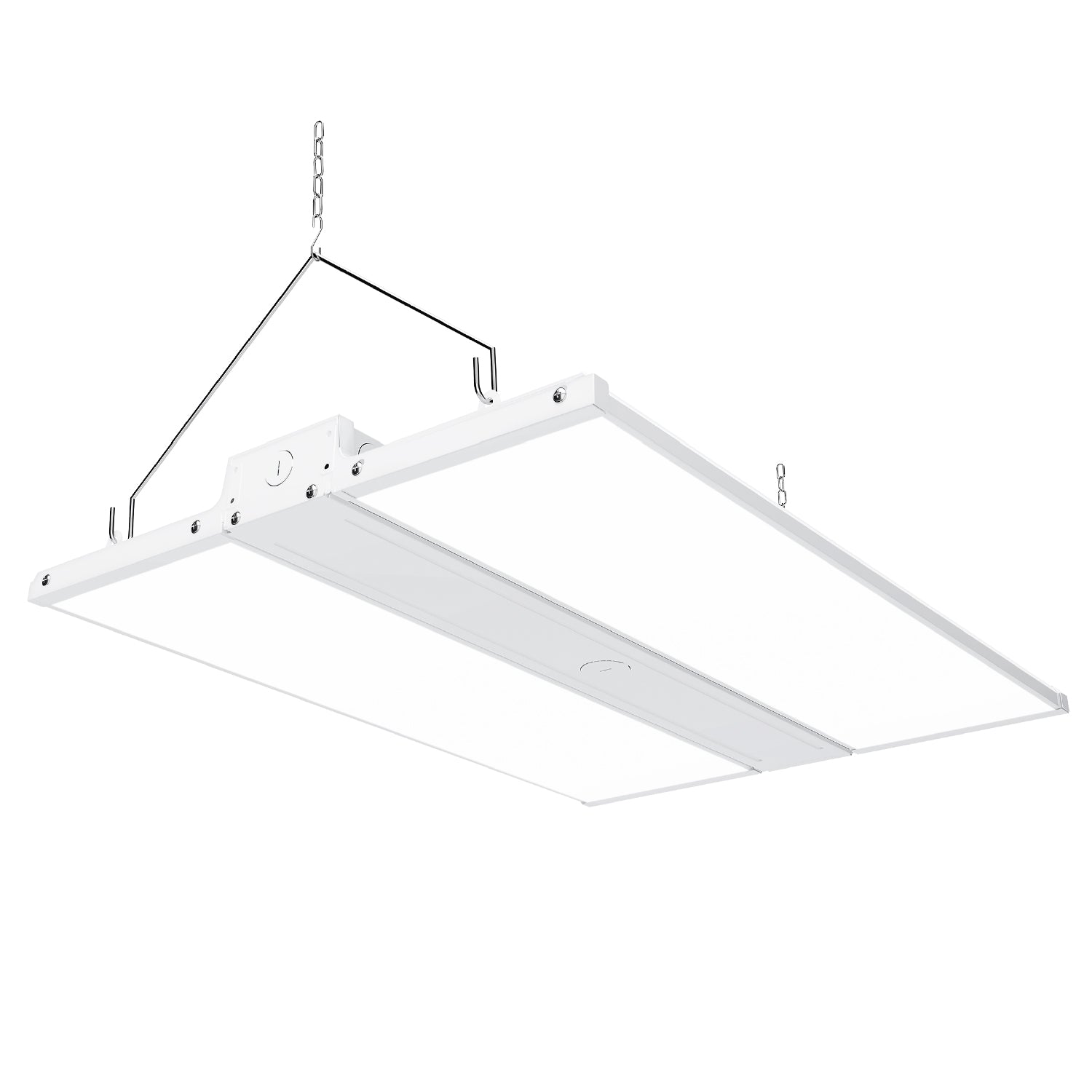

Dimmable 220W LED Linear High Bay from Sunco Lighting is 2 feet long and offers instant on, bright light for warehouse, gymnasium, workshop or industrial space. This 30800 lumen area light comes with chains for hanging high bay light fixture. The 220W LED is a 800W equivalent with a beam spread of 38ft to 72ft. The fixture is UL listed and FCC certified. Dim via 1-10V dimming.
LED Linear High Bay, 2ft, 220W, 29700 Lumens
Dimensions of the Sunco 220W LED Linear High Bay. 26-inches long, 20.47-inches wide, 1.97-inches. Image shows the vents on the side of the fixture to allow for heat dissipation. Other technical specs: wattage 220W, brightness 30800 lumens, 100/277V, 50,000 hour lifespan. This LED linear high bay provides a streamlined, overhead area light that is fast to install and easily maintained. The LED is integrated so you won’t need to replace the bulb during the long lifetime of the light fixture.
Easy Install of the Sunco LED Linear High Bay. Install instructions are expanded in the user manual. Here are the basic steps: 1. Insert hook ends of V hook into slotted holes as shown. 2. Secure fixture to ceiling by looping chain onto screw eye hooks (not included). 3. Connect the supply wires by color to fixture wires in terminal caps. 4. Insert the terminal cap and wires into the driver box and secure terminal cap. Image shows line art of easy installation process.
Components of the 220W LED Linear High Bay. Image shows closeup of the light fixture with highlights of the Integrated LEDs, air vents for heat dissipation, V hook hangers for easy suspension on included hanging chains, and a frosted diffuser to soften harsh edge shadows. An optional motion sensor accessory is shown attached to the end of the high bay light fixture. This unit is sold separately. This hanging light fixture includes a wide beam angle 110-degrees.
Dimmability. Sunco’s linear high bay lights were built with a smooth dimming capability to enhance your control over the ambiance of your space. Image shows a gymnasium with a range of shaded to bright areas to simulate the dimmable quality of this area light. Sunco Linear High Bay lights are suspended overhead from the included chains and V hooks.
LED Linear High Bay, 2ft, 220W, 29700 Lumens
Lighting applications for the Linear High Bay. This instant on area light can be suspended from the included hanging chains to provide bright light in your exercise space or gym above workout machines, in your auto shop, or an airplane hangar or warehouse with a high ceiling. This fixture is dimmable via 1-10V dimming and also offers 30800 lumens of bright light for task lighting where you need it.
Out of Stock
Dimmable 220W LED Linear High Bay from Sunco Lighting is 2 feet long and offers instant on, bright light for warehouse, gymnasium, workshop or industrial space. This 30800 lumen area light comes with chains for hanging high bay light fixture. The 220W LED is a 800W equivalent with a beam spread of 38ft to 72ft. The fixture is UL listed and FCC certified. Dim via 1-10V dimming.
LED Linear High Bay, 2ft, 220W, 29700 Lumens
Dimensions of the Sunco 220W LED Linear High Bay. 26-inches long, 20.47-inches wide, 1.97-inches. Image shows the vents on the side of the fixture to allow for heat dissipation. Other technical specs: wattage 220W, brightness 30800 lumens, 100/277V, 50,000 hour lifespan. This LED linear high bay provides a streamlined, overhead area light that is fast to install and easily maintained. The LED is integrated so you won’t need to replace the bulb during the long lifetime of the light fixture.
Easy Install of the Sunco LED Linear High Bay. Install instructions are expanded in the user manual. Here are the basic steps: 1. Insert hook ends of V hook into slotted holes as shown. 2. Secure fixture to ceiling by looping chain onto screw eye hooks (not included). 3. Connect the supply wires by color to fixture wires in terminal caps. 4. Insert the terminal cap and wires into the driver box and secure terminal cap. Image shows line art of easy installation process.
Components of the 220W LED Linear High Bay. Image shows closeup of the light fixture with highlights of the Integrated LEDs, air vents for heat dissipation, V hook hangers for easy suspension on included hanging chains, and a frosted diffuser to soften harsh edge shadows. An optional motion sensor accessory is shown attached to the end of the high bay light fixture. This unit is sold separately. This hanging light fixture includes a wide beam angle 110-degrees.
Dimmability. Sunco’s linear high bay lights were built with a smooth dimming capability to enhance your control over the ambiance of your space. Image shows a gymnasium with a range of shaded to bright areas to simulate the dimmable quality of this area light. Sunco Linear High Bay lights are suspended overhead from the included chains and V hooks.
LED Linear High Bay, 2ft, 220W, 29700 Lumens
Lighting applications for the Linear High Bay. This instant on area light can be suspended from the included hanging chains to provide bright light in your exercise space or gym above workout machines, in your auto shop, or an airplane hangar or warehouse with a high ceiling. This fixture is dimmable via 1-10V dimming and also offers 30800 lumens of bright light for task lighting where you need it.
Sunco Lighting

LED Linear High Bay, 2ft, 220W, 29700 Lumens

HB_L2-220W-5K-1PKClick to Copy
$79.99

6 Reviews
  • Lumens : 29700LM
  • Wattage : 220W
  • Dimming : Dimmable
  • CRI : 80+
  • Moisture Rating : Damp Rated
  • Warranty : 7-Year
Read More
$79.99

Color Guide
Color Temperature Guide
Color Temperature Guide Color Temperature Guide
5000K
Color :
Occupancy Microwave Motion Sensor for Linear High Bay, Plug N Play
Occupancy Microwave Motion Sensor for Linear High Bay, Plug N Play
$19.99
$19.99
Notify Me When Available

Volume Discounts automatically applied for orders $500+

Free Shipping on orders $100+

Ships within 1 business day
Overview
Sunco 220W Linear High Bay LED light fixture is an area light fixture that comes with hanging chains and V hooks to suspend the light where it is needed for bright, task lighting. The fixture features durable construction and is dimmable with a high lumen count of 30800 lumens. This 220W LED has an 800W equivalency to reduce power consumption. It also offers a 50,000 hour lifespan and is an integrated LED light fixture to reduce maintenance.
Beam Spread. The 220W Linear High Bay LED light fixture offers illuminated coverage of varying beam spread depending on how high you hang the light from the ground. The image shows this area light suspended at three different heights. At 15 feet the light has a 38ft beam spread. At 20 feet the light has a 48 foot beam spread. At 30 feet the light has a 72 foot beam spread.
Easy Install. The damp rated Sunco Linear High Bay can be installed with chain mount, conduit (not included), and surface mount (not included). Image points out the features and installation options. There are knockouts on the fixture for an added, optional motion sensor accessory. A 1/2 inch gap between the light body and LED driver make for excellent heat dissipation, so do the air vents along the side of the LED fixture body.
Dimmable lighting. With 0-10V dimming, the DC voltage varies between 0 up to 10V to create the lowest dimming levels and scale the output of your LED light. A select list of dimmers is shown on this image. Customer service has the full dimmer list which is also available in our support tab. Sunco long-lasting LEDs use less power and have less harmful chemicals than traditional lighting options. With the Sunco Cares program we make charitable donations to worthy conservation organizations.
Install 220W instant on and 1-10Vdimmable area light fast with included chains.

Overview

Sunco 220W Linear High Bay LED light fixture is an area light fixture that comes with hanging chains and V hooks to suspend the light where it is needed for bright, task lighting. The fixture features durable construction and is dimmable with a high lumen count of 30800 lumens. This 220W LED has an 800W equivalency to reduce power consumption. It also offers a 50,000 hour lifespan and is an integrated LED light fixture to reduce maintenance.
Beam Spread. The 220W Linear High Bay LED light fixture offers illuminated coverage of varying beam spread depending on how high you hang the light from the ground. The image shows this area light suspended at three different heights. At 15 feet the light has a 38ft beam spread. At 20 feet the light has a 48 foot beam spread. At 30 feet the light has a 72 foot beam spread.
Easy Install. The damp rated Sunco Linear High Bay can be installed with chain mount, conduit (not included), and surface mount (not included). Image points out the features and installation options. There are knockouts on the fixture for an added, optional motion sensor accessory. A 1/2 inch gap between the light body and LED driver make for excellent heat dissipation, so do the air vents along the side of the LED fixture body.
Dimmable lighting. With 0-10V dimming, the DC voltage varies between 0 up to 10V to create the lowest dimming levels and scale the output of your LED light. A select list of dimmers is shown on this image. Customer service has the full dimmer list which is also available in our support tab. Sunco long-lasting LEDs use less power and have less harmful chemicals than traditional lighting options. With the Sunco Cares program we make charitable donations to worthy conservation organizations.
Install 220W instant on and 1-10Vdimmable area light fast with included chains.

Details

● EASY INSTALL & OPERATION - Easily install this 220W rectangular High Bay fixture via the included hanging chain and V hooks. Generates instant, flicker-free, bright task lighting in your warehouse, workshop, gymnasium, or industrial space.

● DIMMABLE & WIDE BEAM SPREAD - With seamless dimming capabilities (1-10V), our LED High Bay provides maximum eye comfort and effectiveness. 400W/500W/600W equivalent with a 90° beam angle for wide coverage.

● COMMERCIAL GRADE – Featuring durable metal housing, our High Bay replaces outdated 600W HID fixtures to improve energy efficiency and savings. Suitable for dry or damp locations.

● MOTION SENSOR COMPATIBLE - Use Sunco's Microwave Motion Sensor to further reduce wattage consumption, detect movement, and automatically illuminate your LED Linear High Bay.

● CERTIFIED PRODUCT - We uphold the highest standards by testing each product for optimal performance and safety. This light fixture is UL and DLC-certified.

●BENEFITS - 7-year warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.

ul1es us


Specifications

LED Linear High Bay, 2ft, 220W, 29700 Lumens Specifications Download Specs
Lumens 29700LM
Efficacy 140LM/W
Wattage 220W
Wattage Equivalency 800W
Voltage 120-277V
Operating Temperature -40°F-113°F
Dimmable Dimmable
Dimming Details 0-10V Dimming
Color Temperature 5000K
CRI 80+
Beam Angle 110°
Moisture Rating Damp Rated
Included Components Linear High Bay Fixture, x2 V Hook, x2 Linked Chain
Power Type Hardwired
Mount Type Hanging
Sensor Details Add a Microwave Sensor Accessory to create motion sensor settings
Pull Chain No
Material Aluminum
Class Dimming (Isolated, Class 2), Output Driver (Non-Class 2)
Certifications UL, DLC
Switching Cycles 50,000
Lifetime 50,000 Hours
Warranty 7-Year
