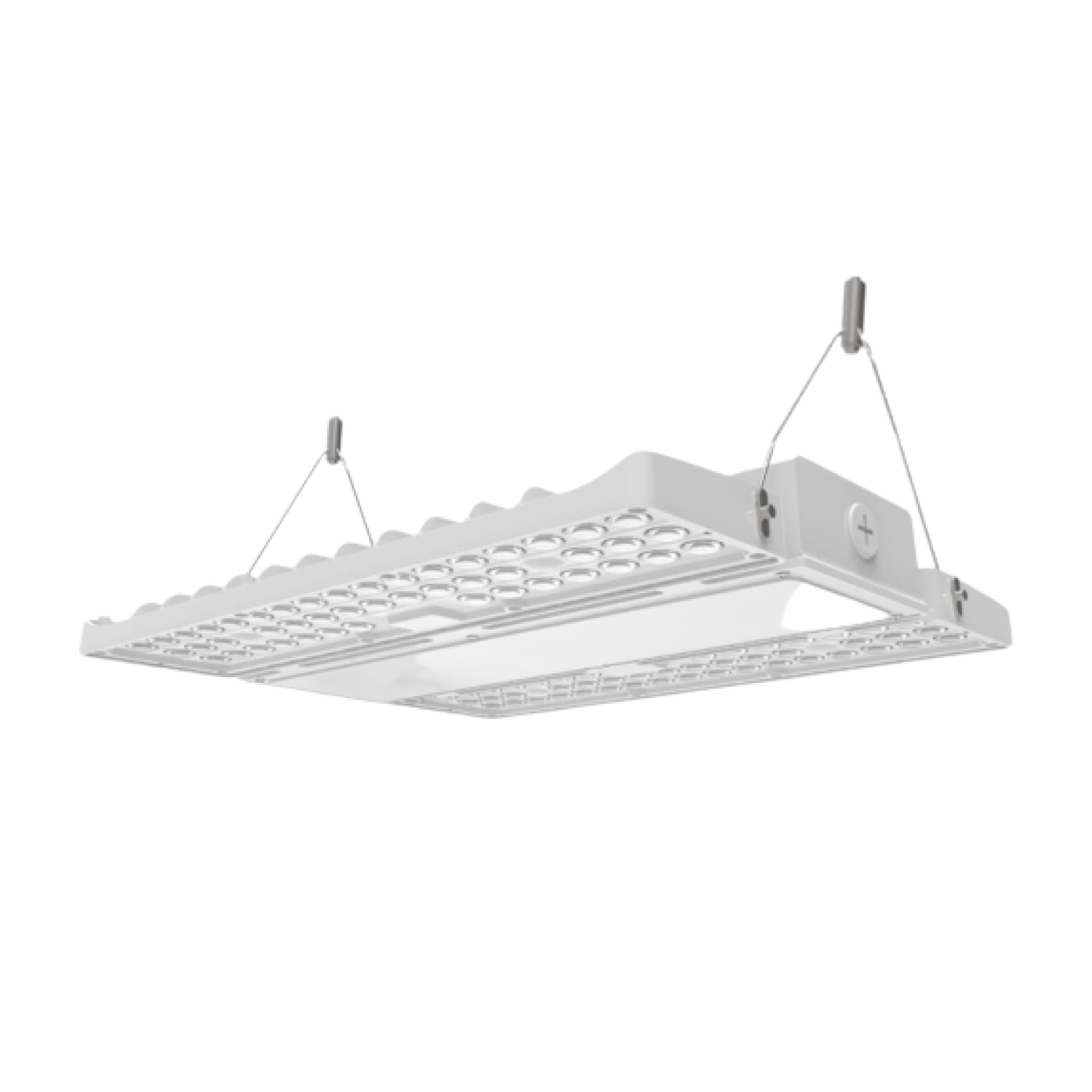

LED Linear High Bay, 1.2ft, 210W/180W/155W, 120-277V, Seneca, Selectable Wattage & CCT, 31500 Lumens
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayThis selectable wattage and CCT LED linear high bay is designed to revolutionize your lighting experience. Its wattage options ranging from 155W to 210W allow you to brighten even the darkest areas. With a compact size of 1.2ft, it replaces traditional 2ft and 4ft linear high bays. More power. Less size. And with its 0-10V dimming feature, you have complete control to improve energy usage and create desired lighting levels. Upgrade your space with this linear high bay for commercial spaces.
Features

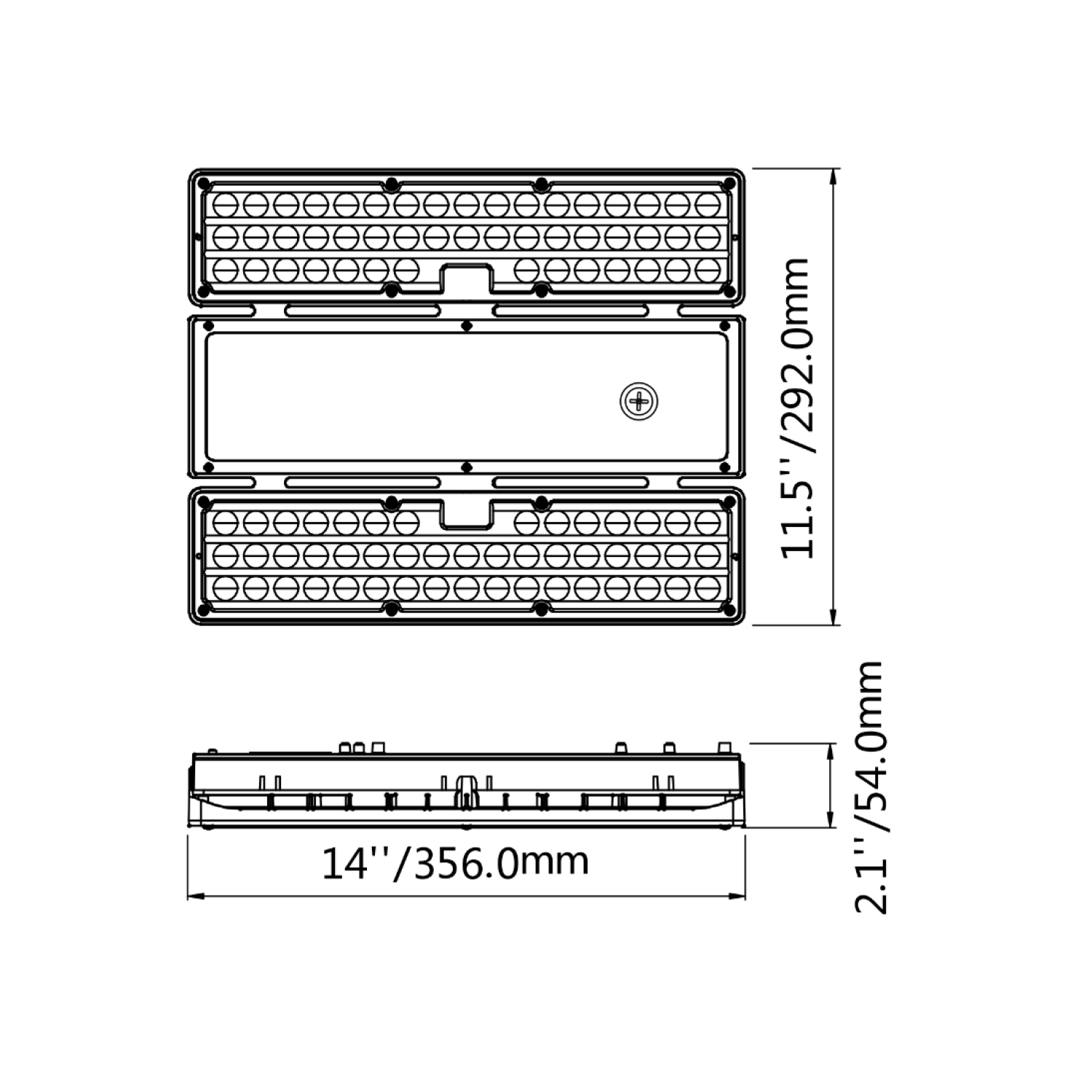

- Compact size is able to replace 2ft and even 4ft LED linear high bays
- High input voltage
- 3 selectable wattages (brightness):
- 155W = 23250 lumens
- 180W = 27000 lumens
- 210W = 31500 lumens
- 2 color temperature switches:
- 4000K cool white
- 5000K daylight
- Die-cast aluminum housing heatsink design to maximize cooling performance

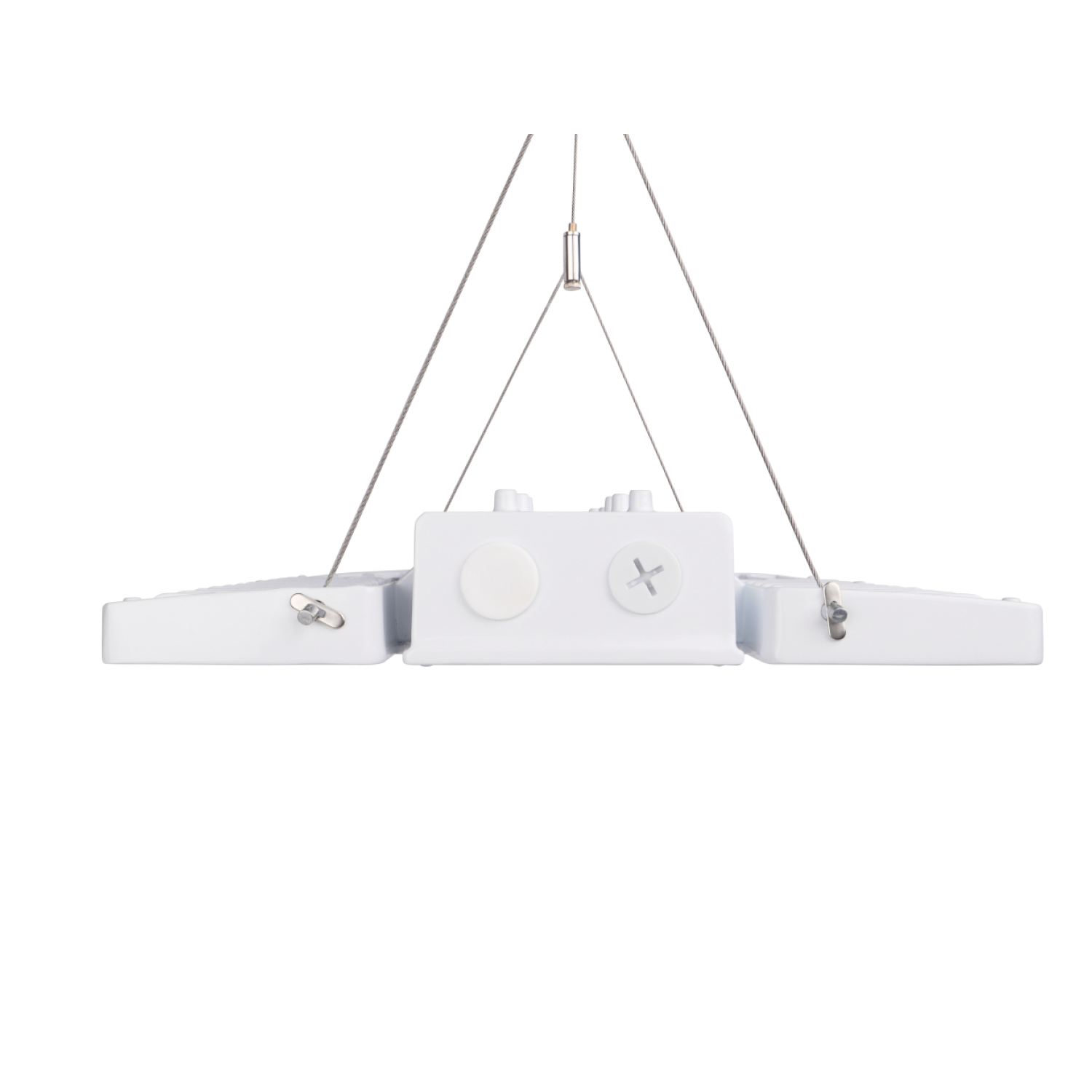

- Suspended mounting cables included
- 0-10V dimming capabilities (0%-100%)
- 50,000-hour lifespan
- UL, CE, RoHS, and DLC 5.1 Certified
- 5-year manufacturer's warranty
Recommended Applications
-
Large warehouses
- Retail applications
- Commercial buildings
- Work areas
Overview
This selectable wattage and CCT LED linear high bay is designed to revolutionize your lighting experience. Its wattage options ranging from 155W to 210W allow you to brighten even the darkest areas. With a compact size of 1.2ft, it replaces traditional 2ft and 4ft linear high bays. More power. Less size. And with its 0-10V dimming feature, you have complete control to improve energy usage and create desired lighting levels. Upgrade your space with this linear high bay for commercial spaces.
Features
- Compact size is able to replace 2ft and even 4ft LED linear high bays
- High input voltage
- 3 selectable wattages (brightness):
- 155W = 23250 lumens
- 180W = 27000 lumens
- 210W = 31500 lumens
- 2 color temperature switches:
- 4000K cool white
- 5000K daylight
- Die-cast aluminum housing heatsink design to maximize cooling performance
- Suspended mounting cables included
- 0-10V dimming capabilities (0%-100%)
- 50,000-hour lifespan
- UL, CE, RoHS, and DLC 5.1 Certified
- 5-year manufacturer's warranty
Recommended Applications
-
Large warehouses
- Retail applications
- Commercial buildings
- Work areas
Details
● EASY INSTALL & OPERATION - Easily install this selectable wattage linear High Bay fixture via the included suspended mounting kit. Generates instant, flicker-free, bright task lighting in your warehouse, workshop, gymnasium, or industrial space.
● DIMMABLE - With seamless dimming capabilities (0-10V), our LED High Bay provides maximum eye comfort and effectiveness.
● CERTIFIED PRODUCT - We uphold the highest standards by testing each product for optimal performance and safety. This light fixture is UL, CE, RoHS and DLC-certified.
● BENEFITS - 5-year manufacturer's warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.
Specifications
| LED Linear High Bay, 1.2ft, 210W/180W/155W, 120-277V, Seneca, Selectable Wattage & CCT, 31500 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 23250 - 31500LM |
| Efficacy | 150LM/W |
| Wattage | 155W / 180W / 210W |
| Voltage | 120-277V |
| Operating Temperature | -40°F - 122°F |
| Dimmable | Dimmable |
| Dimming Details | 0-10V Dimming |
| Color Temperature | 4000K, 5000K |
| CRI | 80+ |
| Beam Angle | 105° |
| Power Type | Hardwired |
| Mount Type | Hanging |
| Material | Die-Cast Aluminum |
| Certifications | UL, CE, RoHS, DLC 5.1 |
| Lifetime | 50,000 Hours |
| Warranty | 5-Year Manufacturer's Warranty |
