150W Stainless Steel Low Voltage Landscape Transformer, 12-15V

The TRFLT150 is a 150W single circuit, multi-tap low voltage transformer housed in a top grade 304 stainless steel NEMA 3R enclosure, designed for outdoor landscape and LED lighting systems. It steps down 120V primary power to selectable secondary outputs of 12V, 13V, 14V, or 15V, and is ETL listed to UL1838 safety standards. The fully encapsulated TOROID core Class 1 transformer features a high performance magnetic circuit breaker, thermal shut-off, and a 6-foot water resistant power cord. Available configurations include a mechanical timer, digital timer, and photocell; inclusion follows the selected options. It carries a limited manufacturer's warranty.

 Features

• • 150W single circuit transformer with multi-tap secondary voltage outputs of 12V, 13V, 14V, and 15V for flexible landscape lighting system design

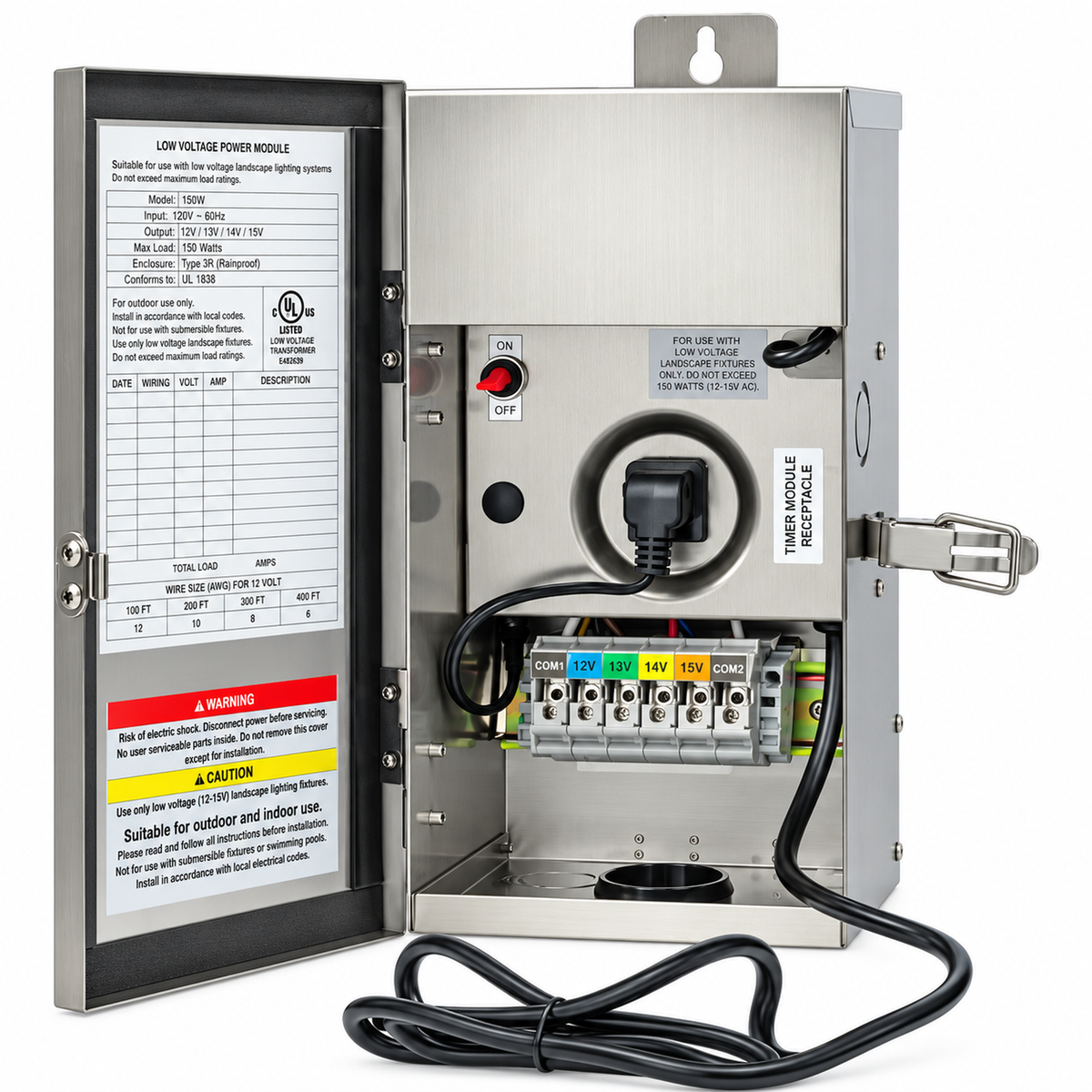

  • Top grade 304 stainless steel NEMA 3R enclosure for outdoor installation, with easy removable hinged cover door and moisture resistant gasket
  • ETL listed to U.S. safety standards for landscape lighting transformers (UL1838)
  • 6-foot heavy gauge grounded and water resistant power cord with molded plug; power cord routes through an open hatch on the right side of the enclosure
  • High performance magnetic circuit breaker provides secondary protection and doubles as an on/off rocker switch; thermal shut-off provides primary protection
  • Oversized wiring terminal block supports multiple low voltage cable connections; removable bottom plate with pre-punched knockouts for 3x½" or 3x¾" conduits and 1x1¾" cable feeder
  • Mounting slots on top and bottom allow quick wall mounting without templates; bottom of enclosure should be at least 12" above finish floor
  • Compatible with low-voltage (12V) magnetic dimmer switches and controls; ACCDIM-100 use requires a suitable 12–15V AC tap and a compatible 4–12V DC voltage-dimmable load, within the dimmer's 100W rating and maximum 10A input current. Dimming range depends on the connected source and load.
  • Control options include 24-hour mechanical timer, digital timer, and photocell; inclusion follows the selected options

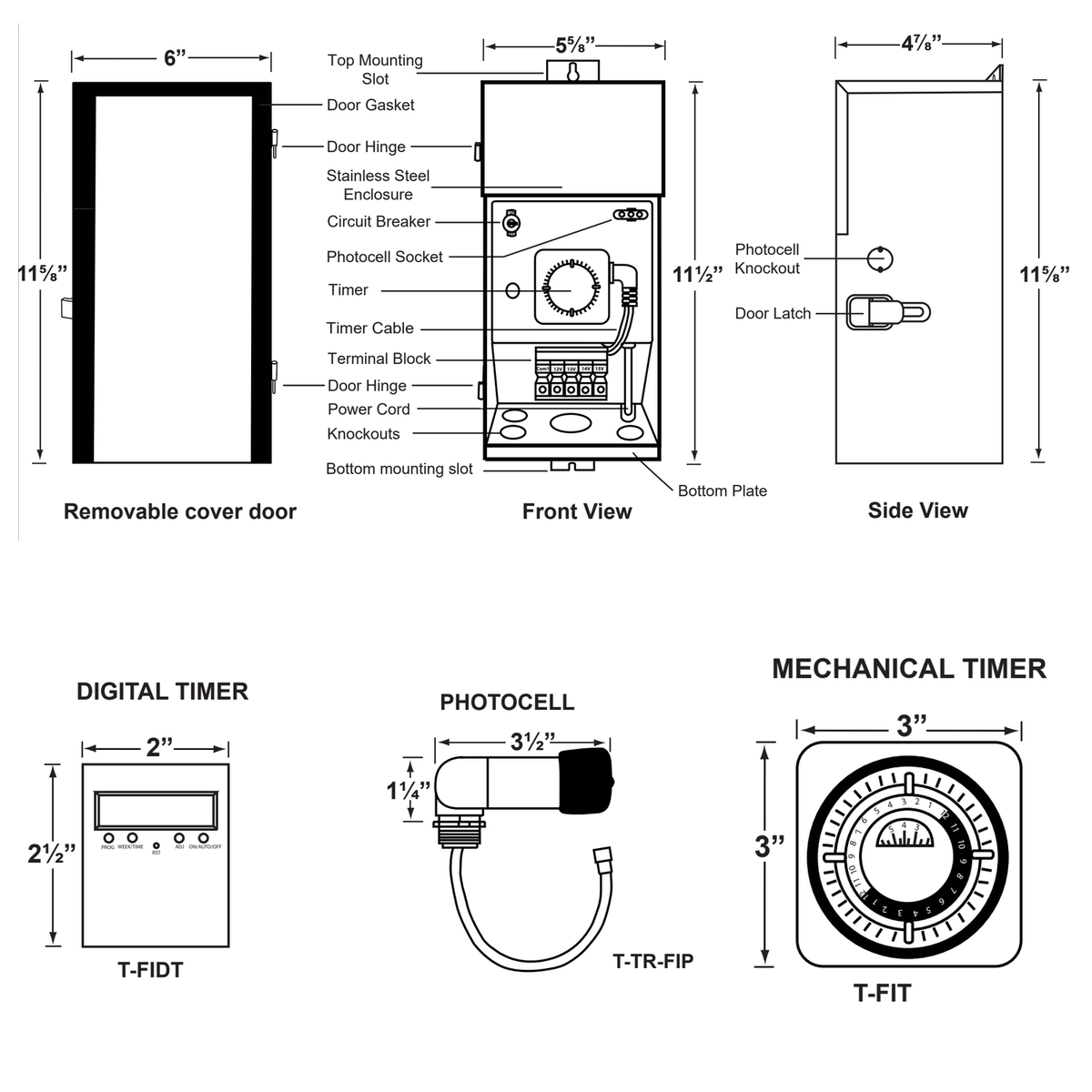

  • Enclosure front: 5⅝" W x 11½" H; general product dimensions: 6" W x 11⅝" H x 4⅞" D; gross weight 13 lbs
  • Warranty: Limited manufacturer's warranty
