3-Louver Step Light, Recessed, 4 Inch, Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

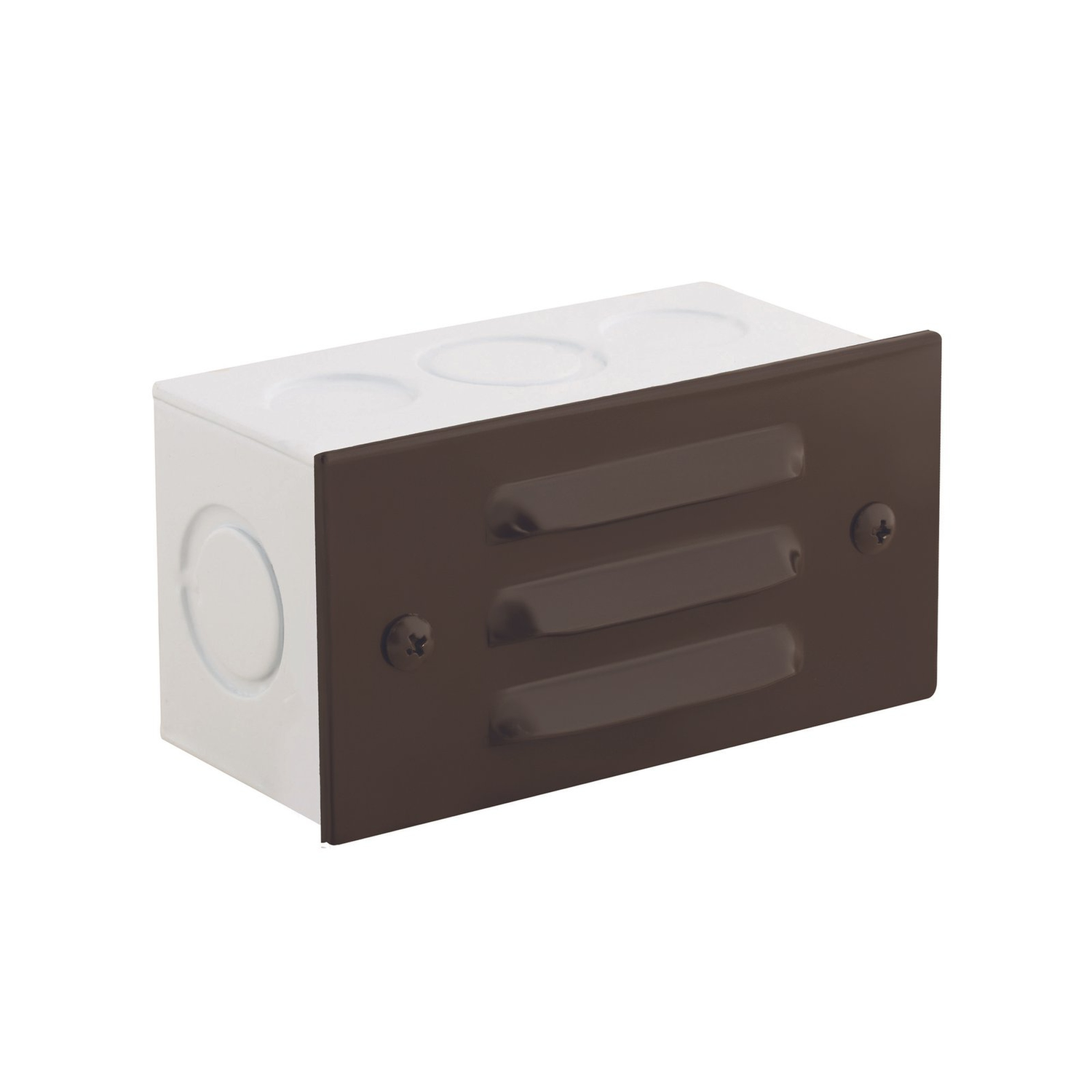

This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver step light for step and brick installations; bronze finish
- Stamped aluminum faceplate with polyester UV coating; high-impact white polycarbonate lens
- Faceplate dimensions: 4-3/8" W x 2-1/4" H
- 12V electrical system; LED operating range 8–21V; requires remote 12V transformer
- Supports up to 18W SCB bayonet lamps; includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K
- Prewired with 12" direct-burial cord; silicone gasket for watertight protection
- Surface mount supplied
- 5-year limited fixture warranty; 5-year limited LED lamp warranty
This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver step light for step and brick installations; bronze finish
- Stamped aluminum faceplate with polyester UV coating; high-impact white polycarbonate lens
- Faceplate dimensions: 4-3/8" W x 2-1/4" H
- 12V electrical system; LED operating range 8–21V; requires remote 12V transformer
- Supports up to 18W SCB bayonet lamps; includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K
- Prewired with 12" direct-burial cord; silicone gasket for watertight protection
- Surface mount supplied
- 5-year limited fixture warranty; 5-year limited LED lamp warranty
Overview
This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver step light for step and brick installations; bronze finish
- Stamped aluminum faceplate with polyester UV coating; high-impact white polycarbonate lens
- Faceplate dimensions: 4-3/8" W x 2-1/4" H
- 12V electrical system; LED operating range 8–21V; requires remote 12V transformer
- Supports up to 18W SCB bayonet lamps; includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K
- Prewired with 12" direct-burial cord; silicone gasket for watertight protection
- Surface mount supplied
- 5-year limited fixture warranty; 5-year limited LED lamp warranty
Specifications
| 3-Louver Step Light, Recessed, 4 Inch, Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-3/8" W x 2-1/4" H |
| Finish | Bronze |
| Material | Stamped aluminum lensed faceplate with polyester UV coating; high-impact white polycarbonate lens; white powder-coated steel recessed box |
| Lifetime | 25,000 Hours |
| Warranty | 5-year limited warranty on stamped aluminum fixture housing; Five (5) years limited warranty on LED module |
