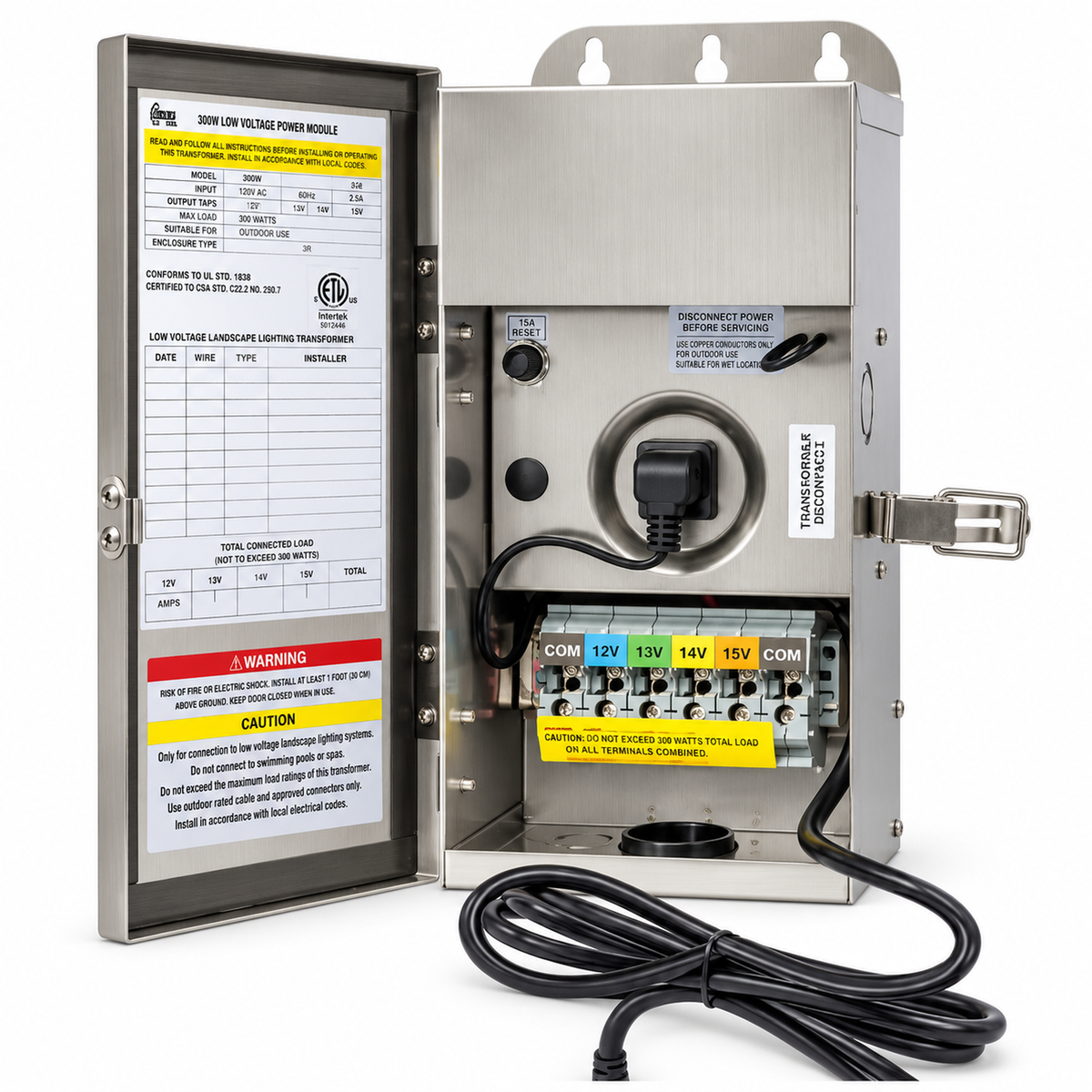

Open silver transformer enclosure with a reset button, a terminal block and a coiled cord

300W Stainless Steel Multi-Tap Landscape Transformer, 12-15V

Yes / Digital Timer
$341.99
$341.99
Skip to product information
Open silver transformer enclosure with a reset button, a terminal block and a coiled cord
  • Open silver transformer enclosure with a reset button, a terminal block and a coiled cord

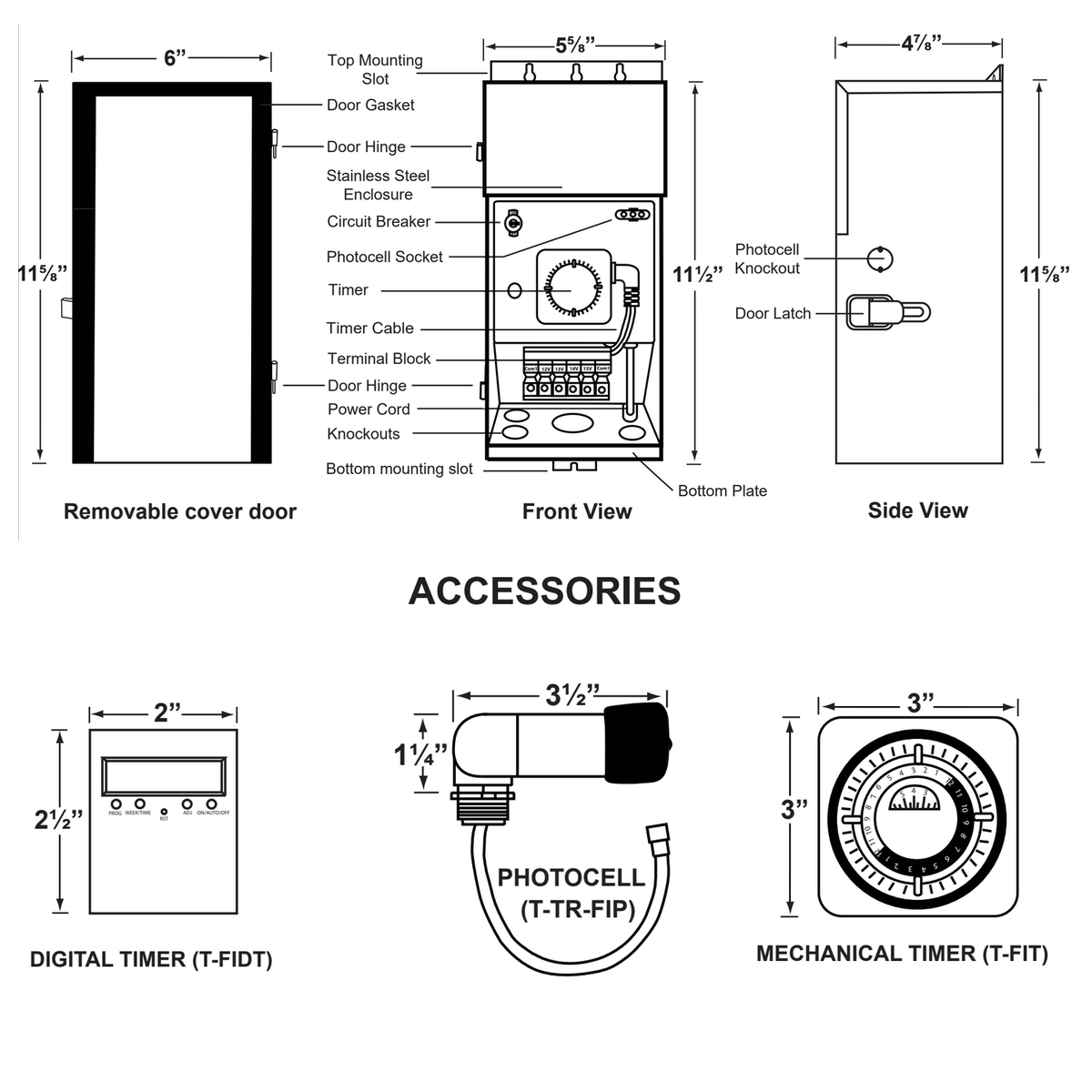

  • Technical dimension diagram of a digital timer thermostat with front, side, and accessory views, including measurements and labels for the removable cover door, photocell, digital timer, and mechanical timer.
  • A black-and-white technical diagram sheet titled '12 VOLT CABLE LAYOUT OPTIONS' showing four installation methods: loop installation, split load installation, straight run installation, and T installation, with small schematic diagrams and explanatory text.
300W Stainless Steel Multi-Tap Landscape Transformer, 12-15V

300W Stainless Steel Multi-Tap Landscape Transformer, 12-15V

SKU:
$341.99
$341.99

Bulk Savings

automatically applied on carts over $500 - Learn more

Wattage300W
Voltage120V
LocationWet Rated
WarrantyLimited manufacturer's warranty
Read more
Wattage300W
Voltage120V
LocationWet Rated
WarrantyLimited manufacturer's warranty
Photocell Sensor: Yes
Timer: Digital Timer
Item Total: $341.99 Add 2 products to unlock volume savings.

Volume pricing

Large Volume Quote Request

Commercial order support

Volume discounts automatically apply at checkout when the combined total value of all products in your cart exceeds $500.

Please provide the SKU and quantity for each item you’d like included in the quote.

Automatic volume discounts

SPEND SAVE
$500 - $9995%
$1,000 - $1,99911%
$2,000 - $2,99912%
$3,000 - $3,99913%
$4,000 - $4,99914%
$5,000 - $5,99915%
$6,000 - $6,99916%
$7,000 - $7,99917%
$8,000 - $8,99918%
$9,000 - $9,99919%
$10,000 - $19,99920%
$20,000 - $49,99925%
Over $50,00030%

*Discounts apply to all products; rates may vary by product.

Live Chat

Free Shipping on orders $100+
Ships within 1 business day

Overview

This is a 300W single-circuit, multi-tap low voltage landscape lighting transformer housed in a top-grade 304 stainless steel NEMA 3R enclosure. It operates on 120V primary input and delivers selectable secondary output of 12V, 13V, 14V, or 15V through a fully encapsulated TOROID core. It is ETL listed to UL1838. The transformer features a moisture-resistant hinged cover door, oversized terminal block, and a 6-foot grounded water-resistant power cord, with timer and photocell inclusion determined by the selected options. It carries a limited manufacturer's warranty.



 Features

    • 300W single circuit transformer with multi-tap secondary voltage output of 12V, 13V, 14V, or 15V for flexible landscape lighting system design
    • Fully encapsulated TOROID core with top grade 304 stainless steel NEMA 3R enclosure for superior outdoor durability
    • ETL listed to UL1838 U.S. safety standards for landscape lighting transformers
    • Easy removable stainless steel hinged cover door with moisture-resistant gasket for convenient installation access
    • Oversized wiring terminal block supports multiple low voltage cable connections; removable bottom plate with prepunched knockouts (4x½" or 4x¾" conduits and 1x1¾" cable feeder)
    • 6-foot heavy gauge grounded and water-resistant power cord with molded plug; mounts at least 12" above finish floor
    • High performance magnetic circuit breaker for secondary protection, also functions as on/off rocker switch; thermal shut-off for primary protection
    • Compatible with low-voltage (12V) magnetic dimmer switches and controls; ACCDIM-100 use requires a suitable 12–15V AC tap and a compatible 4–12V DC voltage-dimmable load, within the dimmer's 100W rating and maximum 10A input current. Dimming range depends on the connected source and load.
    • Control options include: Dusk to dawn photocell, field-installed mechanical plug-in timer, and field-installed digital plug-in timer; inclusion follows the selected options
    • Warranty: Limited manufacturer's warranty

Specifications

Brand NSL
Wattage 300W
Voltage 120V
Output Voltage 12V, 13V, 14V, 15V VDC
Selectable Details Secondary voltage selectable: 12V, 13V, 14V, or 15V via terminal block tap selection
IP Rating NEMA 3R
Moisture Rating Wet Rated
Trim Color Stainless Steel
Components Transformer enclosure, 6-ft power cord with molded plug, terminal block, circuit breaker, photocell socket with jumper, mounting hardware (anchor bolts and screws)
Power Type Wall Plug-in
Mount Type Wall
Dimensions 6½" W x 11⅝" H x 4⅞" D
Finish Stainless Steel
Housing Top grade 304 stainless steel, NEMA 3R enclosure with moisture-resistant hinged cover door and gasket
Material 304 Stainless Steel
Compliance California Proposition 65 Warning: contains chemicals known to cause cancer and birth defects
Class Class 1 Transformer
Certifications ETL listed to UL1838
Warranty Limited manufacturer's warranty
