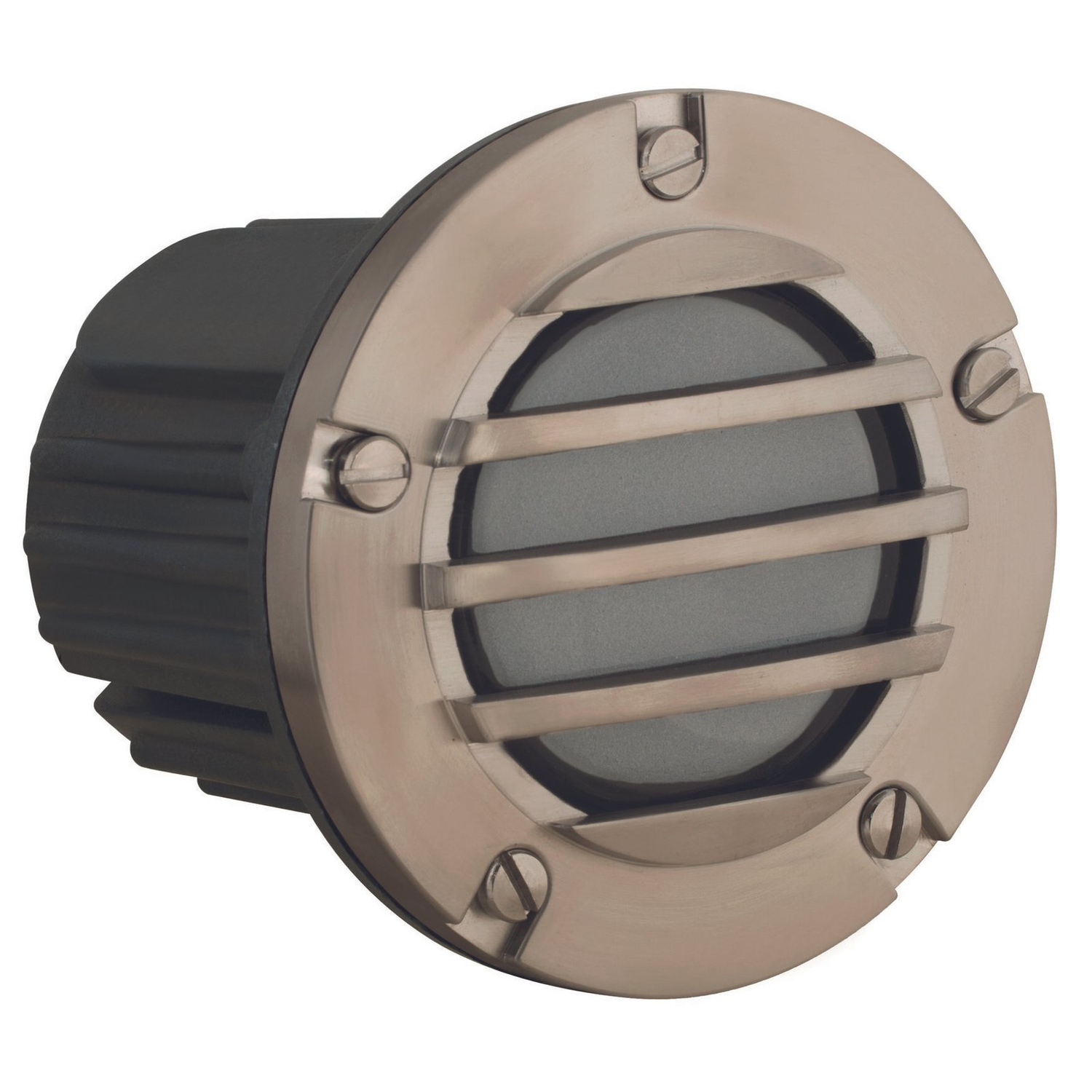

316 Marine-Grade Stainless Steel 3-Louver Glass Lens Step Light, In-Ground, 5 Inch, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This 316 marine-grade stainless steel faceplate and composite housing 3-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- 316 marine-grade stainless steel faceplate for long-term corrosion resistance
- Injection-molded composite housing with high UV stability
- Weather-tight construction with silicone O-ring gasket
- Frosted, heat-resistant flat glass lens
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Surface-mount hooded step light for recessed wall installation
- Use only with low-voltage landscape power units (15V max, 25A)
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, dimmable, COB LED construction, 60° beam angle, 50,000-hour rated life
- ETL listed; operating temperature -22°F to 122°F
- Dimensions: approx 4-7/8" Dia x 4-7/8" L
This 316 marine-grade stainless steel faceplate and composite housing 3-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- 316 marine-grade stainless steel faceplate for long-term corrosion resistance
- Injection-molded composite housing with high UV stability
- Weather-tight construction with silicone O-ring gasket
- Frosted, heat-resistant flat glass lens
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Surface-mount hooded step light for recessed wall installation
- Use only with low-voltage landscape power units (15V max, 25A)
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, dimmable, COB LED construction, 60° beam angle, 50,000-hour rated life
- ETL listed; operating temperature -22°F to 122°F
- Dimensions: approx 4-7/8" Dia x 4-7/8" L
Overview
This 316 marine-grade stainless steel faceplate and composite housing 3-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- 316 marine-grade stainless steel faceplate for long-term corrosion resistance
- Injection-molded composite housing with high UV stability
- Weather-tight construction with silicone O-ring gasket
- Frosted, heat-resistant flat glass lens
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Surface-mount hooded step light for recessed wall installation
- Use only with low-voltage landscape power units (15V max, 25A)
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, dimmable, COB LED construction, 60° beam angle, 50,000-hour rated life
- ETL listed; operating temperature -22°F to 122°F
- Dimensions: approx 4-7/8" Dia x 4-7/8" L
Specifications
| 316 Marine-Grade Stainless Steel 3-Louver Glass Lens Step Light, In-Ground, 5 Inch, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 4-7/8" length |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel faceplate; injection molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on stainless steel fixture housing, Five (5) years limited warranty on LED module |
